8
WING ASSEMBLY

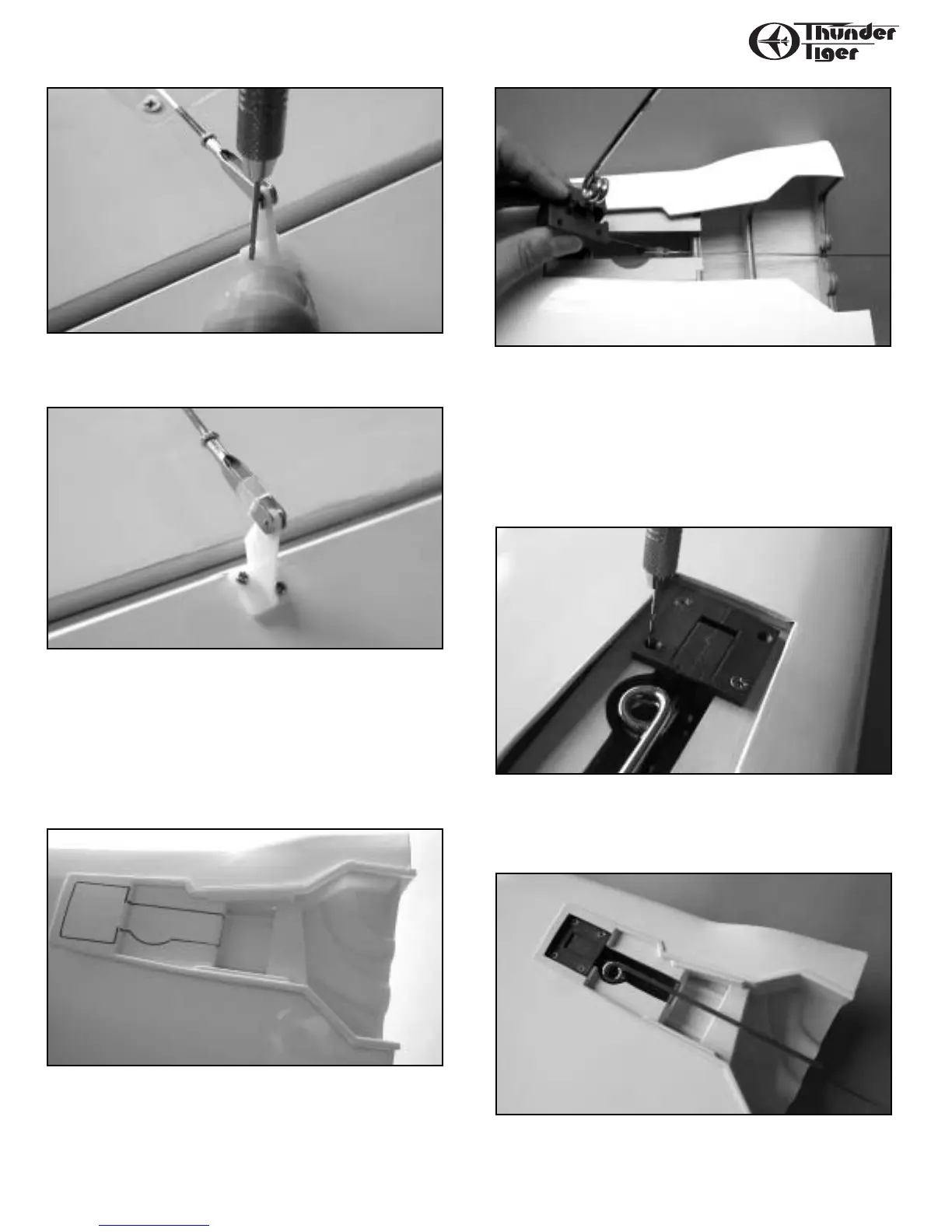

7. Install the control horn and aileron pushrod with metal
clevis.Drill 5/64" (2mm) holes to secure the control horn.
8. Please note that the aileron is thick;carefully drill the holes
and make sure the backplate is flash with the hinge line at
the other side of Aileron.Secure the control horn in place
with 2x22mm machine screws and M2 nut.Trim away the
excess screw from the backplate. Repeat the same
procedure on the other wing and plug the other servo wire
to CH6 and set up Flapron.
9. Locate the plastic retract well;trim alone with the molded
line first and trial fit it in place.Use marker to draw cutting
lines as shown,you may use the other side of the retract as
guide to draw the line.
10.Remove the plastic retract well,place the retract gear with
the pushrod installed (metal clevis and M2 nut). Before
installing the Retract Gear,it may be wise to apply epoxy
to reinforce the mounting area. Shall you choose to install
another aired Retract Gear , then a modification of this
mounting area might be required. Check and tighten the
set screws on the retract leg.
11.Drill 5/64"(2mm) holes on the retract mount. Next secure
the retract in place with four 3x16mm Flat Head Wood
Screw.
12.Glue the plastic retract well in place with CA, trim the
plastic well at the wing root so the plastic well is leveled
with the root surface.
