THUNDER TIGER TTR4571 User Manual

5

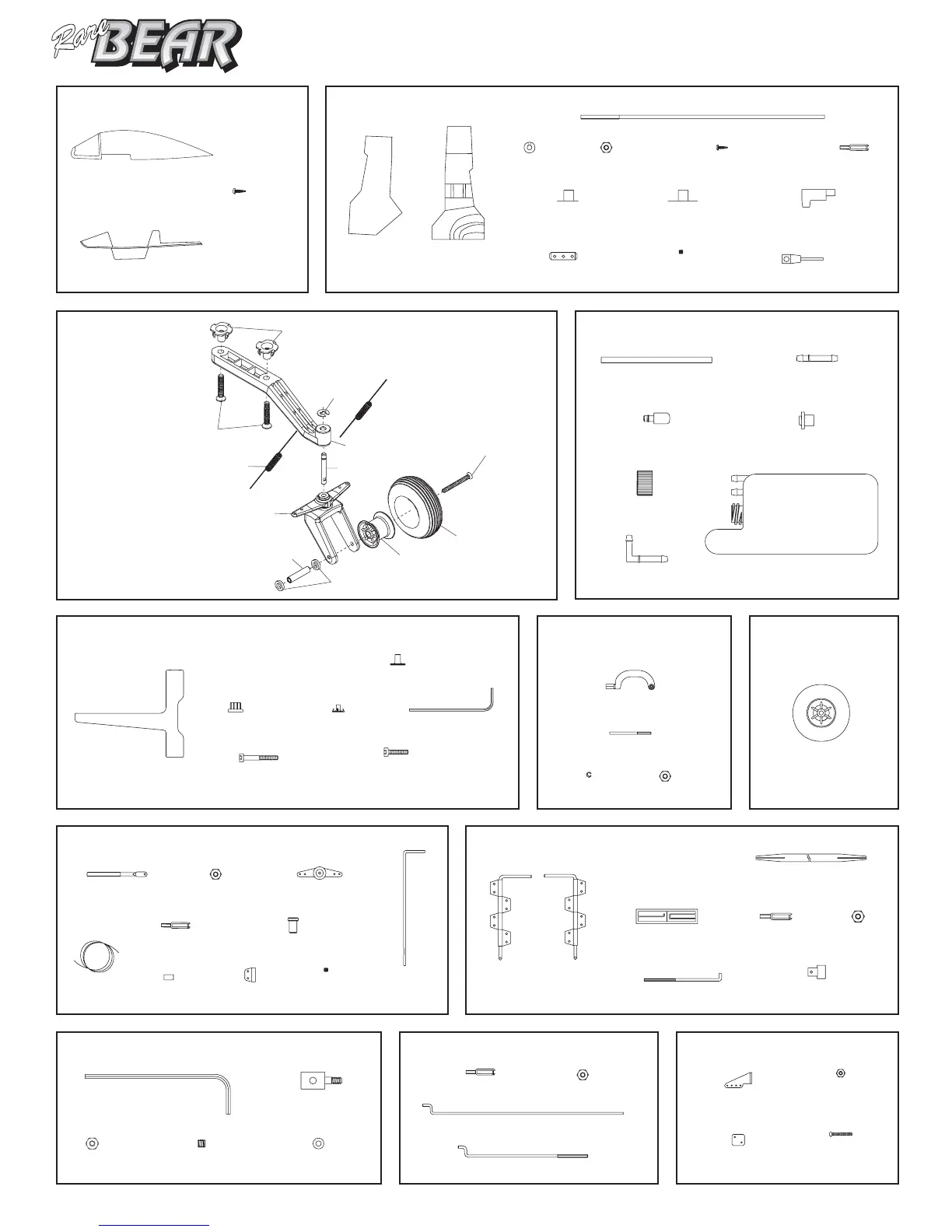

PARTS DRAWINGS
AS6294 Canopy & Cockpit
AS6298 Rudder Linkage Set
No.3258 Wheel
No.3012 Anti Vibration Engine Mount
No. 3015
Scale Tail Gear
PE0009 Hardware Set
No.3023 Retract
Servo Link
Throttle Pushrod(1)
Cockpit(1)
Clevis(2)
Hex Wrench(1)
Z-Bend Aileron Pushrod(2)
Brass Tube(4)
Wheel(2)
No. 3265 Fuel Tank
Hex Wrench(1)
EZ Connector(1)
M2 Nut(1) 3x3mm Set Screw(1) M2 Washer(1)
AS6297 Elevator Linkage Set
Rudder
Torque Rod
Upper Door
Retainer B(2)
Collar(2)
Wheel Well
(L/1, R/1)
Retract Door
(L/1, R/1)
Elevator Torque Rod
(L/1, R/1)
Threaded Pushrod(3)
Pushrod End Retainer(1)
Torque Rod Link(2)
Elevator Wood Pushrod(1)
Clevis(3) M2 Nut(3)
2x22mm
Screw(4)
3x3mm
Set Screw(8)
AS6295 Retract Decoration
5 x 40mm
Socket Screw(4)
Crank Weight (1)
90-degree Nipple (1)
Tank (1)
Fuel Stopper (1)
Fuel Cap (1)
Silicone Tube(1) Straight Nipple (1)
480cc (16oz.)
3x3mm
Set Screw(1)
Retract Servo Link(2)
Pushrods(2)
E Clip(2)
Backplate(2)
Control Horn(2)
M2 Nut(4)
AS6299 Pushrod Set AS6300 Control Horn
Blind Nut(2, Installed
in the Fuse.)
Canopy(1)
2x5mm Wood Screw(4)
Clevis(4) Tail Gear Collar(1)
Threaded End(4) M2 Nut(4)
Hinge(2)
Wire(1)
Steering Horn(1)
M2 Nut(2)
Lower Door Retainer(2)
Eng Mounting Screw
6/32 x 20mm(4)
4 x 20mm(4)
Blind Nut(4)Rubber(8)
T Washer(8)
Mounting Beam(2)
Pushrod Coupler(2)
Clevis(2)
Wheel Axel(2)
Pushrod(2)
Upper Door
Retainer A(2)
Tail Gear(1)
4mm x 20mm
Sink Head Screw
Spring (2)
E Clip(1)
Steering Shaft(1)
Steering Fork(1)
2.6mm x 26mm
Sink Head Screw(1)
Tire(1)
Tail Wheel(1)
Plastic Washer(2)
Wheel Spacer(1)
M2 Nut(2)
M2 Nut(2)
2x5mm Wood Screw(6)
