OPERATING MANUAL 2. PRODUCT DESCRIPTION

ThyssenKrupp Aufzugswerke GmbH 

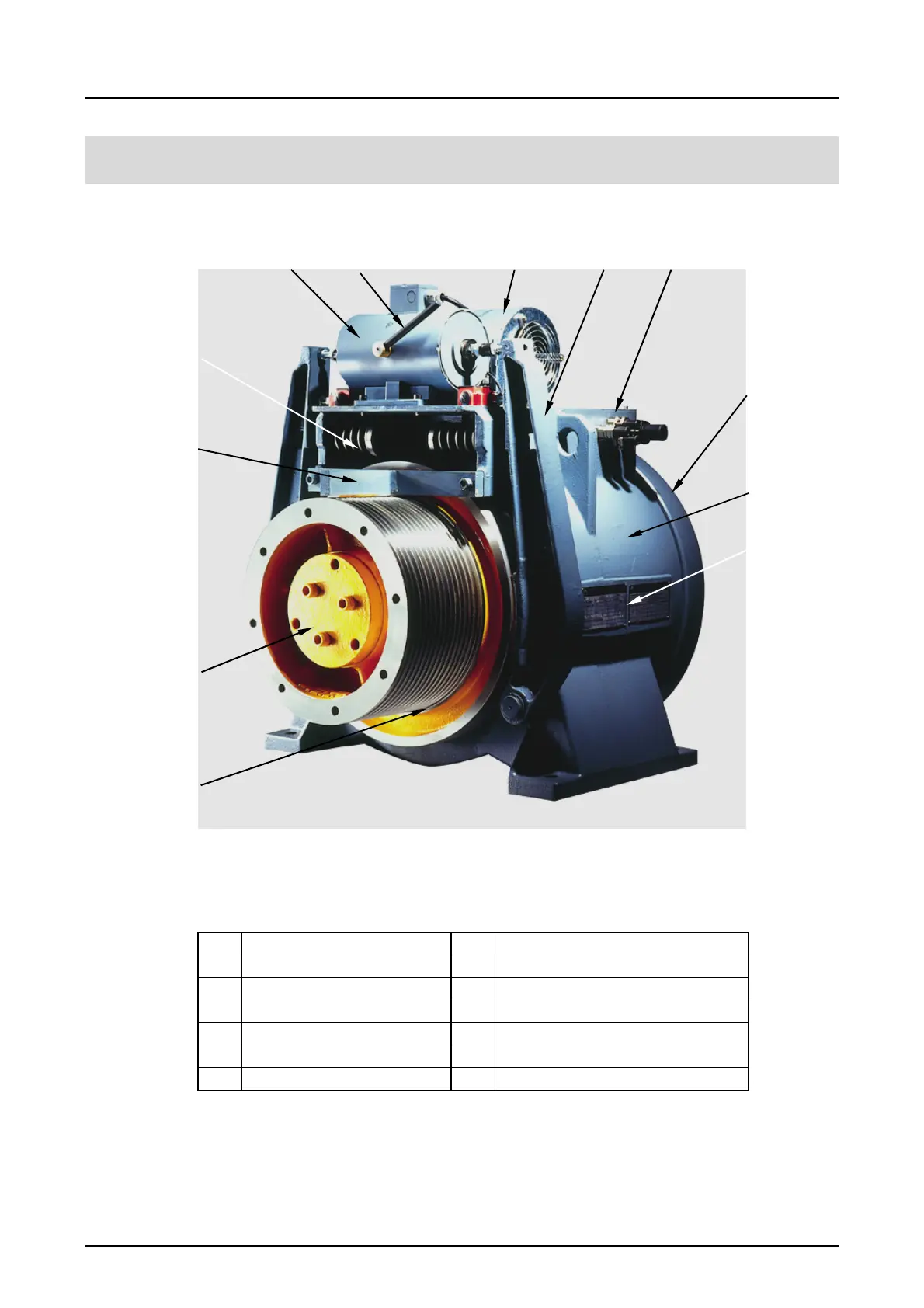

2.1 Description machine DAF 330

The machine consists of:

Pos.

Part designation Pos

Part designation

1 Brake release magnet

7 Casing

2 Brake release lever 8 Motor and name plate

3 Forced ventilation 9 Traction- brake- sheave

4 Brake shoes 10 Disk on motor shaft

5 Terminal box 11 Rope fixing beam

6 Bearing bracket 12 Brake spring



7

2

12

Fig.3

Version 02/2009

DAF330
