OPERATING MANUAL 2. PRODUCT DESCRIPTION

ThyssenKrupp Aufzugswerke GmbH

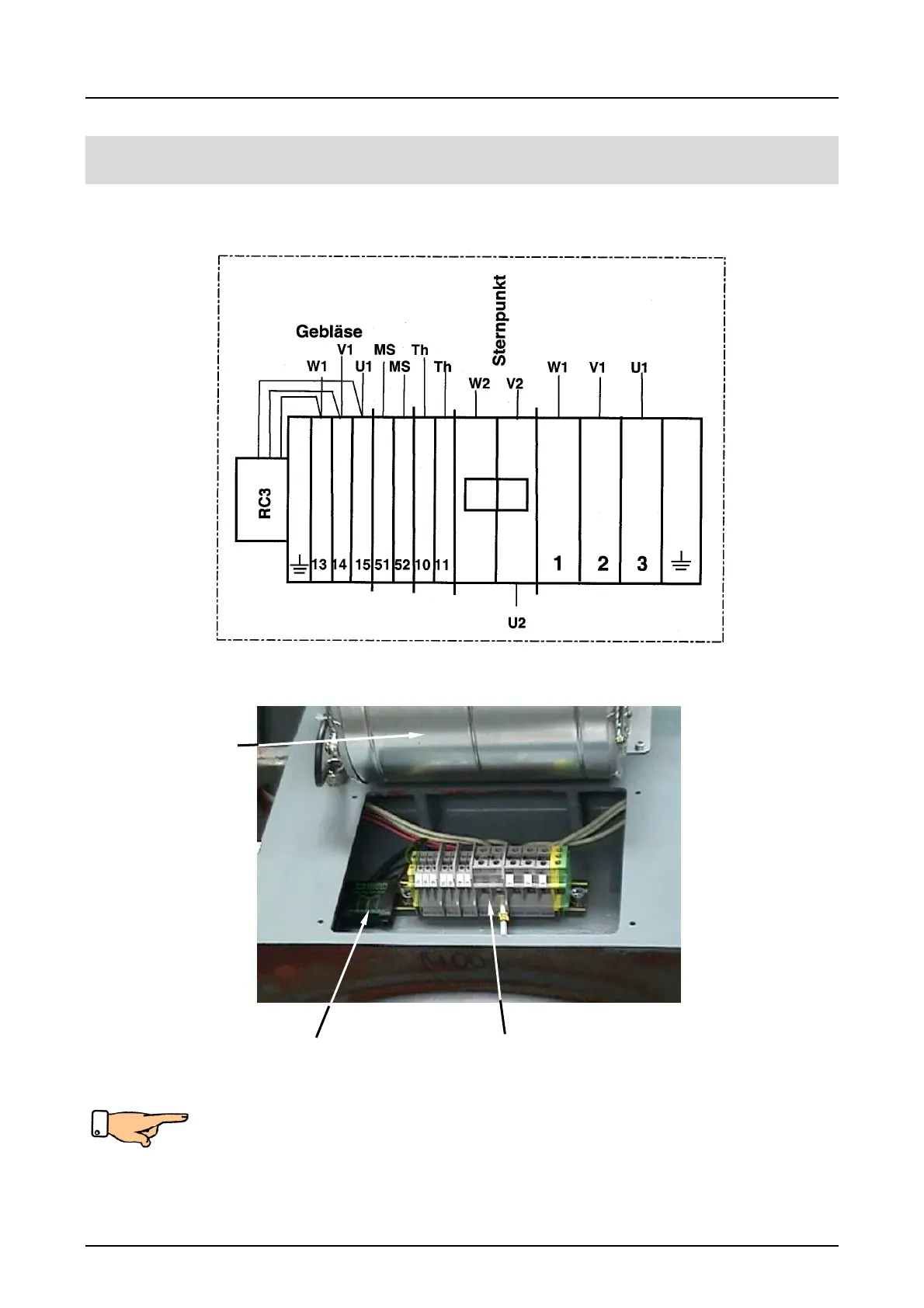

2.9 Terminal diagrams DAF330

Motor connection terminal diagram

for VVVF motors:

The terminal diagram is specified on the inside cover

Note: observe direction of rotation.

Connect the fan in such a way that it takes in the airflow which is then

blown through the motor.

See direction of arrow on fan side where air is taken in.

Fig. 6

Fan Star point



Fig. 7

Forced

ventilation



Connection terminals for motor,

temperature monitoring and forced

ventilation

Interference

filter

Version 02/2009

DAF330
