Owner’s Manual
E2010 THYSSENKRUPP ELEVATOR Printed in USA February, 2010

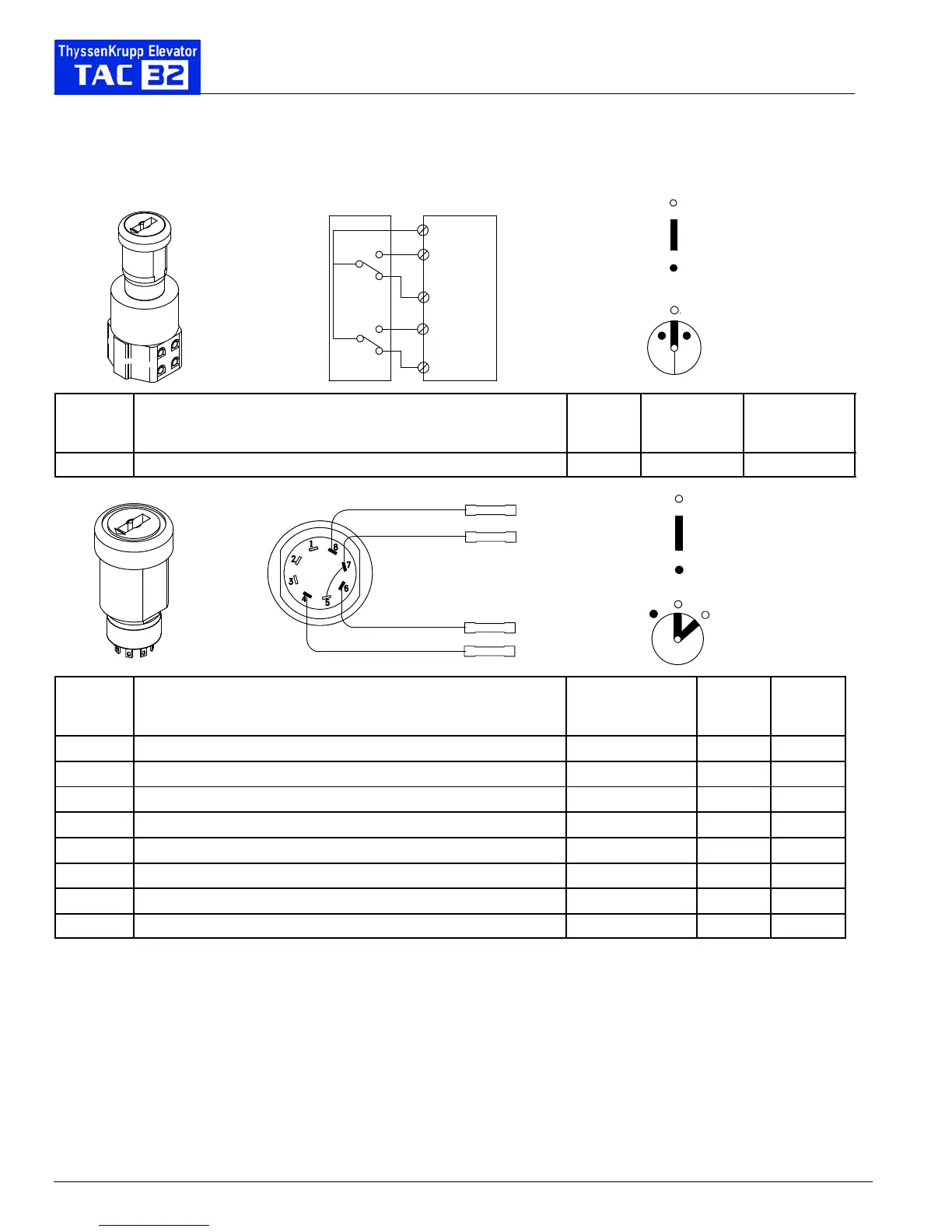

Signa 4 Signal Fixtures-46
Hall Key Switches
(continued)
Off Position
Indicates Key Pull
Off
Indicates No Key
Pull, Spring Re-
turn Momentary
HALL STATION
S24-2
ACCESS SWITCH
UP
DOWN
P24 (PIN 2)
HA T/B U (PIN 7)
HA T/B UM (PIN 3)
HA T/B D (PIN 1)
HA T/B DM (PIN 5)
Part # DESCRIPTION Key
Bezel
(English)
Bezel
(French)
171FM3 Hoistway Access - TAC50-04 205 128BP2 128BY14
Off Position
Indicates Key Pull
Reset
Indicates No Key Pull
OFF
On
Part #
DESCRIPTION Key
Bezel
(English)
Bezel
(French)
171GD4 2000 Fire Service, Massachusets, New Jersey, New Hampshilre 3502 128BV1
171GD19 Florida, Region 1 R-80833-2006-1 128BP87
171GD20 Florida, Region 2 R-80833-2006-2 128BP87
171GD21 Florida, Region 3 R-80833-2006-3 128BP87
171GD22 Florida, Region 4 R-80833-2006-4 128BP87
171GD23 Florida, Region 5 R-80833-2006-5 128BP87
171GD24 Florida, Region 6 R-80833-2006-6 128BP87
171GD25 Florida, Region 7 R-80833-2006-7 128BP87
To Next Page
