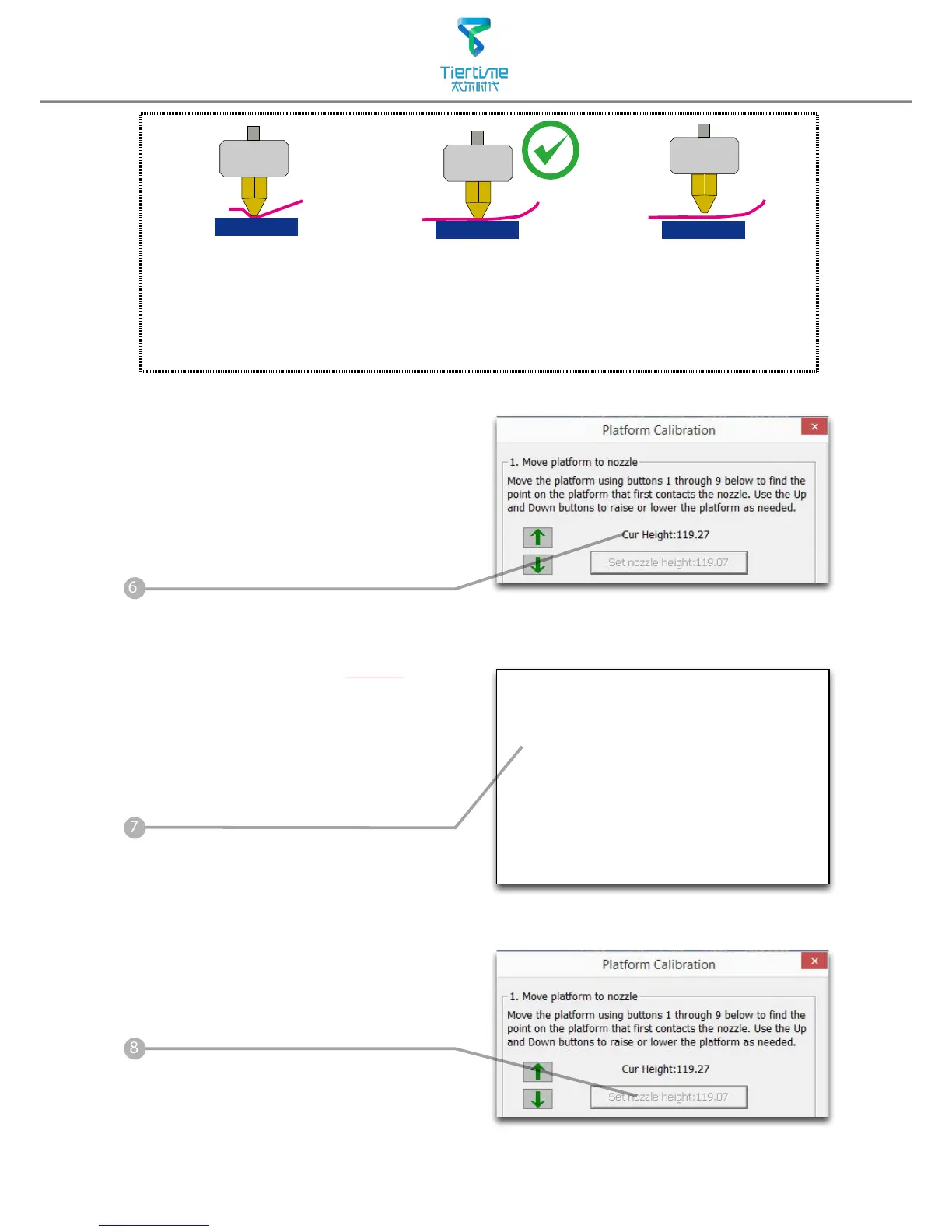

Platform Too high, nozzle
is pinning paper onto
the platform, Lower the
platfrom slightly.
Just right,could feel some
resistance when moving
the paper.
Platform too low, no
resistance at all when
moving paper, raise the
platform slightly.
When obtained the right platform
height, write down the value of "current
height".
We will refer this as the "platform
height".
Repeat step 1- 6 for all other 8
positions and obtain their platform height
value when touching the nozzle.
When obtained the platform value of
all 9 positions.Find out the smallest value
among the 9 calibration points.
As you can see in this case, the
calibration point 1 has the smallest
platform height value, it is actully the
highest point on the platform. (therefore
the platform does not need to rise as
high as the other points to reach the
nozzle
Platform Values at 9 calibration points
(hypothetical):
1: 119 2:119.5 3: 120
4: 119.5 5: 119.9 6: 119.1
7: 119.2 8: 119.4 9: 119.8
We set this height as "Nozzle Height"
since it is where the nozzle first start to
touch the platform. Now go to calibration
point 1 and rise platform to 119.
Click the button" Set Nozzle Height" to
nish.
