TierTime UP mini - Installing the Print Head

06

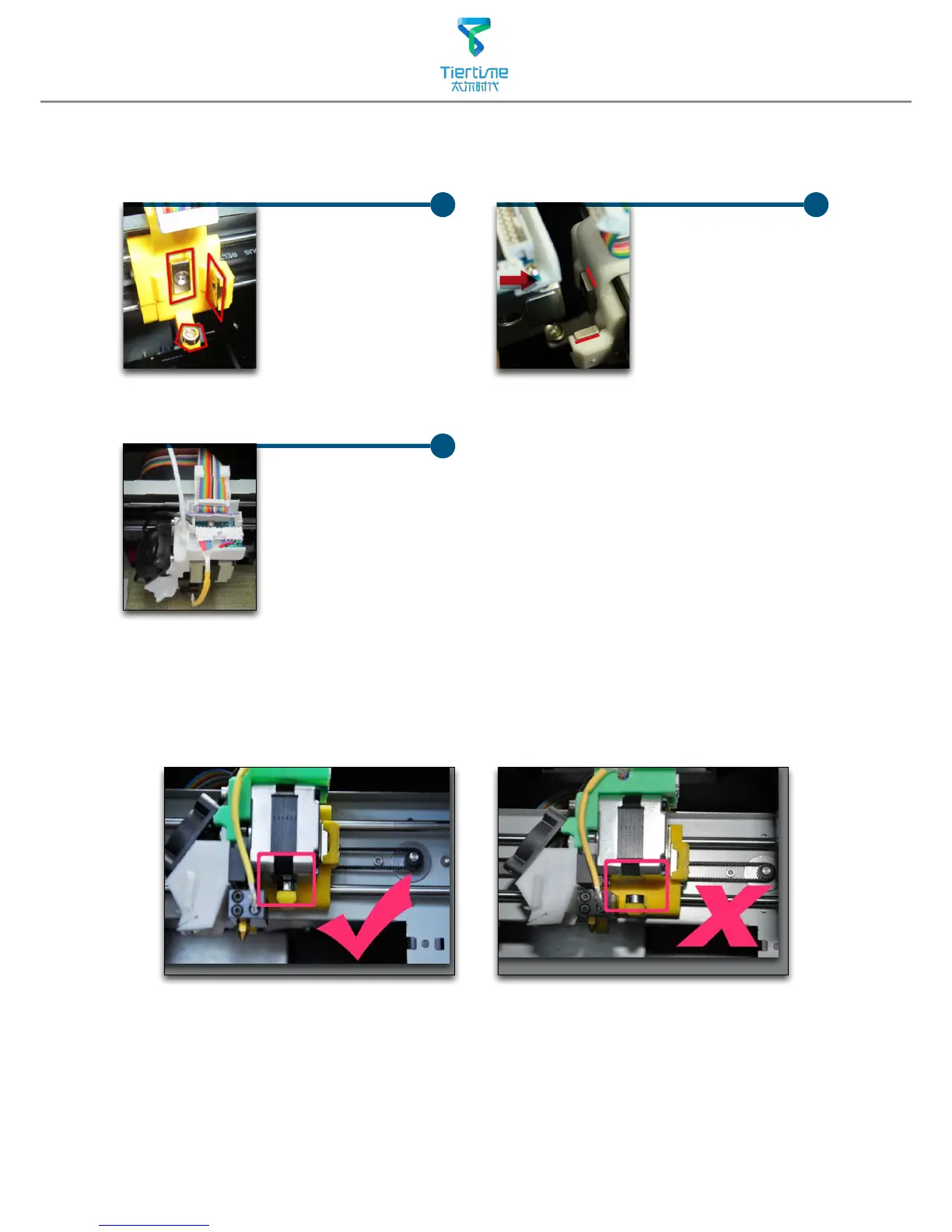

Installing the Print Head
Correct installation.
Incorrect installation, note the magnet
under the print head is not in contact
with the motor.
There are 3
magnets for holding
the print head in
place.
1
During installation
make sure the
magnets are aligned
to the metal plates
on the print head's
stepper motor.
2
After tting the print
head, plug in the
cable to connector
residing on the print
head.
3
