Tiffen Steadicam AXIS - Page 13

11

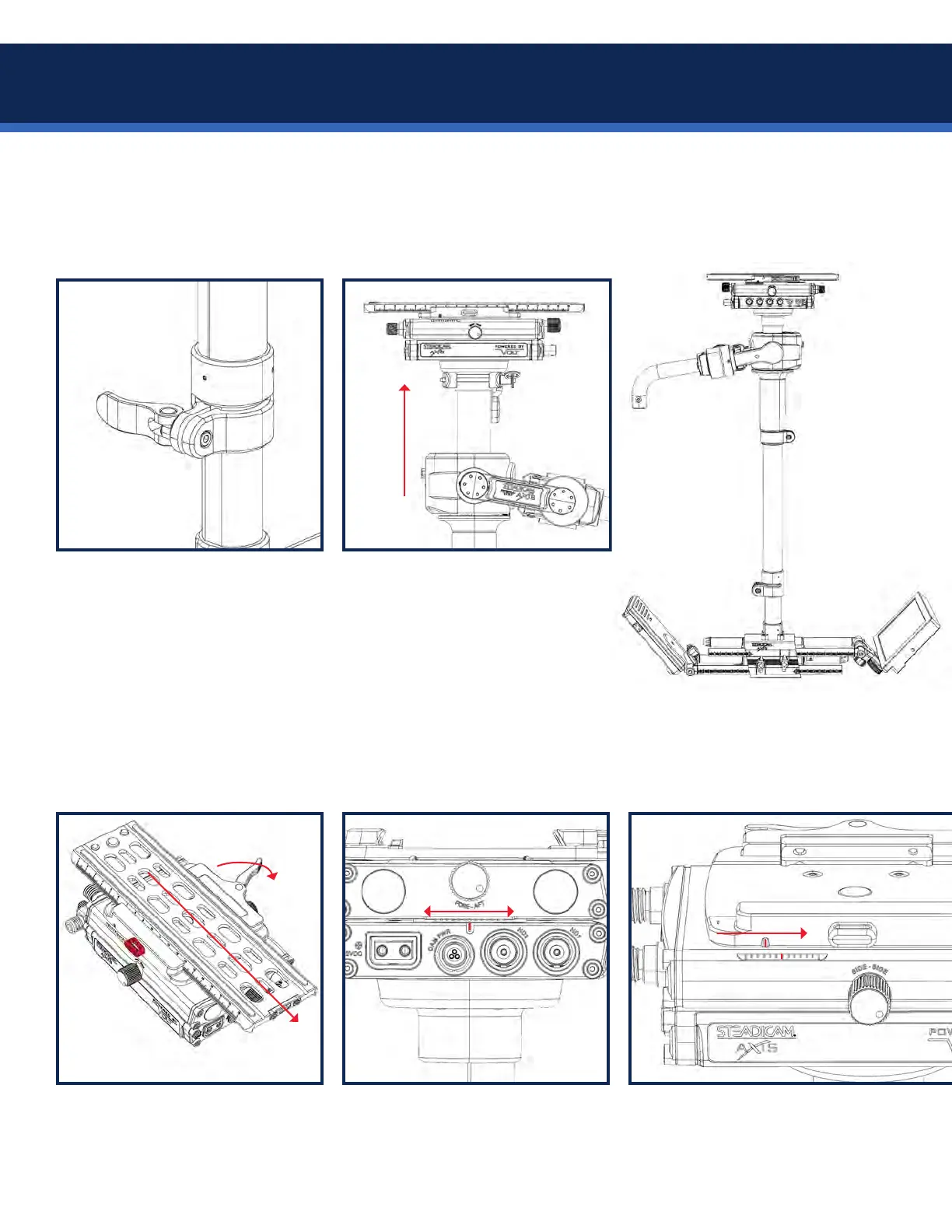

The post and gimbal are adjustable for length and position. For general operating, we prefer having the
gimbal close to the top stage and the post as short as possible to keep the rig out of the way. Extending the
post and lowering the gimbal is an easy way to add lens height or go lower in low mode.
Set the post length so a small
amount of lower post is extended.
This allows making it shorter if
necessary when balancing.
Adjust the gimbal high on the
post to start.
Always align the gimbal grip line
with the back of the post.
Adjust the side-to-side balance so
the clamp plate is centered, using
the marks as reference.
Open the lever and hold down
the release button to slide out the
camera dovetail.
The camera dovetail is secured to the top stage with a lever lock and safety catch. Remove the dovetail so
wecanattachthecamera.Whileyou’resettingitup,centerthetopstagenebalanceadjusters,sowehave
maximum travel in both directions when balancing later.
Adjust the fore-aft balance so the
clamp plate is centered, using the
marks as reference.
Prepare the Axis sled
