11 22
11
22 33
11
22
33
37
IMPORTANT: Total Axis current draw not to exceed 10A.
All power ports on Steadicam Axis are unregulated battery voltage, typically around 14V.
Both HD video lines are direct connections from top stage to base with no processing.
Do not plug anything into either USB-C port (top stage or gimbal) they are for factory programming only.
The Volt electronics are not user serviceable except as shown in this guide.

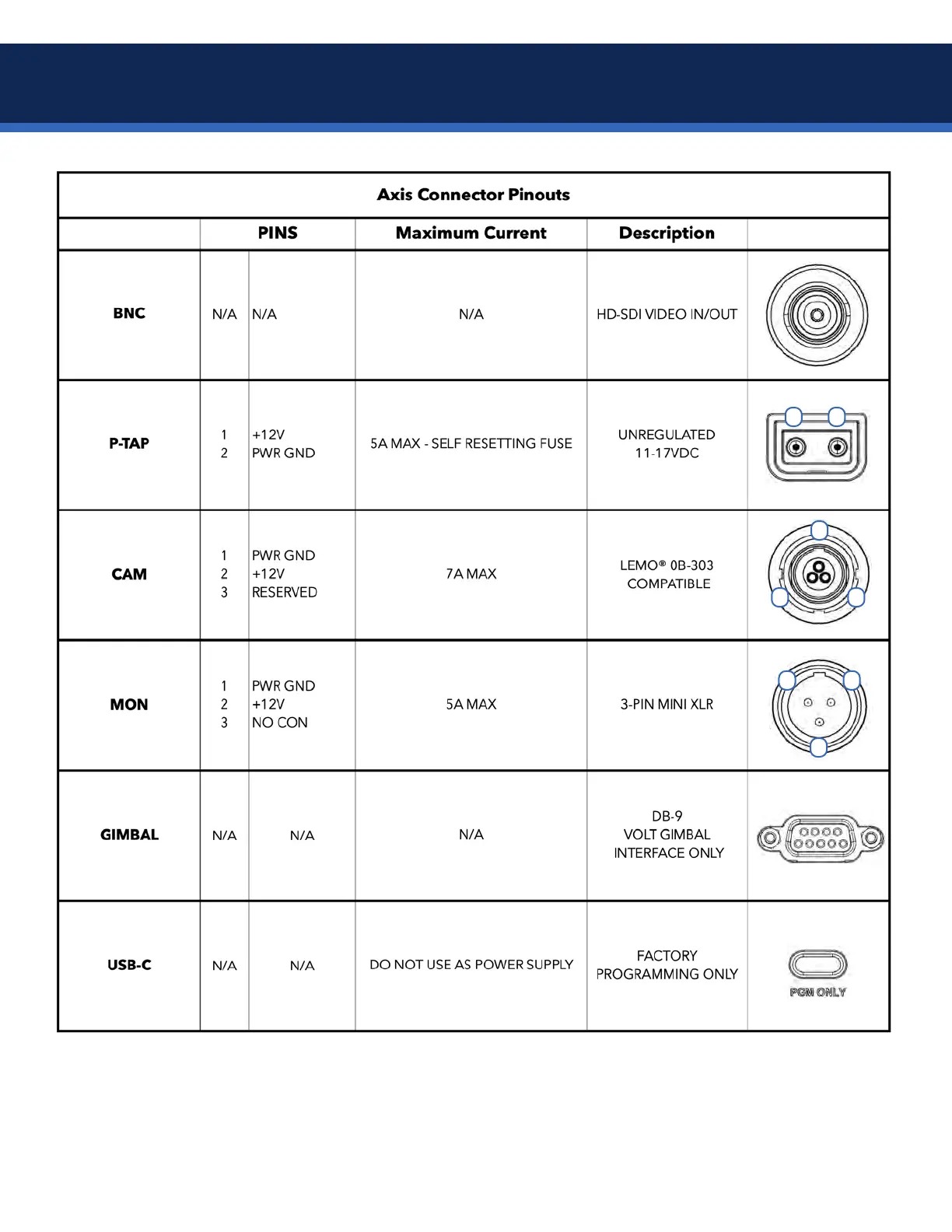

Connectors and pinouts
