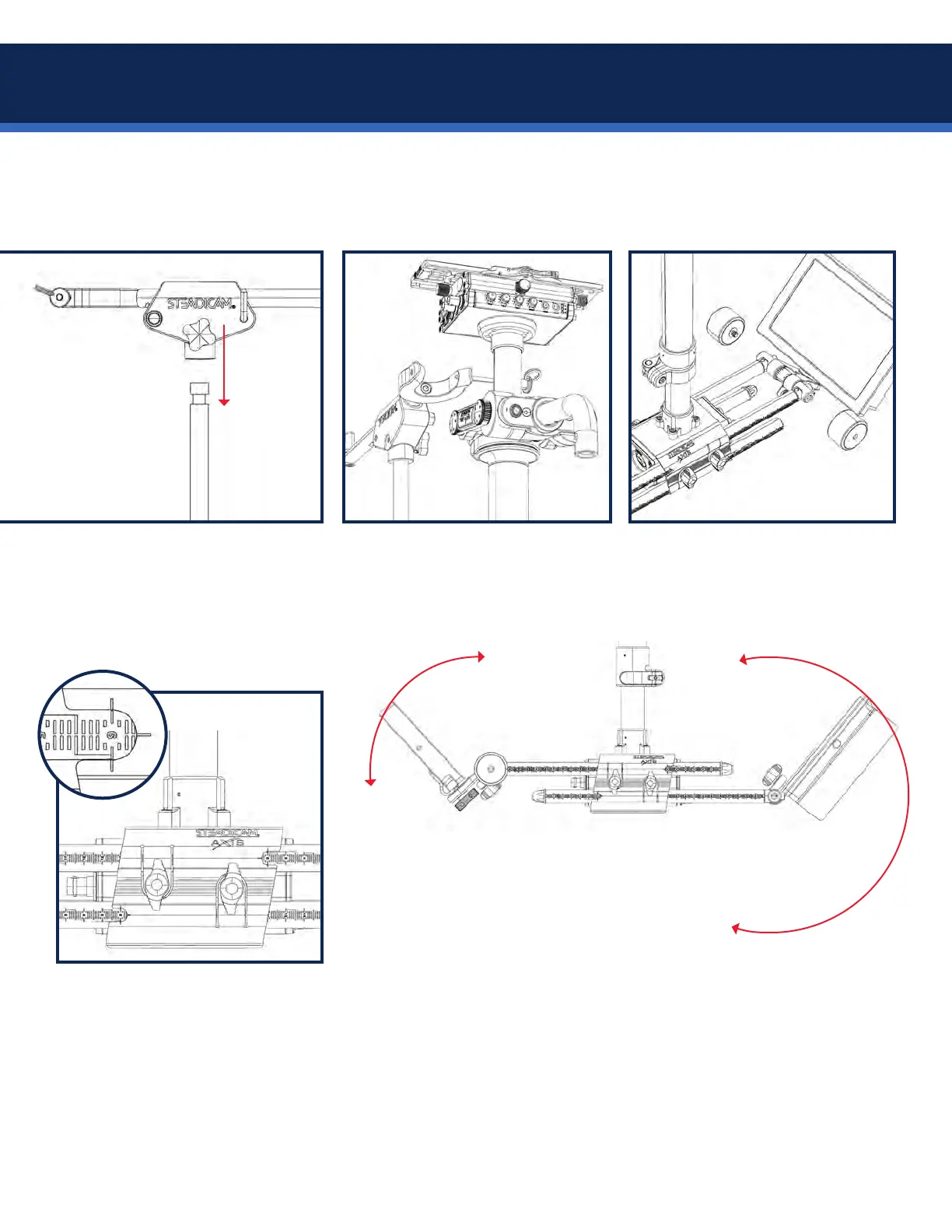

Now let’s set up the Axis system! Once your sled is assembled, follow along to get the rig ready for action.
You’ll need a sturdy stand, along with the Steadicam Axis kit and your camera system of choice.
Place the dock onto the stand
with a sandbag or three at the
base and secure with the knob.
Dock the rig on the ring at the top
of the post and secure with the
aircraft pin.
Screw the two large balance
weights onto the monitor pivot if
you’re using the included monitor.
WARNING: There may be pinch points created between the rig and the dock, under the gimbal, in the arm
when loaded and between connected equipment. Work carefully to keep your ngers and toes safe!
Adjust the angle of the monitor
toabout45˚forbestvisibility.
Depending on conditions, you
may wish to have the monitor
more horizontal or more vertical.
Set the monitor and battery rods
fore-aft so each have the 6cm
mark aligned at the base. Secure
both pairs of lock knobs.
Add a battery and set the battery
angle to your preference; upright
for shortest rig, horizontal to move
in close to the base, or downward
for heavier camera setups.
Prepare the Axis sled
