Use and maintenance manual TIGER 370 CNC-- MR

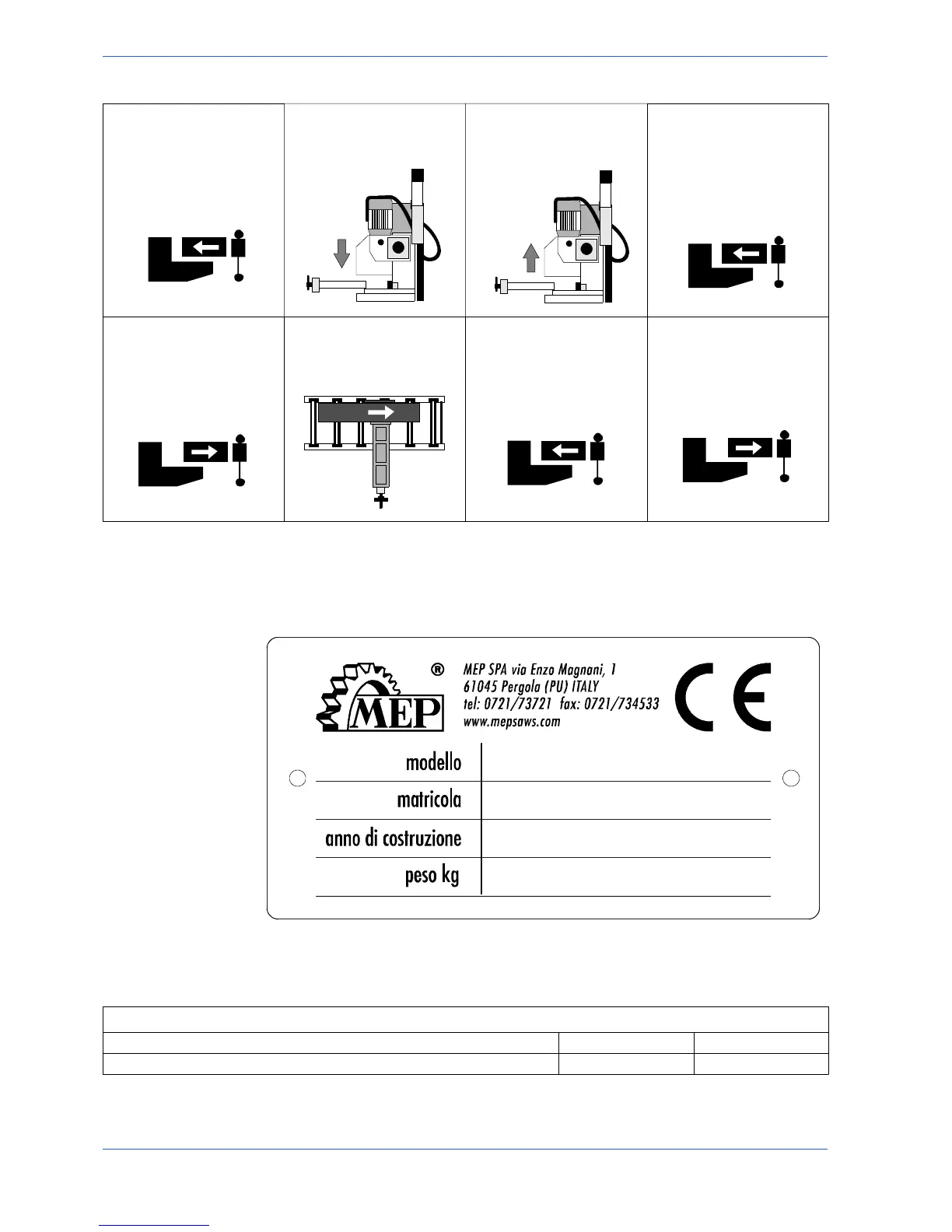

1.Thecuttervicecloses 2. The head lowers un-
til the cut is made
(FCTA)
3. The head returns to
start position (FCTI)
4. The feed vice closes
5.Thecutterviceopens 6. The cutting material
is fed
7. The cutting
ice closes 8. The feed vice opens
and the cutting cycle
starts up
Machine specification
Theanodisedaluminiumnameplateisrivetedonthesideofthemachine;the
same data are reproduced on the declaration of conformity included with this use
and maintenance manual.
TIGER 370 CNC--FE MR
When communicating with the Technical Service department, the model, serial
number and year of manufacture of the machine must be quoted.
Techn ical Data
WORKING PRESSURE
Max. working pressure for opening/closing vice Bar 6
Air consumption for a complete cycle Nl/min 5,74
The “air consumption” value refers to standard conditions (temperature 0° and
pressure 1.013 bar, i.e. density 1.3 x 10
-- 3
Kg/l) where 1 Kg/min. = 772 Nl/min.
N.B.
N.B.
