Use and maintenance manual TIGER 370 CNC--MR
Anchoring the machine

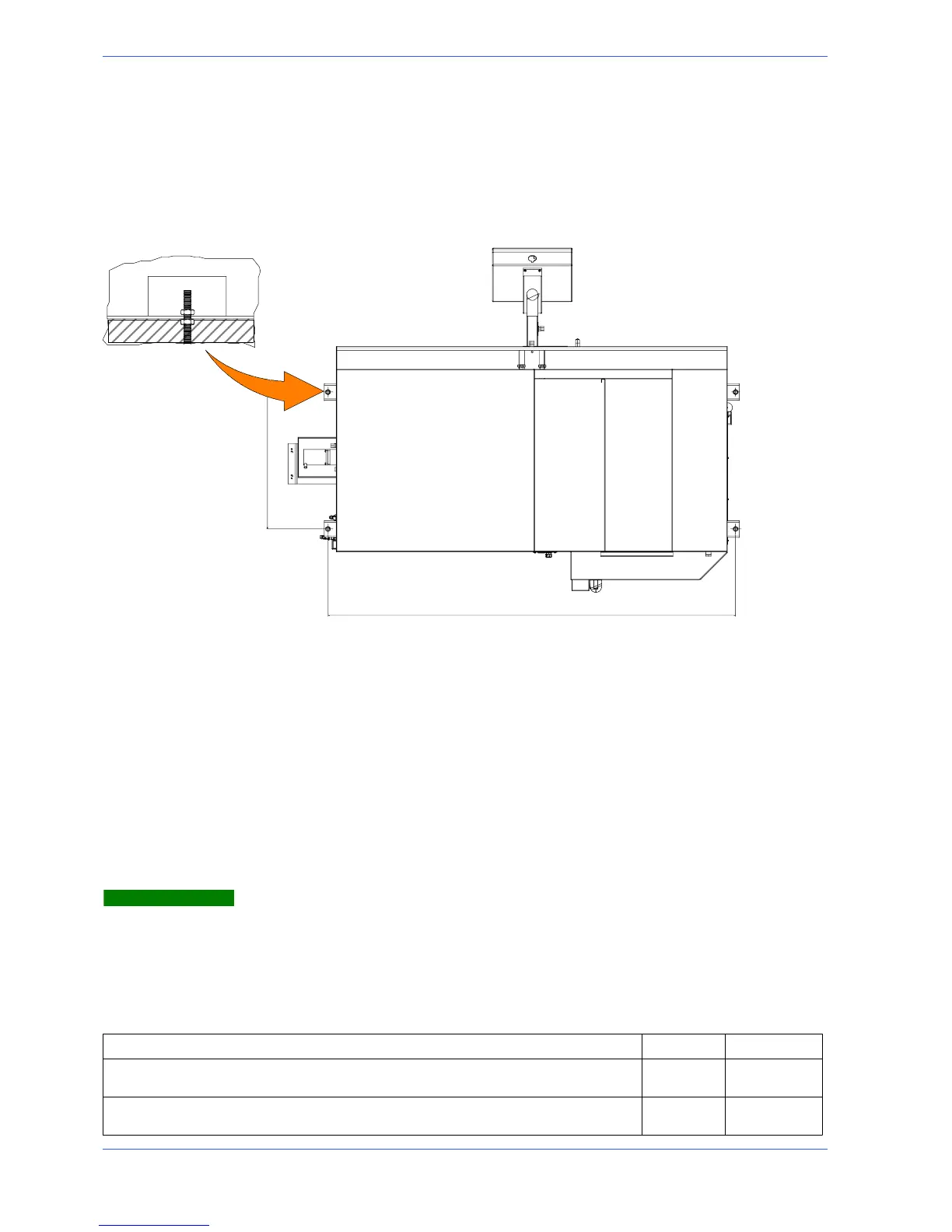

The base of the machine is anchored to the floor by two permanent studs located
on the sides of the base. The studs are screwed into nuts previously sunk into the
concrete, and tightened from above with lock nuts. The schematic specifications
set out in Chapter 1 should be taken into account when positioning the machine.
2226
747,5
Minimum requirements
For the machine to function correctly, the room in which it is to be installed must
satisfy the following requirements:
H power supply voltage/frequency: refer to t he values on the rating plate;
H working pressure not less than 6 Bar and not greater than 8 Bar;
H temperature of machine location: from --10 to +50° C;
H relative humidity: not more than 90%;
H lighting: not less than 500 Lux.
The machine is already protected against voltage variations, but will only run
trouble-- free if the variations do not exceed ± 10%.
Check list
Before starting installation, check that all the accessories, whether standard or
optional, s upplied with the machine are present. The basic version of the TIGER
370 CNC---MR is supplied complete with:
CHARACTERISTICS
Multi---microprocessor with two controlled axes that permits programming 32
batches of workpieces with different lengths and quantities on the same bar
n
Three---stage drive system to ensure a high level of ri gidity and precision, and t o
attain a great capaci ty for removal
n
