Use and maintenance manual TIGER 370 CNC--MR
H this Use and Maintenance Manual.

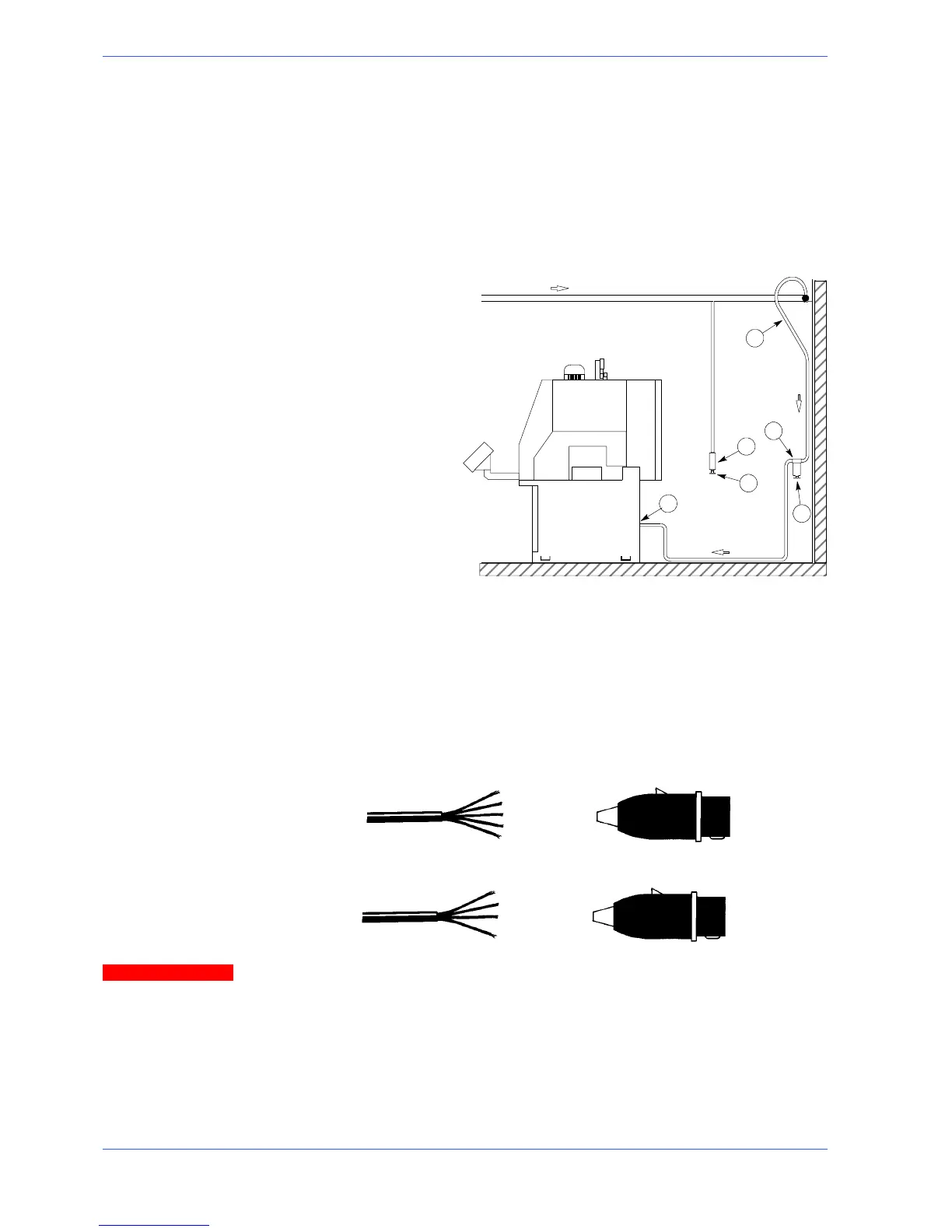

Connection to the compressed air supply
To ensure perfect operation and a long service life, it is recommended that the
machine is connected to a compressed air system having the characteristics
reported in the diagram below.
1
2
3
4
5
6
KEY
1 - DOWN PIPE
2 - CONDENSATE COLLECTOR
3 - DRAIN COCK
4 - AIR FILTER
5 - DRAIN COCK
6 - CONNECTING HOSE
Connection to the power supply
Before connecting the machine to the power supply, check that the socket is not
connected in series with other machines. This requirement is fundamental for the
good operation of the machine.To connect the machine to the power supply,
proceed as follows:
" connect the power supply cable of the machine to a plug which matches the
socket to be used. (EN 60204---1; par. 5.3.2).
CONNECTION FOR ”5 -CO
R
E” WIRE SYSTEMS WITH NEUTRAL
R=L1
S=L2
T=L3
PE = GND
N = NEUTRAL
CONNECTION FOR ”4 -CO
R
E” WIRE SYSTEMS WITH NEUTRAL
S=L2
T=L3
PE = GND
R=L1
When using systems with a neutral wire, special care must be taken when con-
necting the blue neutral wire, in that if it is connected to a phase wire it will dis-
charge the phase voltage to the equipment connected for voltage: phase--
neutral.
Attention
