TAP INSTALLATION -
MESH CONFIGURATION
12

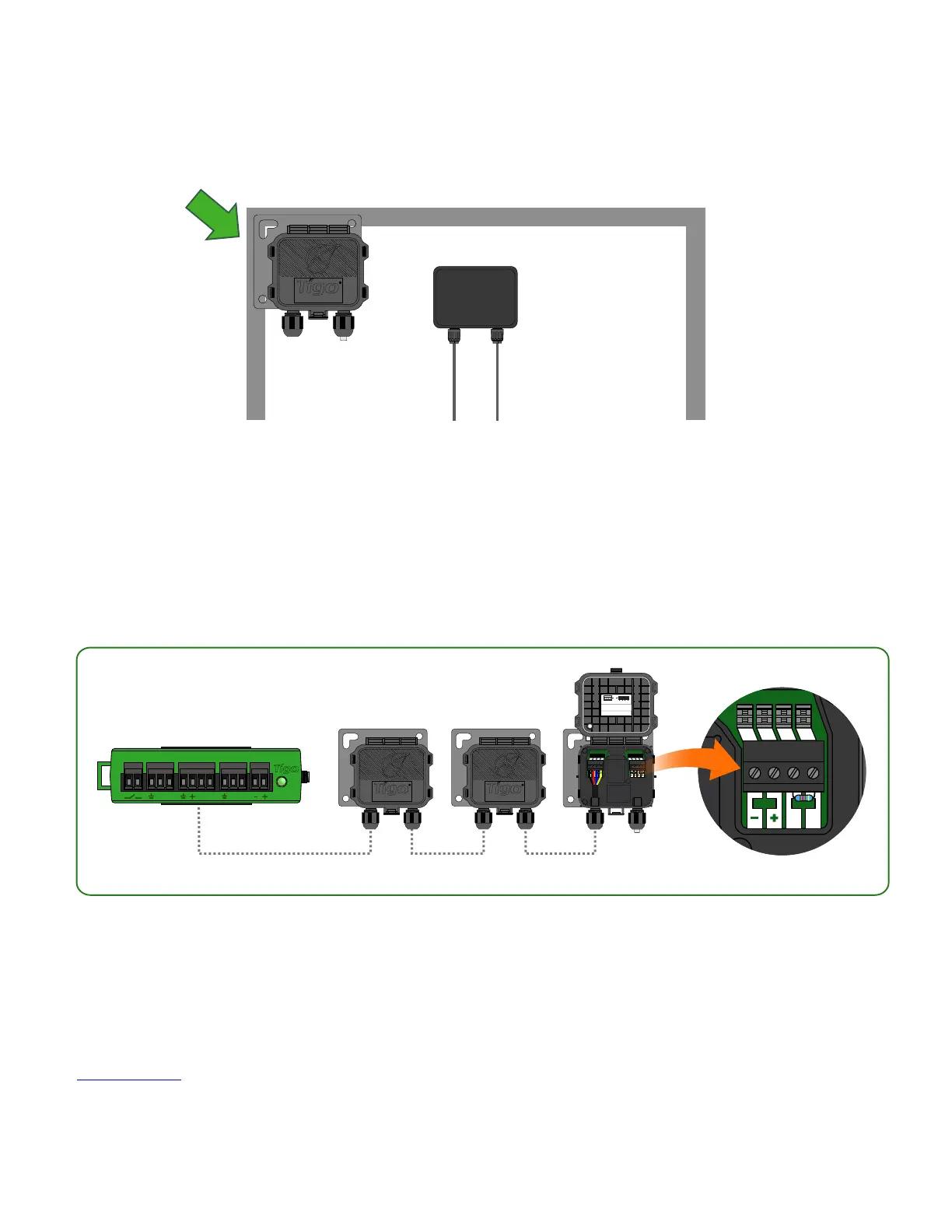

TAP attaches to module frame using built-in bracket. Mounting holes are also
available in case of frameless modules.
Place TAP within 10m of any TS4 unit in the array, with a maximum distance
of 10m between TS4 units and 35m from TAP to farthest TS4.
Connect multiple TAP units in series and leave terminating resistor in final TAP
only.
Use 4-conductor RS485 (18-22 AWG) cable between TAP and CCA.
Click here for more information on TAP placement.
access point
access point access point
PWR PWRDATA DATA
Quick connectors:
presswi reinto terminal
OR
Connector blocks:
use screwterminals
Remove resistorto connect
another AccessPoint in series.
-
+
B
A
IN OUT
B BA A
B A B A B A
AUX RS485-1 RS485-2GATEWAY POWER
