Tigo TS4-A - TECHNICAL SPECIFICATIONS - CCA & TAP; CCA Specifications; TAP Specifications

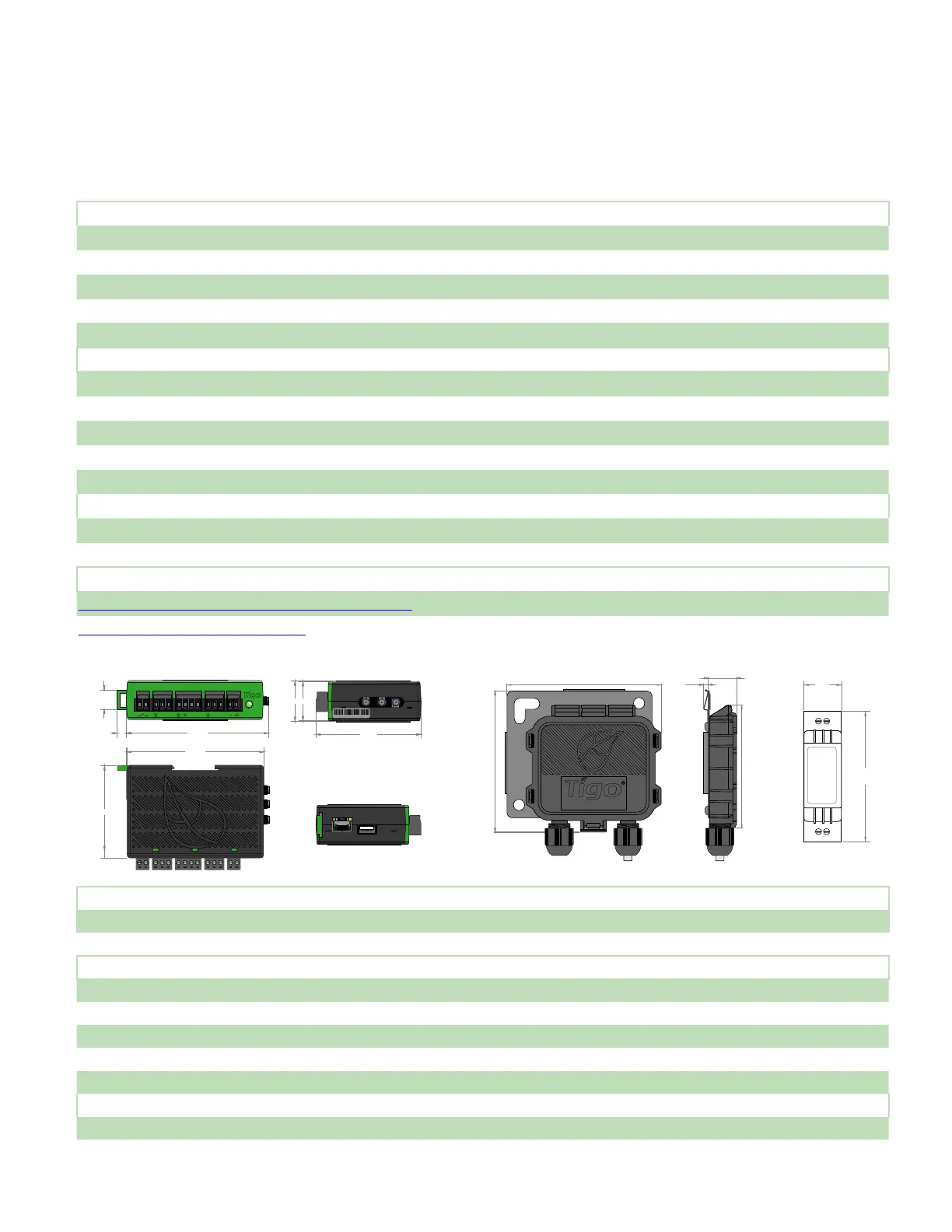

TECHNICAL SPECIFICATIONS –
CCA & TAP
28
Electrical
CCA
Input Voltage 10V
DC
- 25V
DC
Power Consumption 3W - 7W
Power Supply 138.4mm x 139.7mm x 22.9mm
Input Voltage 100V
AC
- 240V
AC
Mechanical
DIN rail mountable enclosure
Dimensions (CCA only) 31mm x 115.51mm x 71.54mm
Weight (CCA only) 126g
Operating Temperature Range -20°C to +70°C (-4°F to +158°F)
Cooling Natural Convection
Capacity
Mesh Conguration Each CCA supports up to 900 TS4 units and up to 7 TAPs
Legacy Conguration Each CCA supports up to 360 TS4 units and up to 7 TAPs
User Interface
Mobile App: Tigo SMART App for Android and iOS
Multi-function LED status indicator
Electrical
TAP
Input Voltage 24V
DC
Mechanical
Dimensions 126.2mm x 130.0mm x 26.8mm (with bracket)
Weight 227g
Operating Temperature Range -20°C to +85°C (-4°F to 185°F)
Environmental Rating IP68, Type 4R
Cooling Natural Convection
Capacity
Mesh Conguration 300 TS4 units up to 115ft (35m) away
Legacy Conguration 120 TS4 units up to 50ft (15m) away
All dimensions in mm.
NN
LL
-
+
Power Supply
(Optional)
TAPCCA
90
17.5
105.10
70.70
14.96
7.02 108.87
31 30
80.33
B A B A B A
AUX RS485-1 RS485-2GATEWAY POWER
4 - 103A4543R
Cellular
Wi-Fi
1 2
Ethernet
USB
126.2
115.5
access point
100.7
3.7
