MLPE INSTALLATION NOTES
• Note: The following TS4 products are shipped in the ON position:
• TS4-M, TS4-S, TS4-O
• TS4-A-M, TS4-A-S, TS4-A-O
• Upon exposure of the PV module to sunlight high voltage is
present. Handle with the appropriate precautionary measures.
• Optimization feature does not require CCA & TAP for operation.
• To enable Monitoring and Safety features:

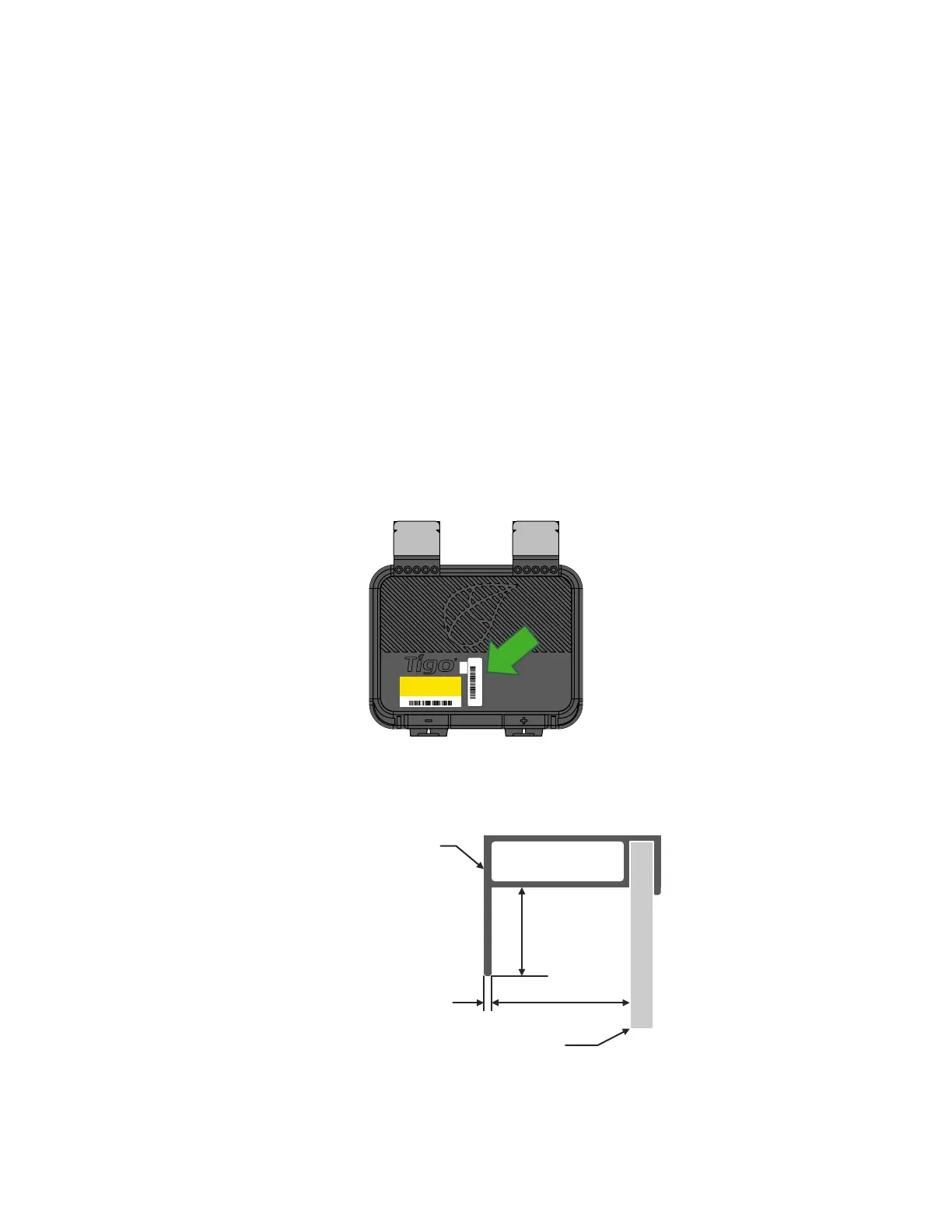

• Collect the TS4 removable barcode label, install and commission
with CCA & TAP.
With add-on units, failing to follow the sequence of installation steps
may result in TS4 damage not covered under warranty.
8
4 - 123A
TS4-A-O
4-1234T
FRAME THICKNESS RANGE
GLASS
1.2mm - 3mm
min. 30mm
min. 22mm
ALUMINUM FRAME
Module frame specications for mounting TS4-A:
