CCA & TAP WIRING
16
PWR PWRDATA DATA
Quick connectors:
press wire into terminal
OR
Connector blocks:
use screw terminals
Remove resistor to connect
another Access Point in series.
-
+
B
A
IN OUT
B BA A
PWR PWRDATA DATA
Quick connectors:
press wire into terminal
OR
Connector blocks:
use screw terminals
Remove resistor to connect
another Access Point in series.
-
+
B
A
IN OUT
B BA A

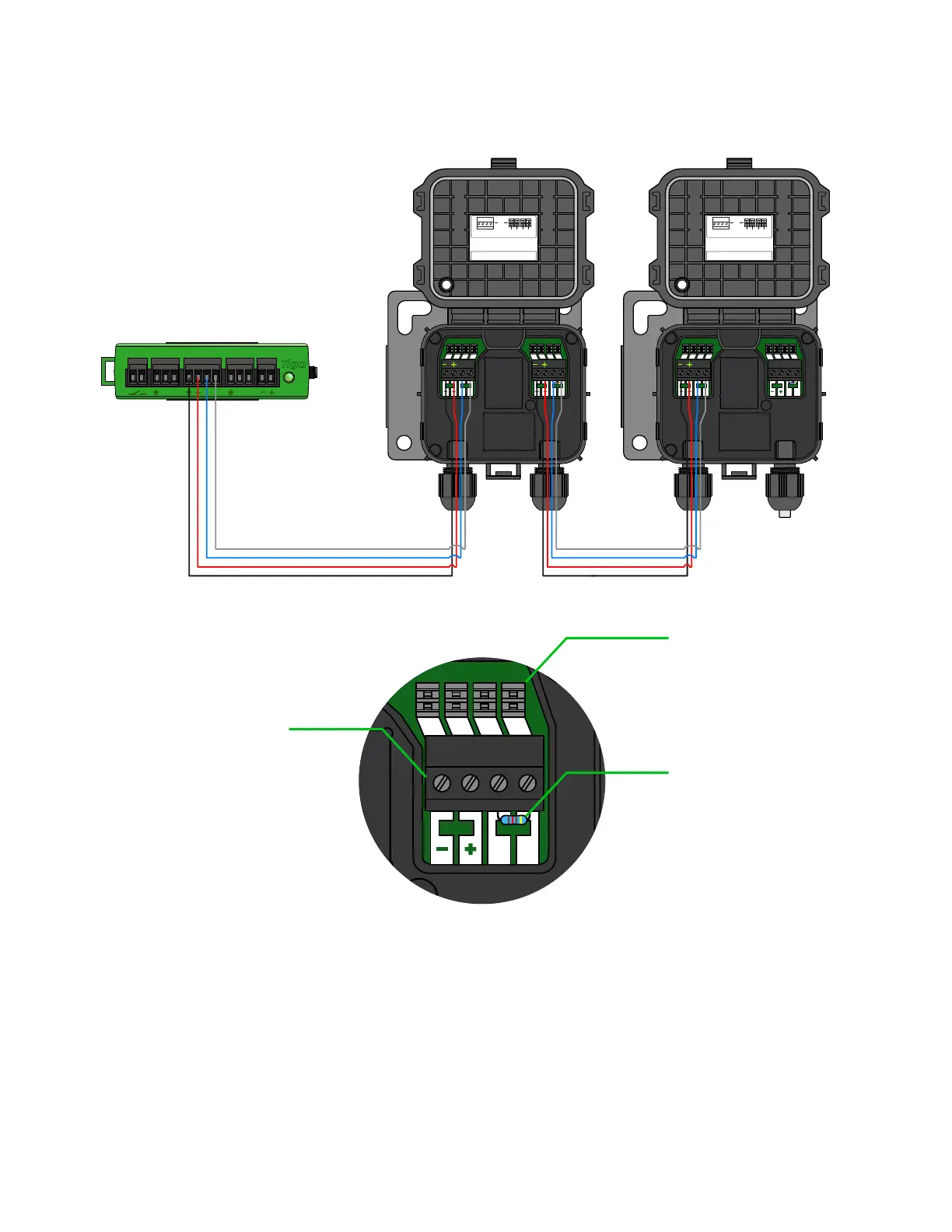

B A B A B A
AUX RS485-1 RS485-2GATEWAY POWER
B A B A B A
Connect multiple TAP units in series and leave terminating resistor only in nal TAP.
If using the quick connectors, remove the terminal block from the TAP and strip
approximately 3cm of insulation from the end of the cable.
Use a small athead screwdriver to press the conductors into the quick connectors.
The individual conductors do not require stripped ends.
Connect all communication cables before powering on CCA.
PWR DATA
B A
120Ω
resistor
Terminal
block
Quick connect
terminals
+ B
A
-
