Tigo TS4-A - TECHNICAL SPECIFICATIONS - TS4-A-O; Electrical Ratings

TECHNICAL SPECIFICATIONS – TS4-A-O
27
Electrical Ratings
OPTIMIZATION
TS4-A-O
Input
Rated DC Input Power 700W
Input Voltage 16 - 80V
Max Continuous
Input Current (I
MAX
)
15A
Output
Output Power Range 0 - 700W
Output Voltage Range 0 – V
OC
Communication Type Wireless
Rapid Shutdown UL Listed
1
(NEC 2017 & 2020 690.12)
Yes
Impedance Matching Yes
Output Voltage Limit No
Maximum System Voltage 1000V / 1500V
1
Cloud Connect Advanced (CCA) and TAP/Gateway required for rapid shutdown compliance with TS4-A-S & TS4-A-O.
Mechanical
Operating Temperature Range -40°C to +70°C (-40°F to +158°F), RH < 85%
Storage Temperature Range -40°C to +70°C (-40°F to +158°F), RH < 60%
Cooling Method) Natural Convection
Dimensions W= 138.4mm, L= 139.7mm, H= 22.9mm
Weight 490g
Outdoor Rating IP68
Cabling
Type H1Z2Z2-K
Input Cable Length 0.12 (standard0, 0.62 (optional)
Output Cable Length 1.2m
Rating Options
3
1000V, 1500V
Cable Cross-Section 6.3 ± 0.3mm
Connectors MC4 (standard), MC4 comparable, EVO2
UV Resistance 500hr with UV light between 300-400nm @65°C
21
120
±10
1200
±1
0
77.8
15.6
*Clips can be removed for rack mounting
2X
9
MOUNT
HOLE
*
*
W
L
H

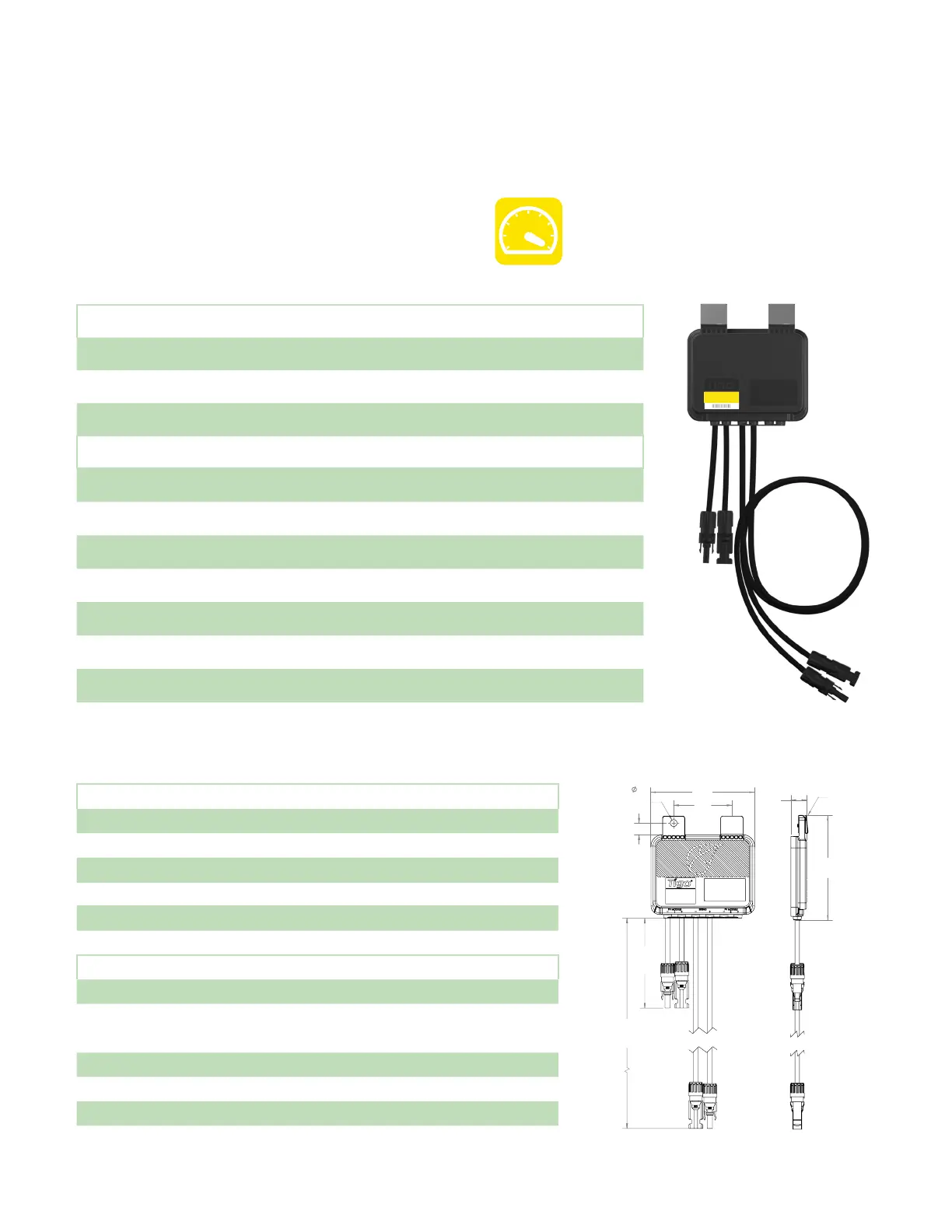

TS4-A-O
