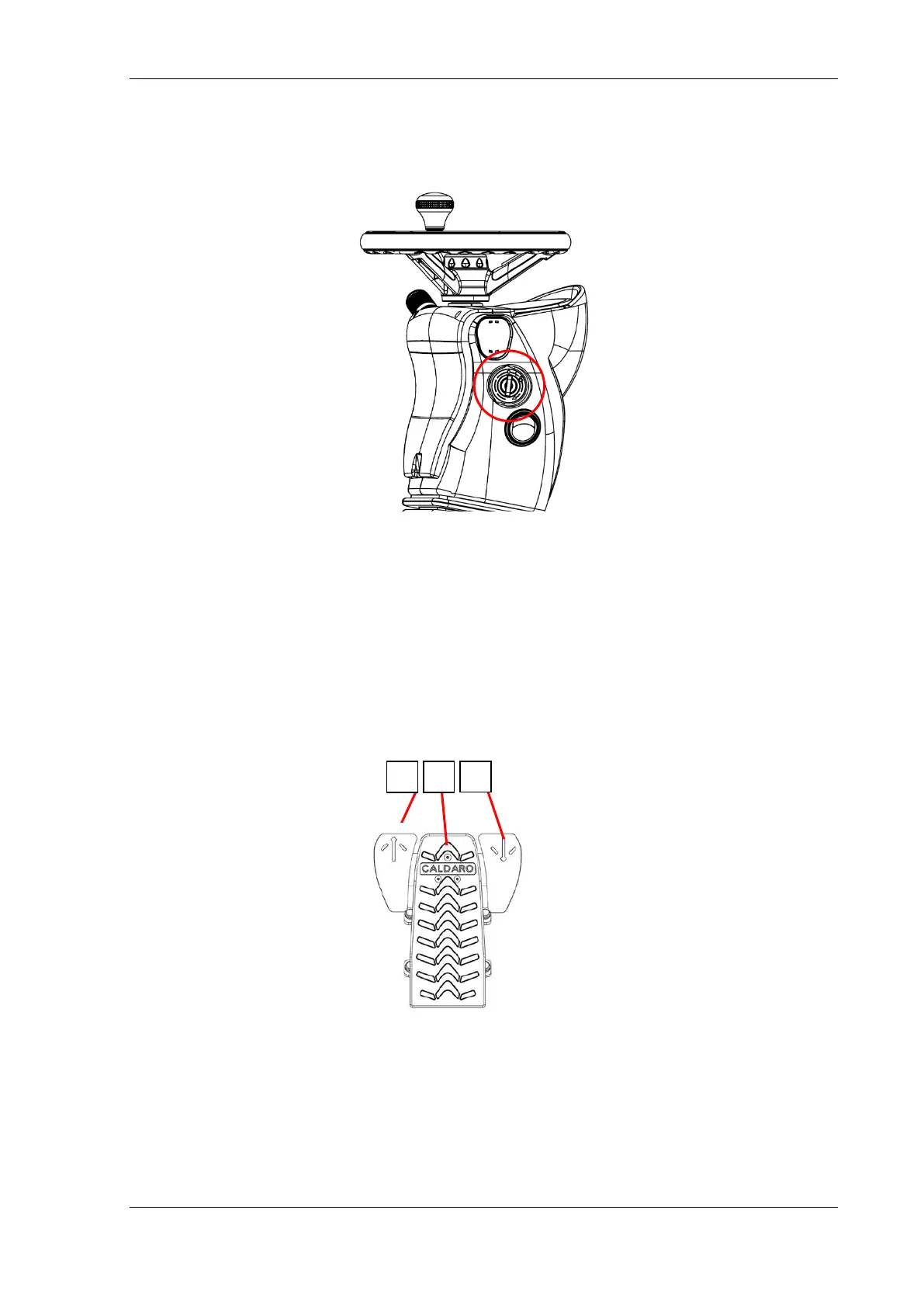

STEERING COLUMN, OPERATOR'S GRIP, CABINET AND AIR SWITCHES.
14
5.3 Ignition
0: Off Position which allows the key to be inserted or removed from the start switch.
When the key is in this position, the gasoline engine is stopped.
I: On Ignition is on
II: Start Engine start signal
5.4 Foot pedals
1. Direction selector for moving forward.
2. Potentiometer accelerator.
If the pedal is activated without one of the directional switches being activated, the
engine speed will increase without the machine moving.
3. Direction selector for reversing.
