INTENDED USE OF THE MACHINE
7
2.4 Maximum permissible side load of the machine

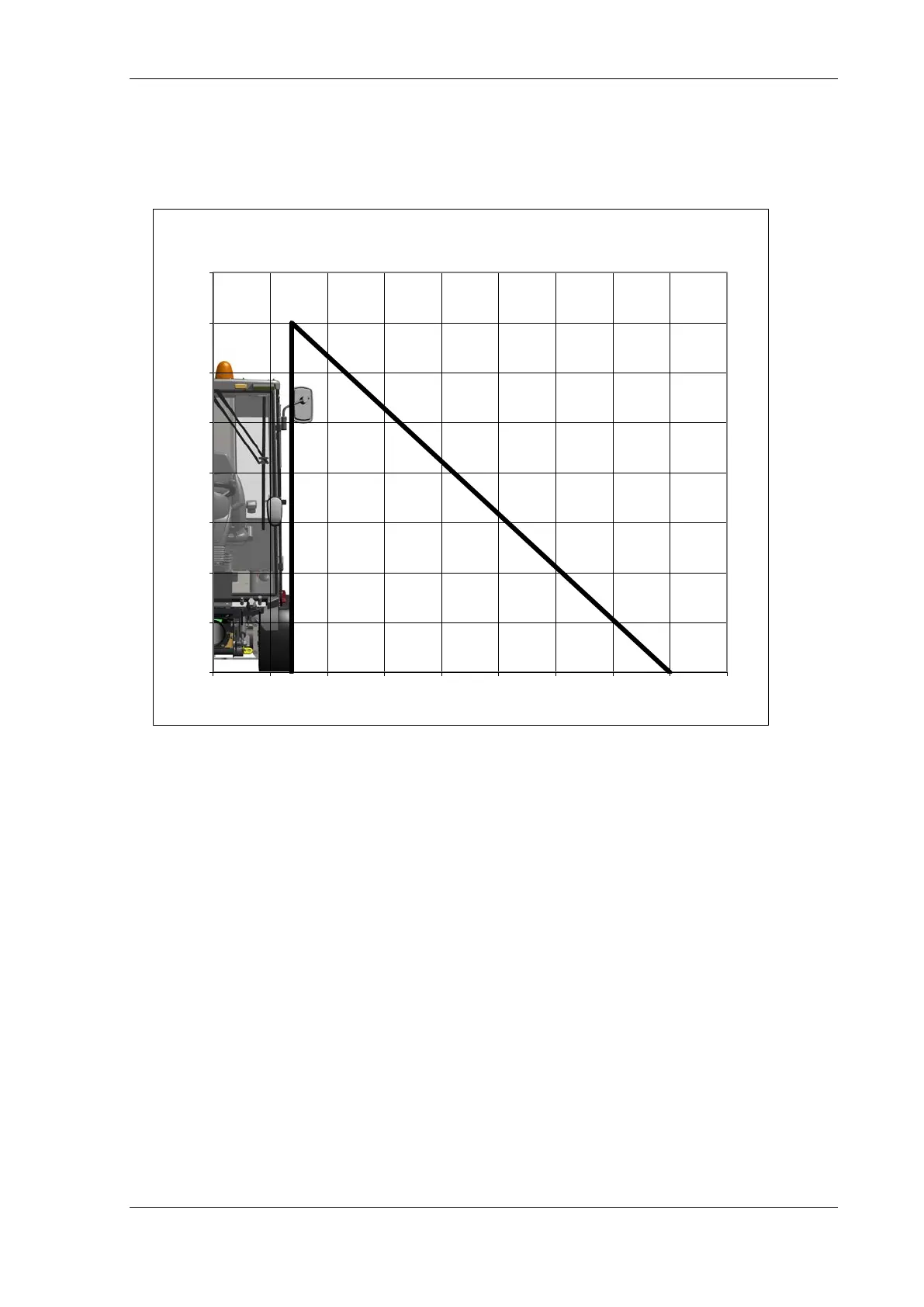

The maximum permissible side load of the machine is specified in the diagram below.
Caption: Maximum permissible side load of the machine
The mass table shows point 0 between the lifting arms and on the ball joint at the rear end of
the machine (if it is attached).
Equipment for side loading may either be fixed to the front on the lifting arms or to the rear.
The stated load is on the lifting arm holder or the rear end of the machine. If the tool is fixed
further away than the holder, on the rear end of the machine, the weight that can be suspended
from the machine decreases.
Important:
Only one side load may be suspended from the machine at a time.
For example, the machine may carry a load weighing 200 kg with the centre of gravity
positioned 1700 mm away from the centre of the lifting arms.
0
50
100
150
200
250
300
350
400
0 400 800 1200 1600 2000 2400 2800 3200 3600
Kg
mm
Till. side vægt - perm. side load
