MAIN CIRCUIT-BREAKER, FUSES AND RELAYS, ERROR CODES
18
1. MR1 - Start relay Kubota motor
2. MR2 - Power relay Kubota motor
3. MR3 - ETV relay Kubota motor
4. F4-1 30 A motor control Kubota
5. F4-2 15A constant current for pump control
6. F4-3 5A feedback start signal Kubota motor control
7. F4-4 5A wheel sensor, oil level and hydraulic tank
temperature.
8. Main fuse 60A MF2 - Generator
9. Main fuse 60A MF1 main current machine
6.2 Main fuses and relays rear.
IMPORTANT: Never replace fuses with fuses that have greater ampere values. There is
always a reason why a fuse blows. Investigate the cause and remedy the problem before
inserting a new fuse.

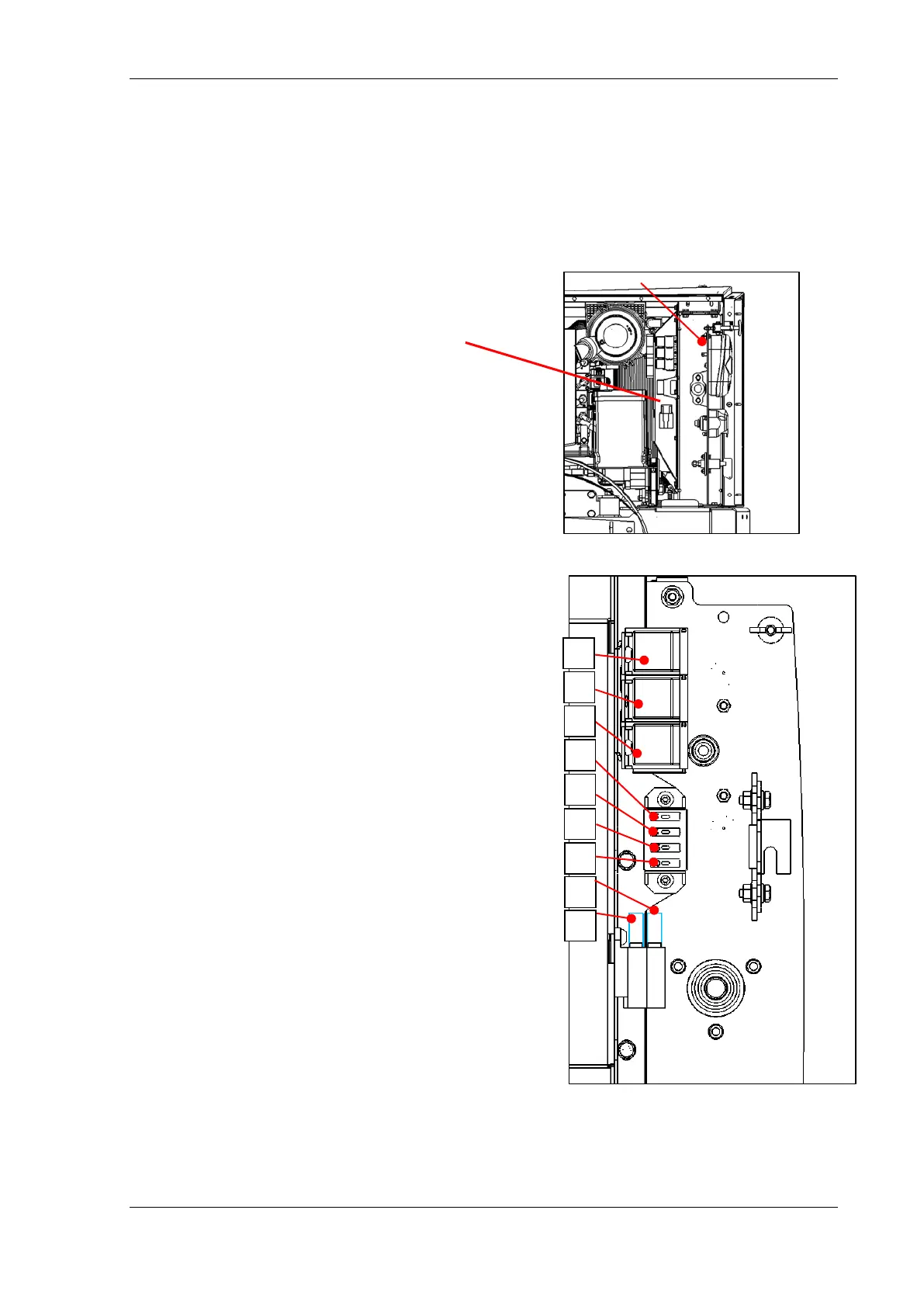

The fuse box is located on the left side of the engine,
behind the taillight. Access is achieved by dismounting
the side screen, loosening the wing screw and
removing the screen.
