MAIN CIRCUIT-BREAKER, FUSES AND RELAYS, ERROR CODES
17
6. MAIN CIRCUIT-BREAKER, FUSES AND RELAYS, ERROR CODES
The machine's electrical system is divided into 6 different areas:
1. Main circuit-breaker.
2. Main fuses and relays rear.
3. Fuses front.
4. Fuses ceiling.
5. Relays under seat.
6.1 Main circuit-breaker.

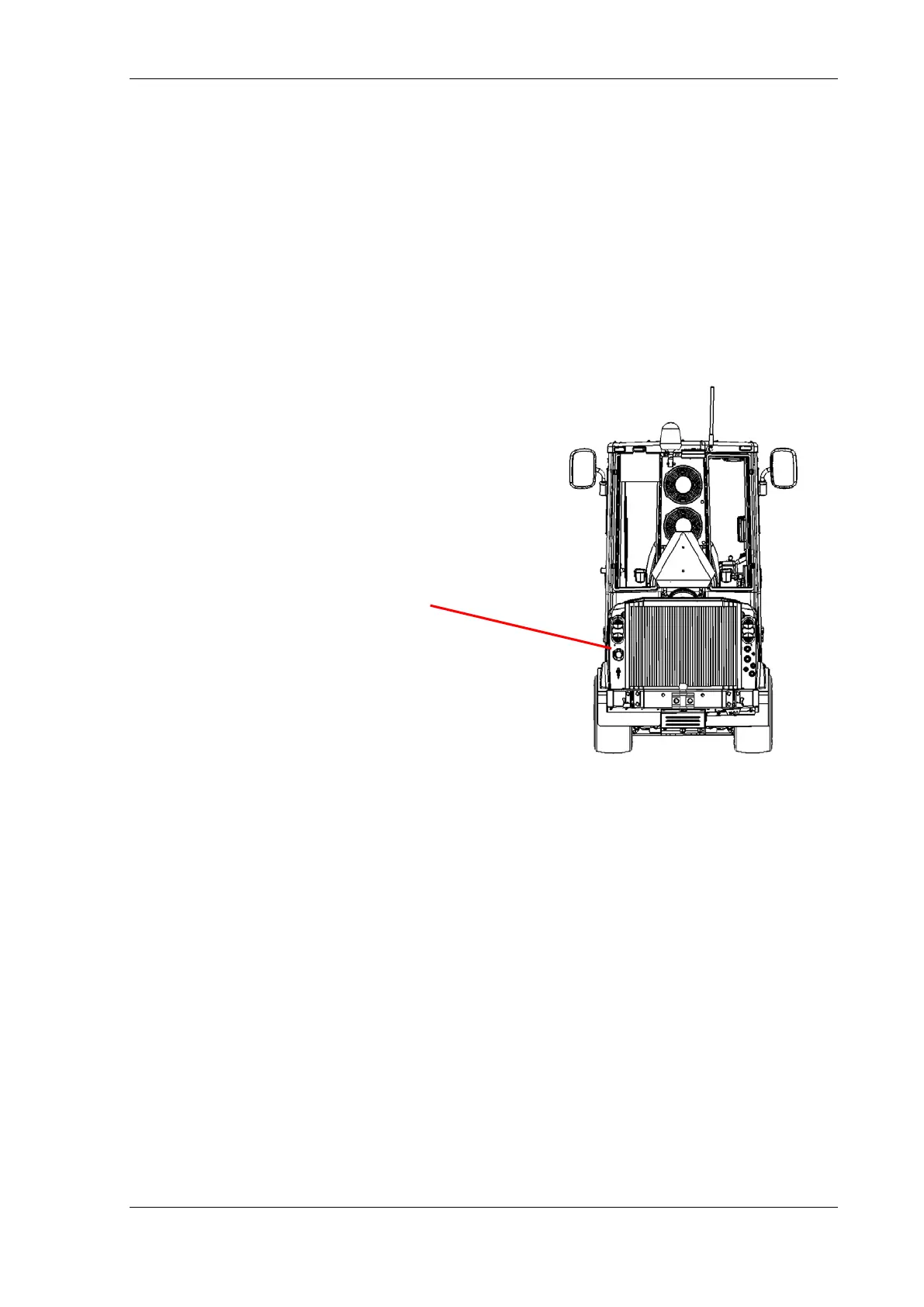

The machine is equipped with a main circuit breaker on the electrical system. The circuit
breaker is located in the rear left of the machine, at
the bottom of the rear frame. The main circuit
breaker has a removable key, which can be removed
as an extra anti-theft device.
The main circuit breaker breaks the connection to the
battery and must always be disconnected if welding
is performed on the machine
Main circuit breaker with key
