6.6 13 pole trailer socket rear

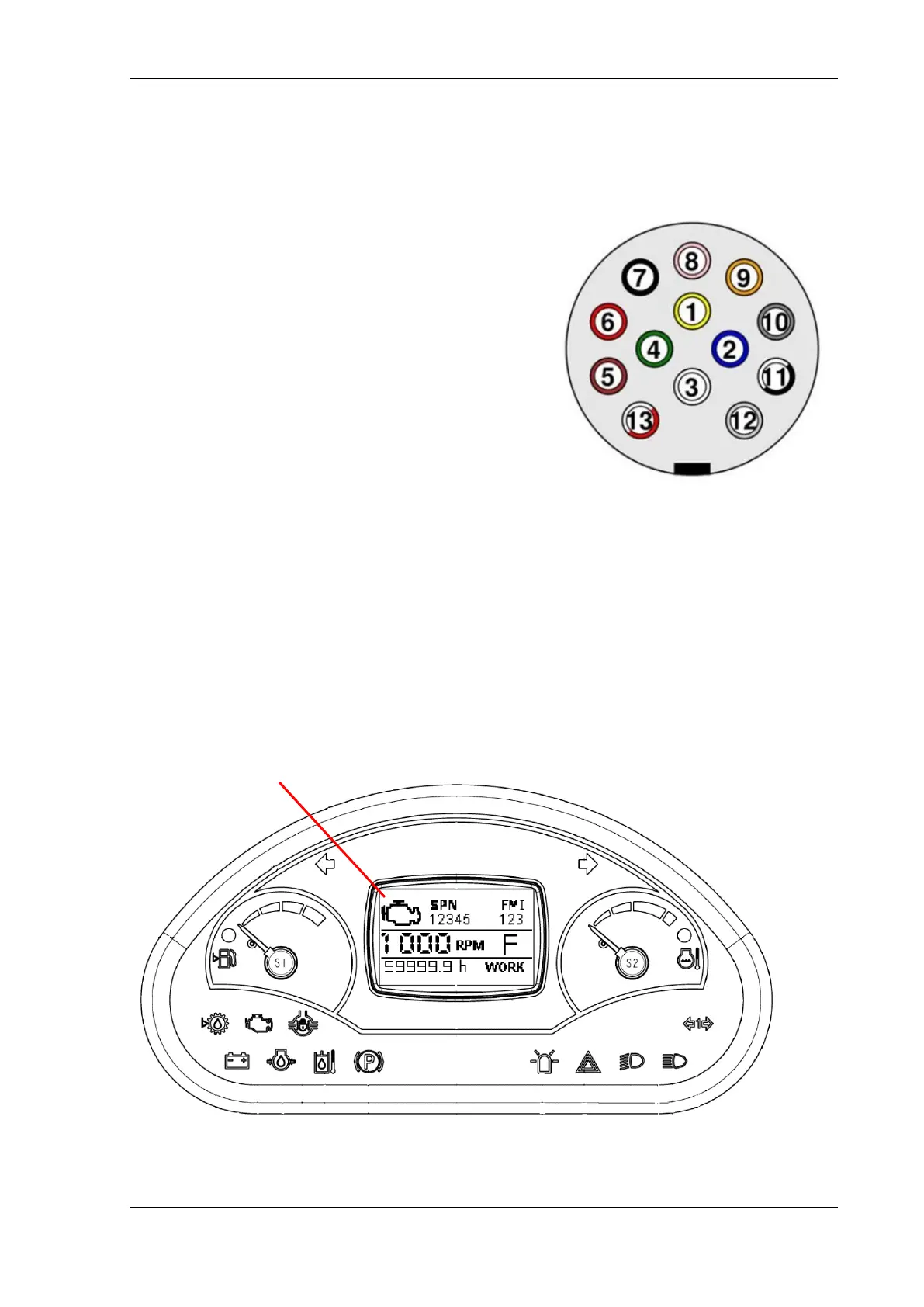

The diagram below shows an overview of the 13 pole trailer socket on the rear of the machine
6.7 Error codes
If the pump control or engine control goes into error mode, the error codes appear on the
vehicle’s display. If there are multiple errors, the error code changes every two seconds.
Important: If the error code is accompanied by an acoustic alarm, the machine must be
stopped immediately, as this is a critical error that can damage the machine.
The error codes are shown here in the display. The significance of the error codes can be seen
in a specific booklet.
Pin 1
Turn signal Left
Pin 2
S75 - Water on / off
Pin 3
GND
Pin 4
Turn signal right
Pin 5
Position light
Pin 6
Stop light
Pin 7
Position light
Pin 8
S70 12Volt on / off reversible
Pin 9
S70 12Volt on / off reversible
Pin 10
Work light tool
Pin 11
S72 12 V on / off reversible
Pin 12
S72 12 V on / off reversible
Pin 13
Flashlight tool
