MAIN CIRCUIT-BREAKER, FUSES AND RELAYS, ERROR CODES
20

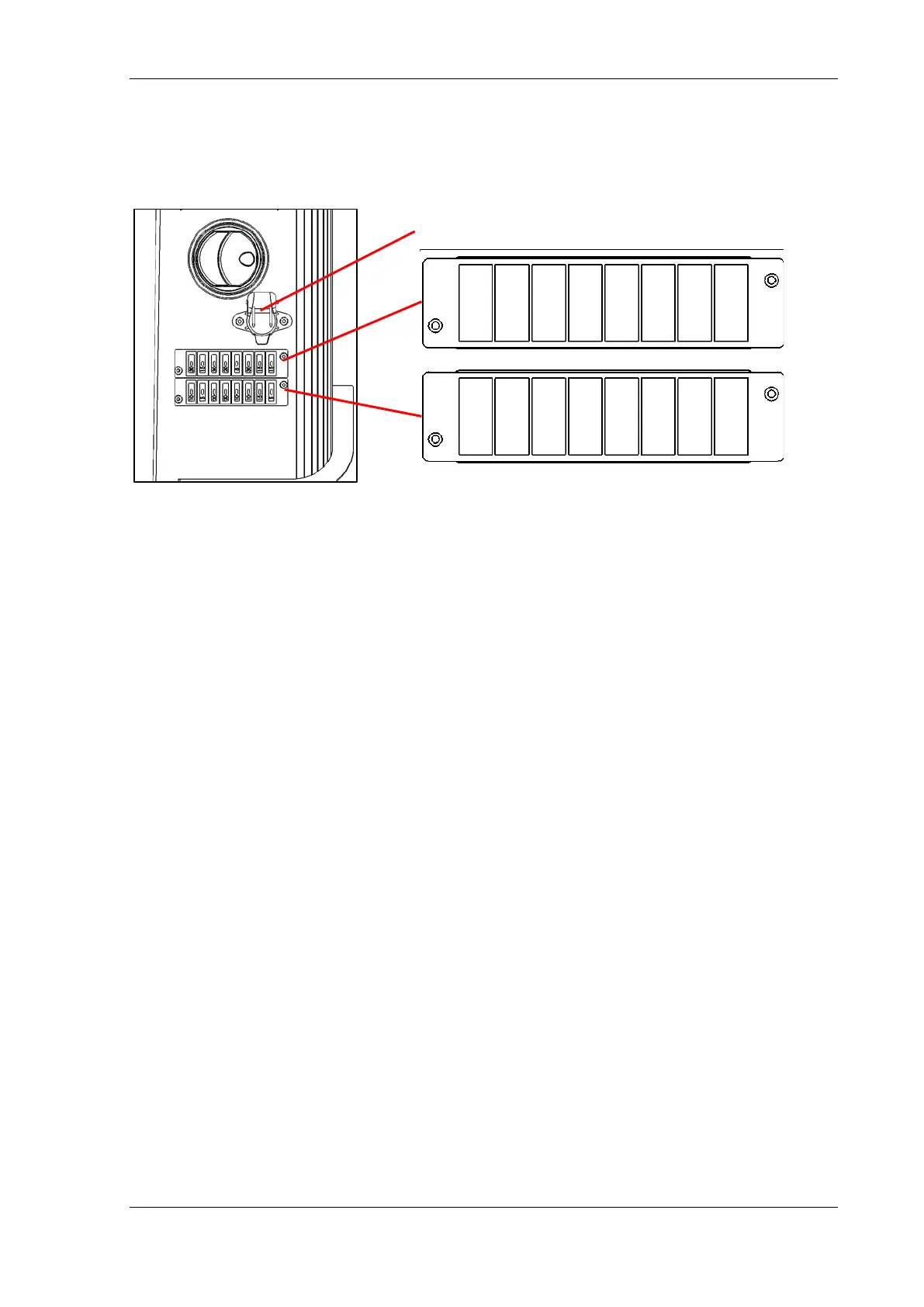

6.4 Fuses in the cabin
The fuse boxes are located to the right of the driver's seat.
Fuses F1-7 to F1-8 are connected directly to the battery.
All other fuses are activated upon ignition.
Top fuses
F1-1 15 A Common start of PTO, 7-pole plug front, 12V cabin, seat compressor.
F1-2 15 A Joystick lift arms.
F1-3 30 A Contact nos. 17 (12V socket rear), no. 20 (12V socket rear) and 21 (1/4”
oil outlet rear).
F1-4 5 A Seat switch.
F1-5 20 A Heating fan.
F1-6 30 A Air conditioning.
F1-7 15 A Position light, USB socket armrest.
F1-8 30 A Hazard light, radio, ignition light supply.
Lower fuses.
F2-1 5 A Ignition Kubota engine (IGN).
F2-2 15 A Low beam.
F2-3 10 A Brake Light.
F2-4 10 A Horn, Sprinkler pump.
F2-5 20 A Pump control.
F2-6 20 A Pump control.
F2-7 5 A Direction selector foot pedal, PTO logic.
F2-8 10 A Indicator.
