INTENDED USE OF THE MACHINE
6
2.3 Permissible load on the rear end of the machine
The maximum permissible load on the rear end of the machine and load platform is specified
in the diagram below.

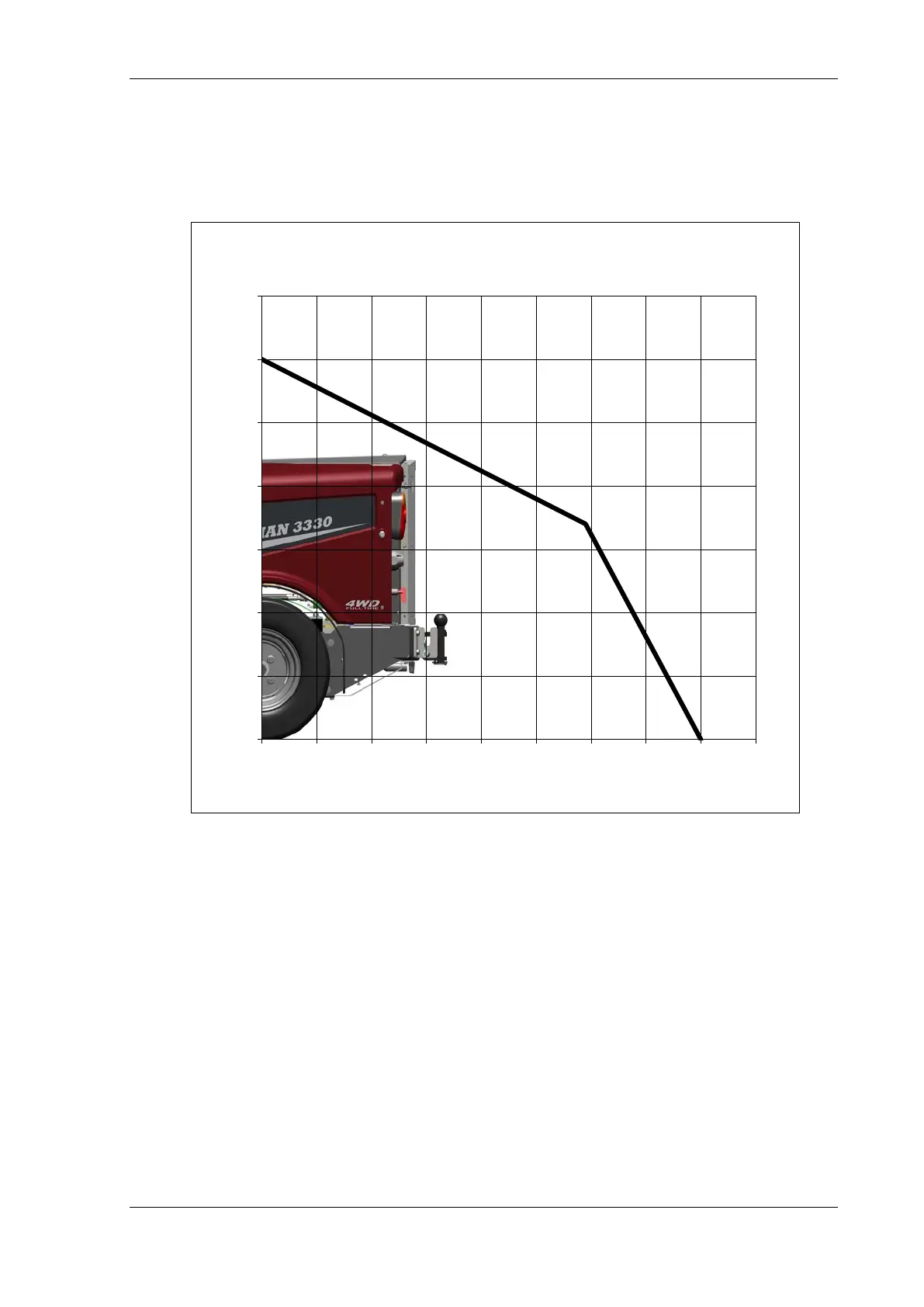

Caption: Permissible load on the rear end of the machine
The load must be positioned in the middle between the rear wheels.
The maximum permissible load on the load platform is 600 kg above the centre of the rear
wheels.
The distance from centre of the rear wheels to the rear end of the machine is 600 mm.
For example, the rear end may carry a load weighing 400 kg with the centre of gravity
positioned 900 mm away from the centre of the rear wheels - 300 mm if the measurement is
taken from the rear end of the machine.
Important: It is necessary to use the original Timan A/S tool frame when loading the rear
end.
0
100
200
300
400
500
600
700
0 200 400 600 800 1000 1200 1400 1600 1800
kg
mm
Till. vægt bag - Perm. load rear
