STEERING COLUMN, OPERATOR'S GRIP, CABINET AND AIR SWITCHES.
16

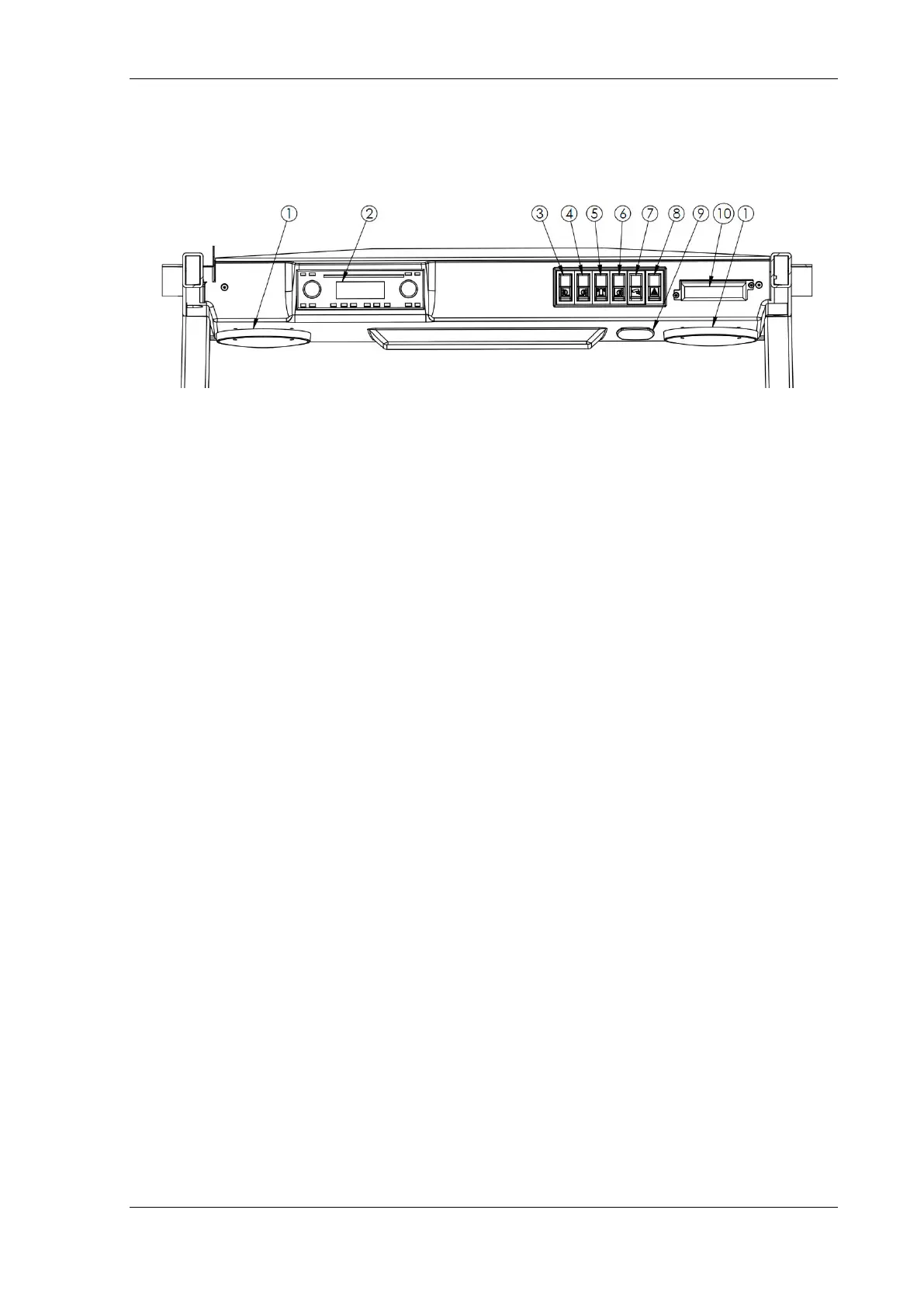

5.6 Ceiling
1. Speakers.
2. Radio (see separate operating instructions).
3. Front working light.
4. Rear working light.
5. Rotating beacon on machine and tools (pin 13 in 13 pol connector)
6. Working light on tools (extra equipment pin 10 in 13 pol connector).
7. Change between camera (extra equipment)
8. Hazard lights.
9. Cabin light.
10. Fuse box with 6 flat fuses (See page 19).
