Timberwolf TPS35 - Door Handle Installation; Decorative Inset

W415-0865 / B / 05.26.11
26

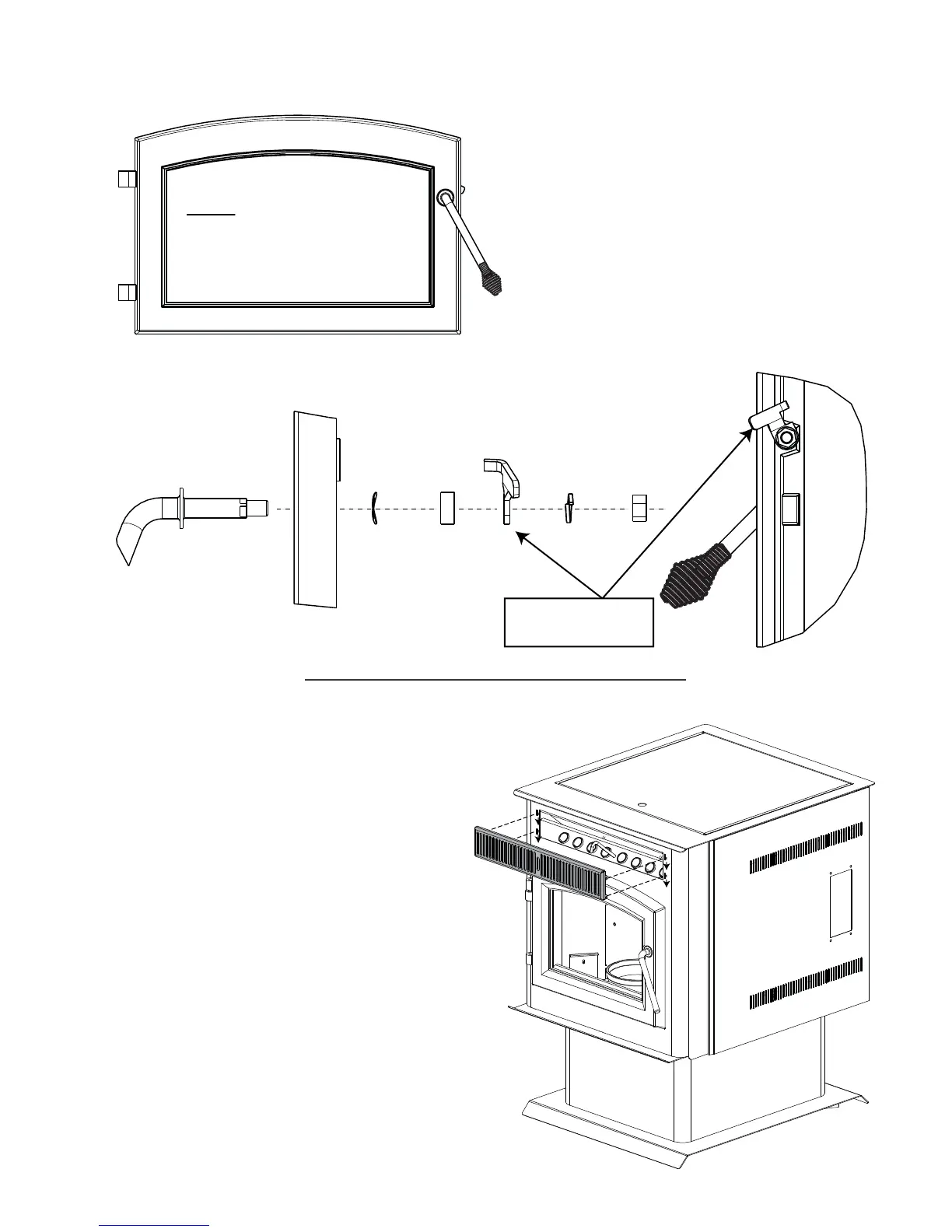

6.2 DOOR HANDLE INSTALLATION
6.3 DECORATIVE INSET
DOOR
HANDLE
NUT
DOOR HANDLE
LATCH
LOCK
WASHER
DOOR
SPACER
SPRING
WASHER
FRONT VIEW
NOTE: Position of
door handle latch.
98.1
NOTE: DOOR MAY NOT BE AS
ILLUSTRATED
