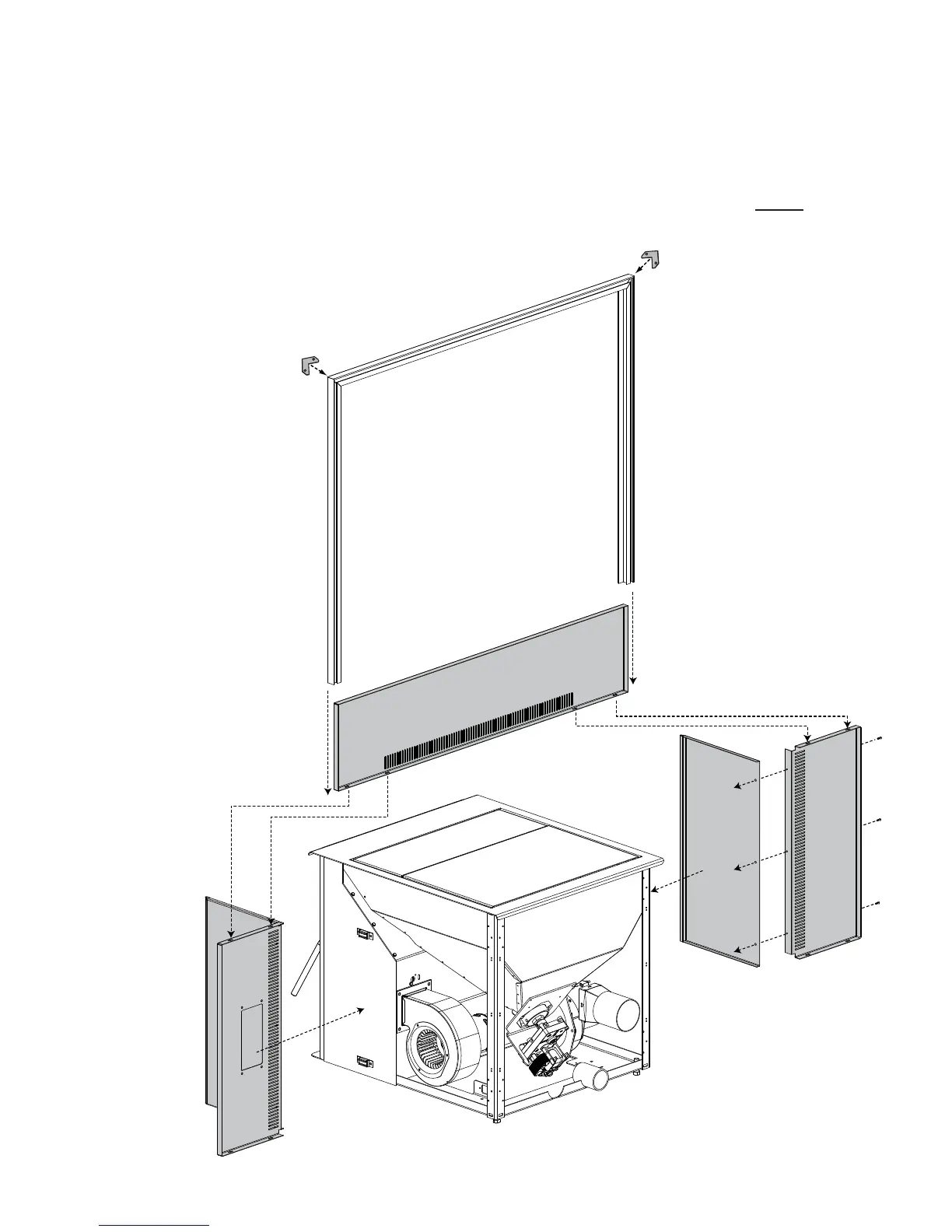

6.4 FLASHING INSTALLATION
A. Secure the left fl ashing to the left side with the three screws provided. Repeat for the right side.
B. Side panels are attached to the fi rebox by the three magnets per side.
C. Lower the top panel, aligning the slots in the top panel with the holes in the side panel.
D. Secure the top panel by to the side panels with the screws and washers provided. NOTE: Make sure
the side panels are tight to the fi rebox before securing the screws.
E. The fl ashing can be adjusted forward and
backward by re-adjusting the fl ashing
along the magnets.
F. Slide trim over
fl ashing.
TOP
PANEL
TRIM
LEFT
SIDE
LEFT
FLASHING
RIGHT
SIDE
RIGHT
FLASHING
