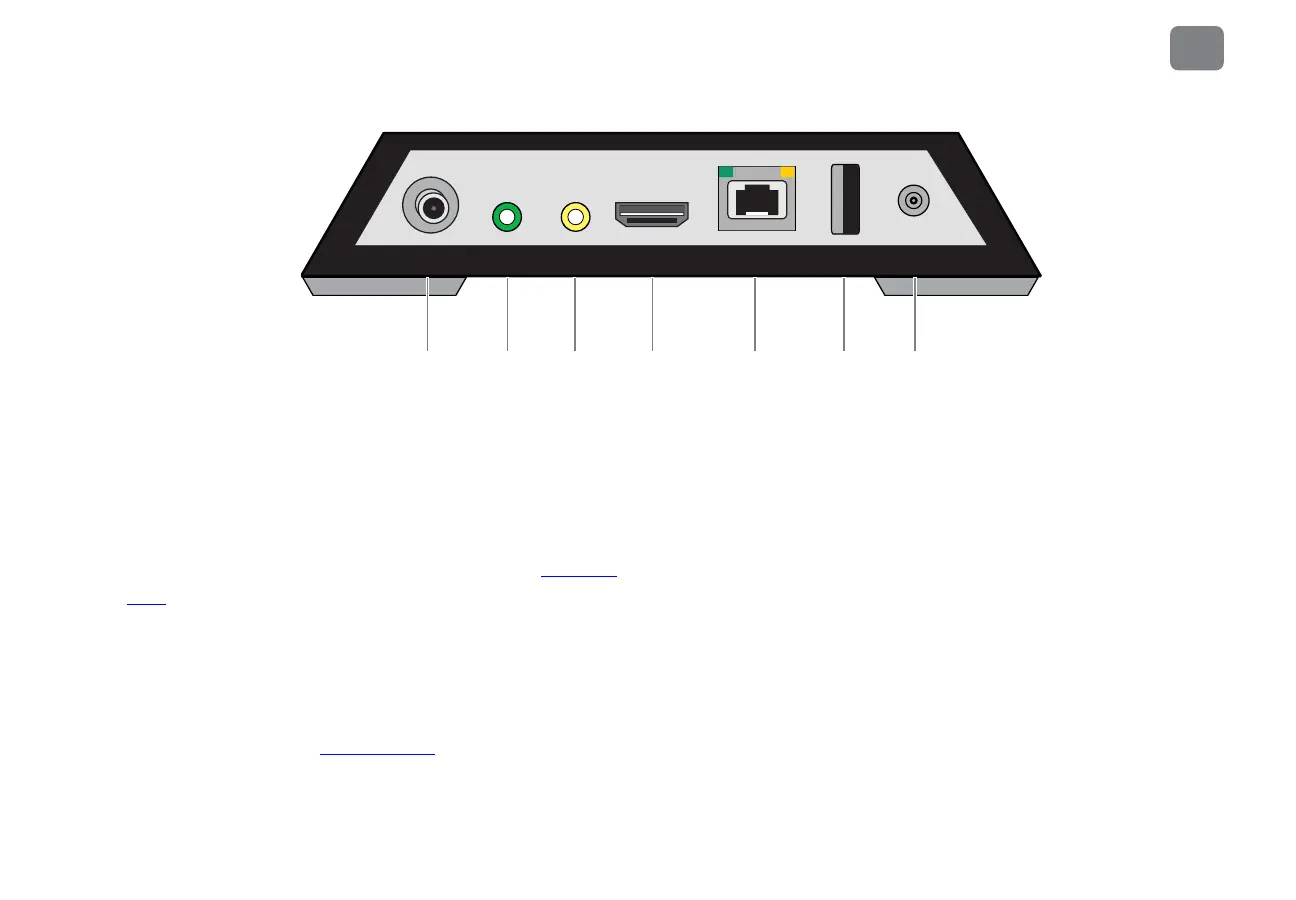

Back panel reference
MoCA
®
. If using a MoCA home network, connects the TiVo
Mini to your home network. Connect the Coaxial RF cable
coming from the wall to this jack.
Component Video Output. Connects to a TV or A/V system to
provide video only. Component video provides a high-definition
picture using a Component video cable available at tivo.com/
store. Connect a separate cable (like the Composite
(A/V) cable below) for audio.
Composite Audio/Video Output (A/V). Connects to a TVor A/V
system to provide audio and video. Composite video provides
very good standard definition picture quality using a Composite
video cable available at tivo.com/store
. It does not provide high-
definition video.
HDMI
®
Port. Connects to a TV, A/V receiver, or home theater
system. The HDMI port provides a pure digital connection for
high-definition video and digital audio all in one cable.
Ethernet. Use this jack to connect the TiVo Mini to your home
network using an Ethernet cable.
USB. Reserved for future use.
Power. Connects to A/C power. CAUTION: TO PREVENT
ELECTRICAL SHOCK, MATCH WIDE BLADE OF PLUG
TO WIDE SLOT, AND FULLY INSERT. See “Safety
instructions” on page 54.
12VDCMoCA COMPONENT A/V HDMI ETHERNET USB
