TKS 6150 - Film Overlap; Film Collector; Applicutter Knife

A
I6150_40
I6150_32
I6150_15
Tks Operator’s manual
23

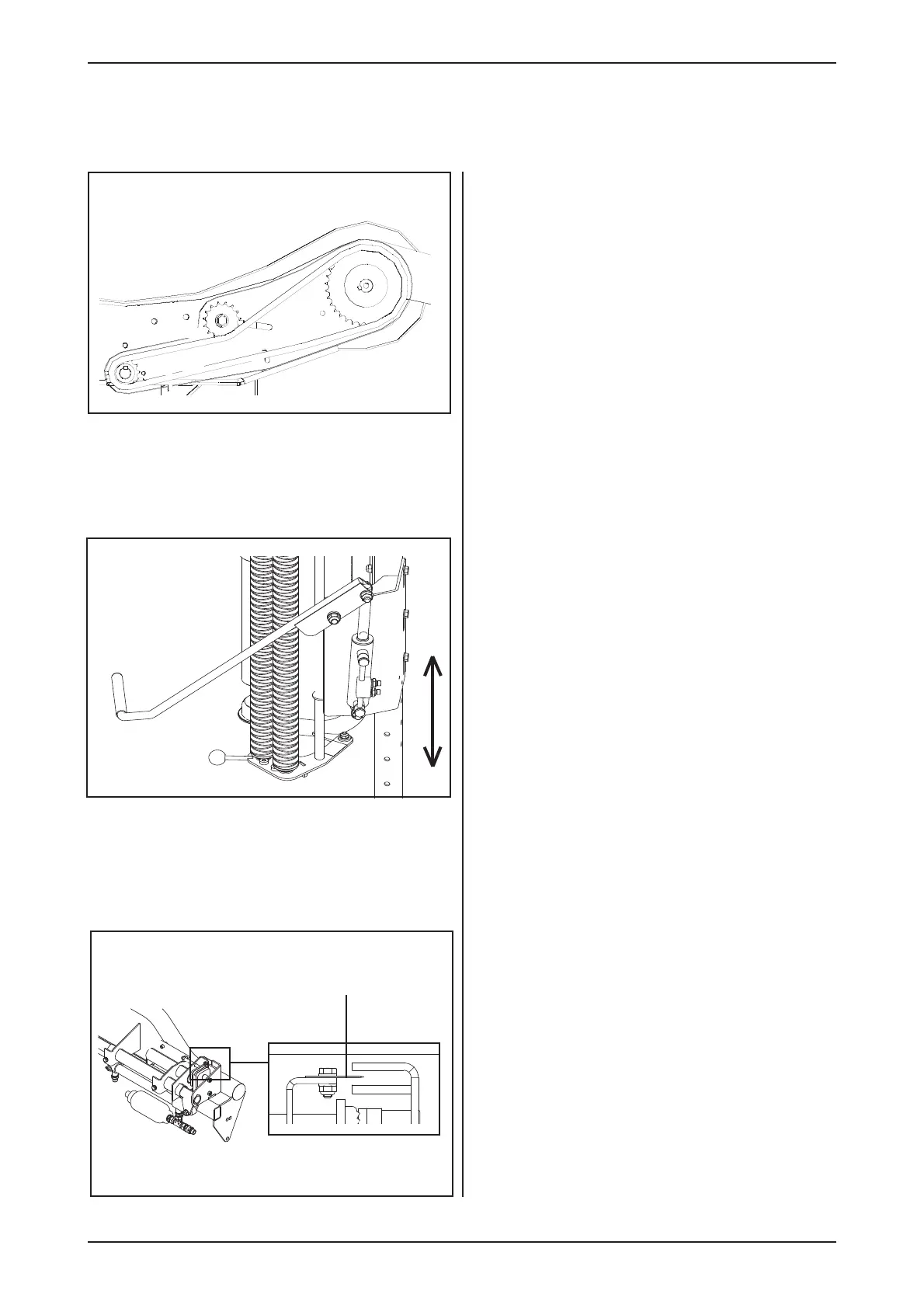

Fig. 30
Fig. 31
The machine is factory fi tted with two sprockets.
One sprocket with 12 teeths and the other 34.
This will give a fi lm overlap 2+2+2......
See Fig. 30
1.9 Film overlap
1.10 Film collector
The fi lm collector is collecting and guiding the
fi lm into the fi lm applicutter.
The collector can be adjusted up or down to get
the optimal fi lm cut.
See Fig. 31
Fig. 32
1.11 Applicutter knife
The applicutter knife A is factory fi tted.
But if the knife has to be replaced due to wear
or rust, the knife must be readjusted.
Allthough it is factory fi tted the knife must be
fi ne-adjusted in some cases, depending on the
type of fi lm being used.
Se Fig. 32
