TKS 6150 - 5 Bale Wrapper Computer Control

ESC
ESC
ENTER
ENTER
STOP
START
Tks Operator’s manual
34
ESC
ESC
ENTER
ENTER
STOP
START

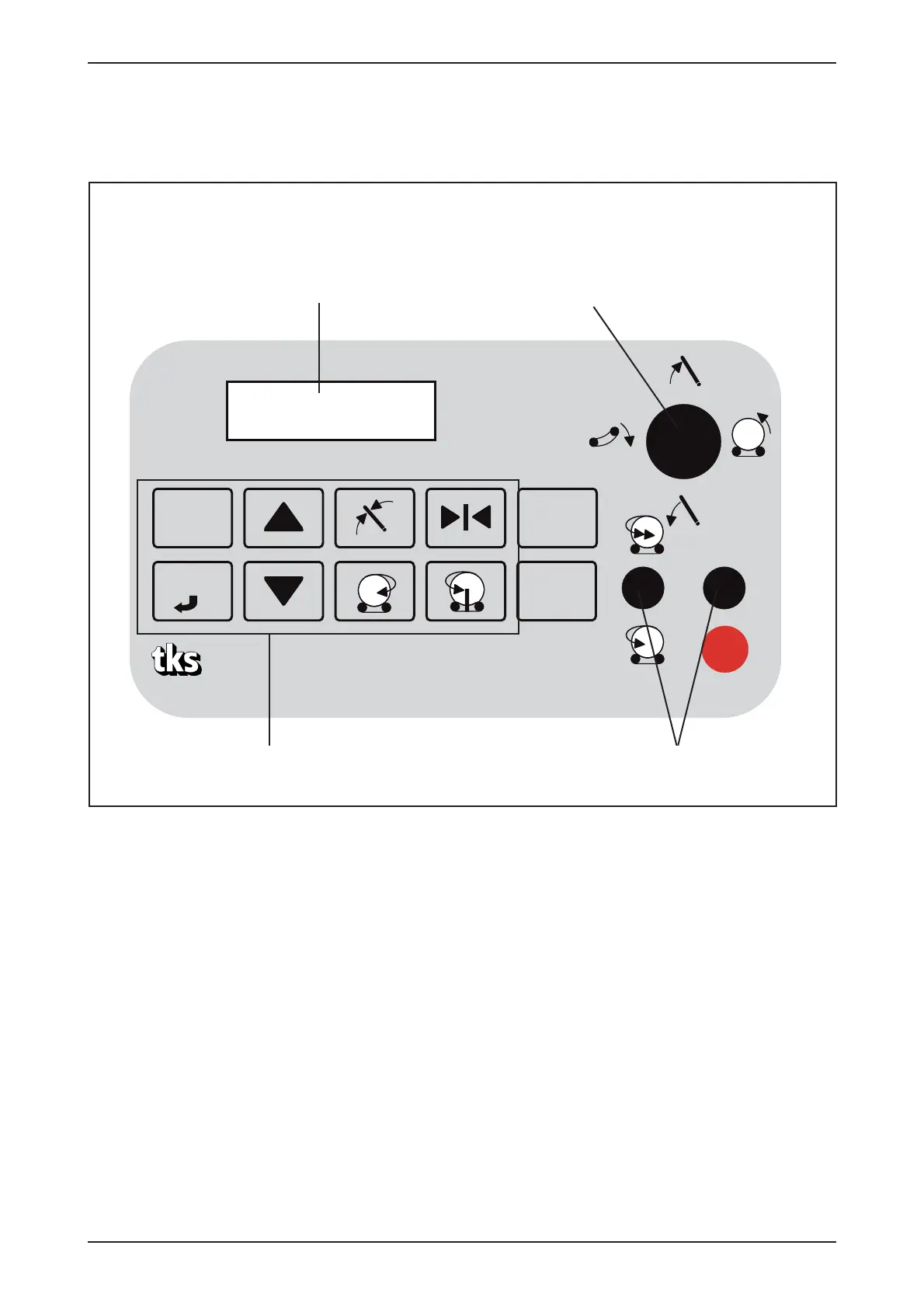

4-way joystick
8 membrane keys 2-way toggle switches
2-line graphical display
Fig. 40
5 Bale wrapper computer control
The bale wrapper computer control system includes two main components:
• a multi control module (black box fi tted on the machine)
• and control panel.
Fig. 40
The machine can be operated in:
- fully automatic mode (loads, wraps, unloads the bale, followed by a 1/4 turn table revolution to
bale load position without operator intervention).
- semi-automatic mode (possibility to stop before wrapping commences and before bale tip).
- manual mode (using toggle switches and joystick).
