When the Encoder has a Static IP
A stream is transmitted from the encoder in response to a connection request from
the decoder. Up to 20 decoders can be simultaneously connected for each encoder. (In
this manual, this type of connection is referred to as a normal connection.)

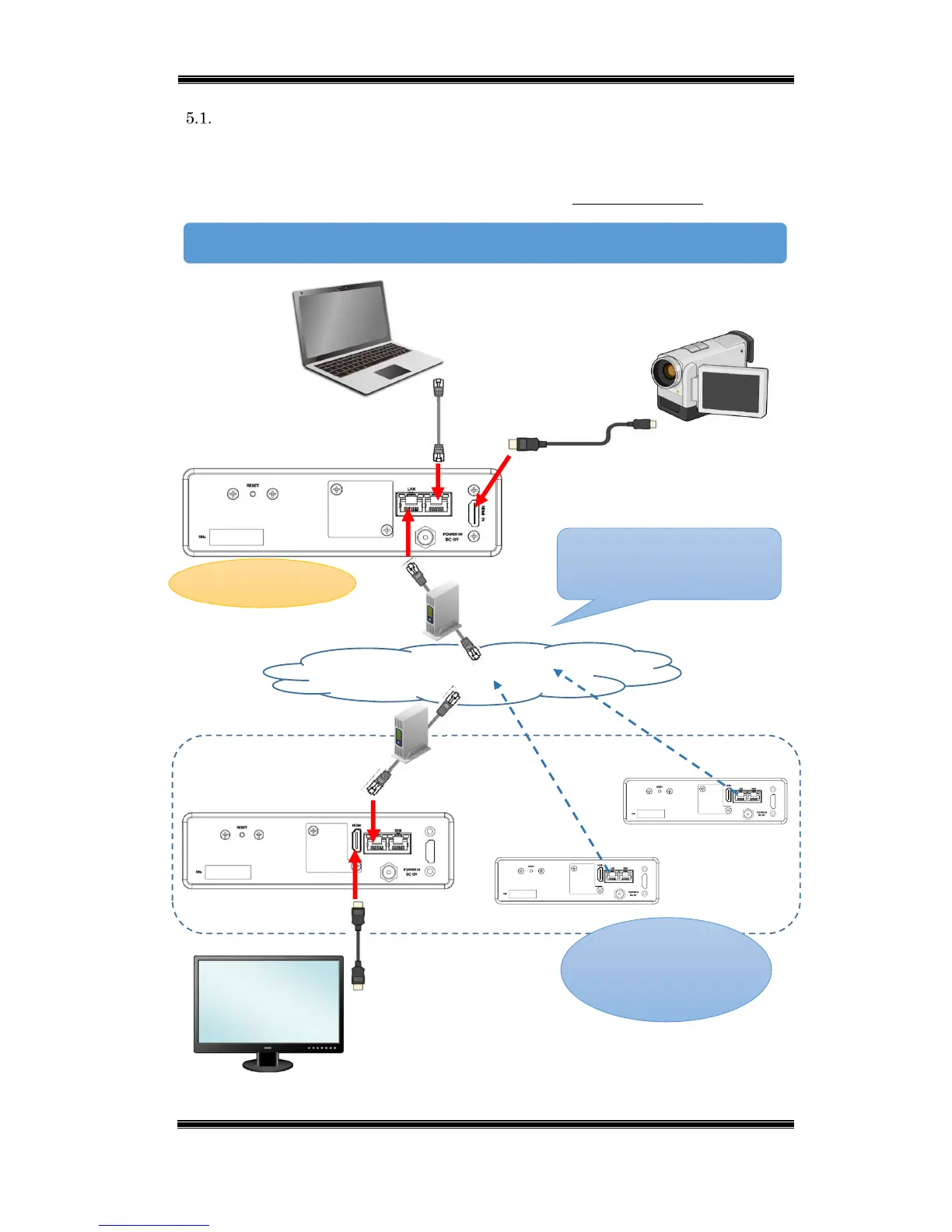

Connection Diagram
Connection request from
the decoder to the encoder
LAN cable
HDMI cable
Encoder
Decoder
Decoder
Decoder
Internet
Setup PC
Camera
Monitor
Static global IP
Camera cable
Up to 20
units can
be connected at
the same time.
