Compact IP Codec User's Manual
36
T
echno Mathematical Co.
, Ltd.
2140P
5.3.2.
Connection Example 2
Connection is possible using a W
i-Fi mobile router and wireless LAN converter
. For
the setup procedure, refer to the user documentation that comes with the devices
being used.

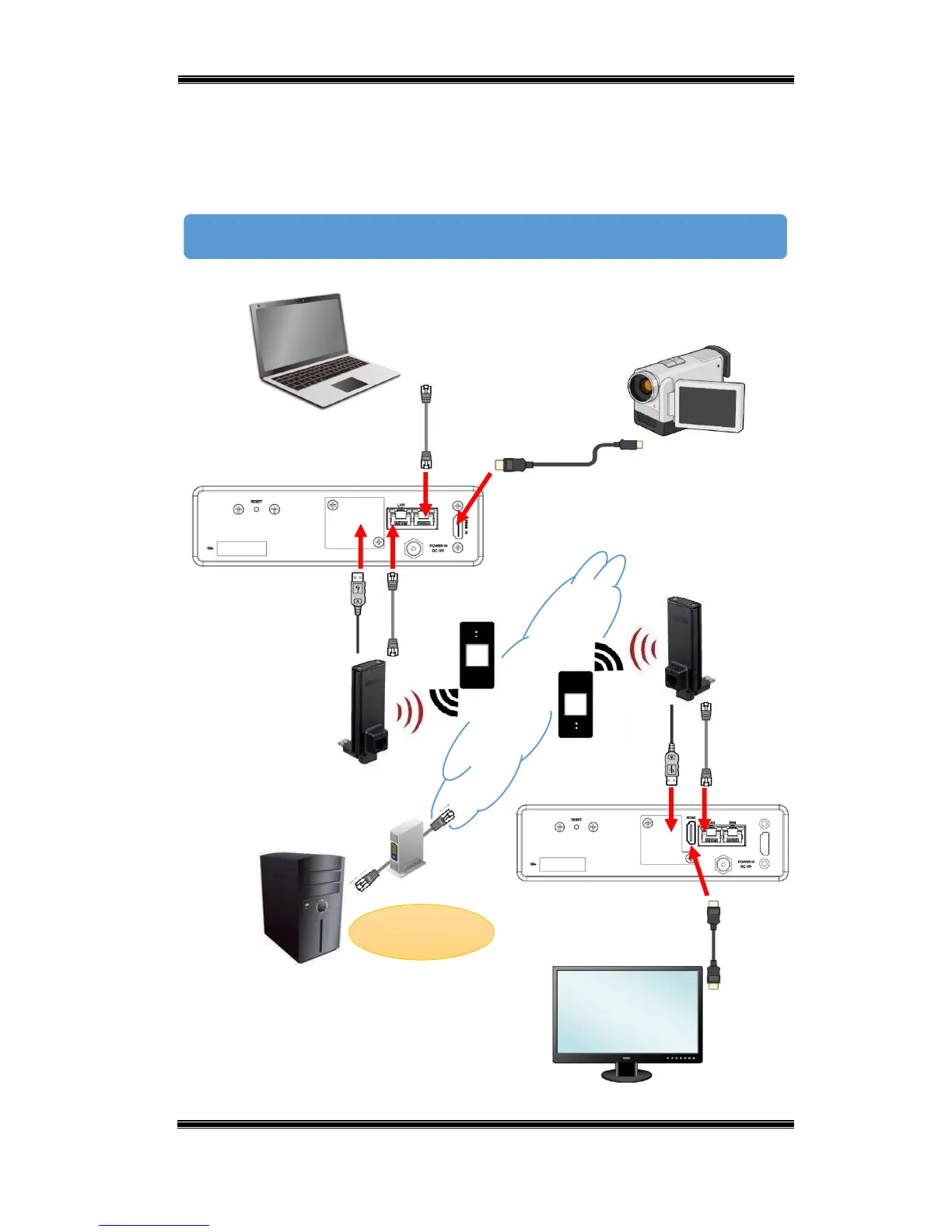

Connection Diagram
W
ireless
LAN
converter
LAN cable
HDMI cable
Encoder
Decoder
Mobile router
Setup PC
Camera
Camera cable
W
ireless
LAN
converter
Mobile router
IP server
Internet
Static global
IP
*A
USB port is located under the rear panel cover
.
The wireless LAN converter U
SB is for power
supply purposes.
Monitor
36
38
