Compact IP Codec User's Manual
56
Techno Mathematical Co., Ltd.
2140P
9.

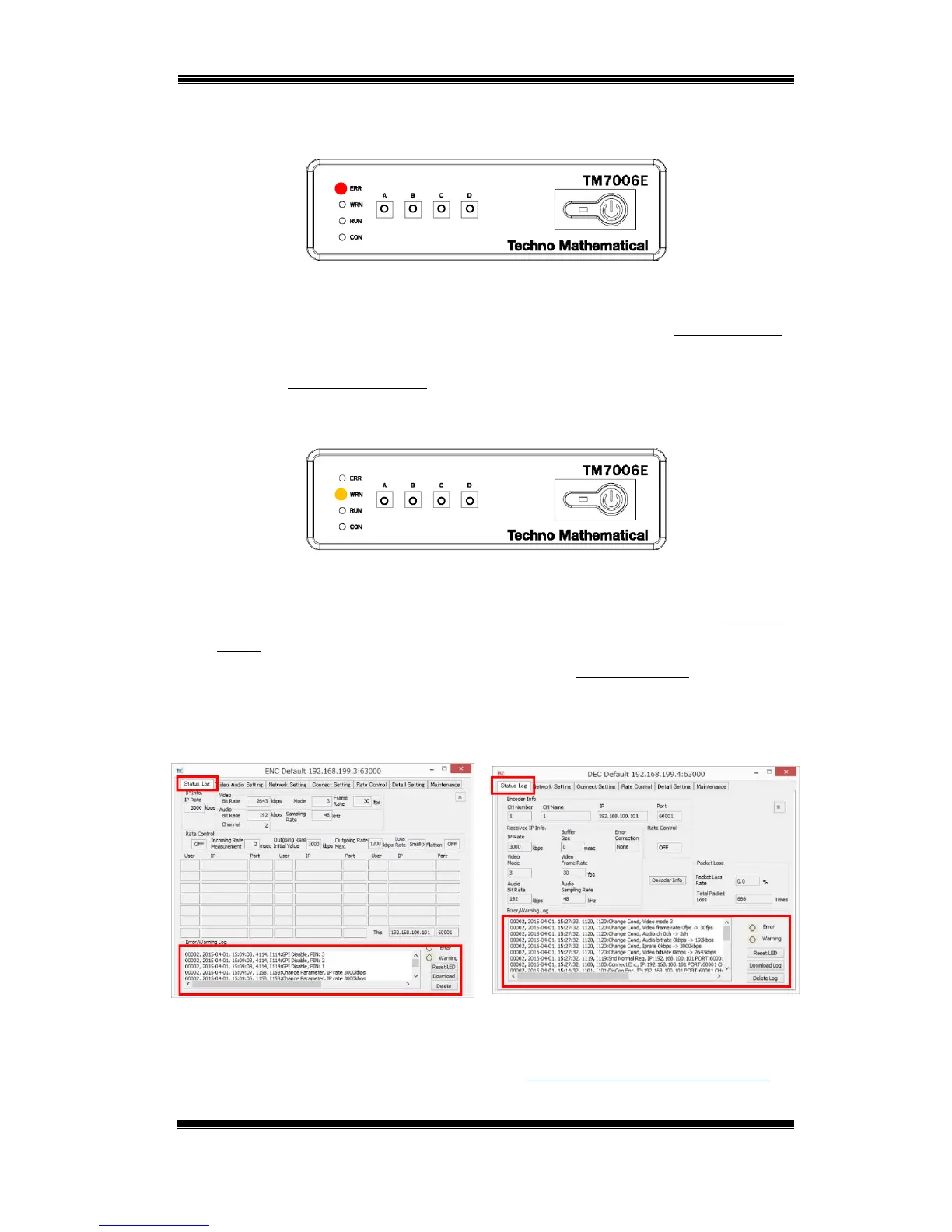

Error and Warning Indicators
The ERR LED (red) lights when an error occurs.
Figure 9-1 ERR LED
The behavior of the ERR LED depends on the error type.
(1) The ERR LED goes out when the cause of the error is eliminated. : Recorded in log.
(2) The ERR LED does not go out until power is turned off or the reset button is
pressed. : Not recorded in log.
The WRN LED (orange) lights when a warning occurs.
Figure 9-2 WRN LED
The behavior of the WRN LED depends on the warning type.
(1) The WRN LED goes out when the cause of the warning is eliminated. : Recorded
in log.
(2) The WRN LED goes out after about five seconds. : Recorded in log.
Recorded log entries can be viewed on the Status Log tab of the application software.
Encoder
Figure 9-3 Status Log
*Though information is also displayed, it is not recorded in the log.
For details about errors and warnings, refer to "Appendix 1. Errors and Warnings."
