Compact IP Codec User's Manual
35
T
echno Mathematical Co.
, Ltd.
2140P
5.3.1.
Connection Example 1
Connection is possible using a mobile data communication card compatible wireless
LAN router
. TMC recommends use of a Micro Research MR-GM2 router
. For the
MR-GM2 setup procedure and details about the connection procedure, see the
separate connection manual.

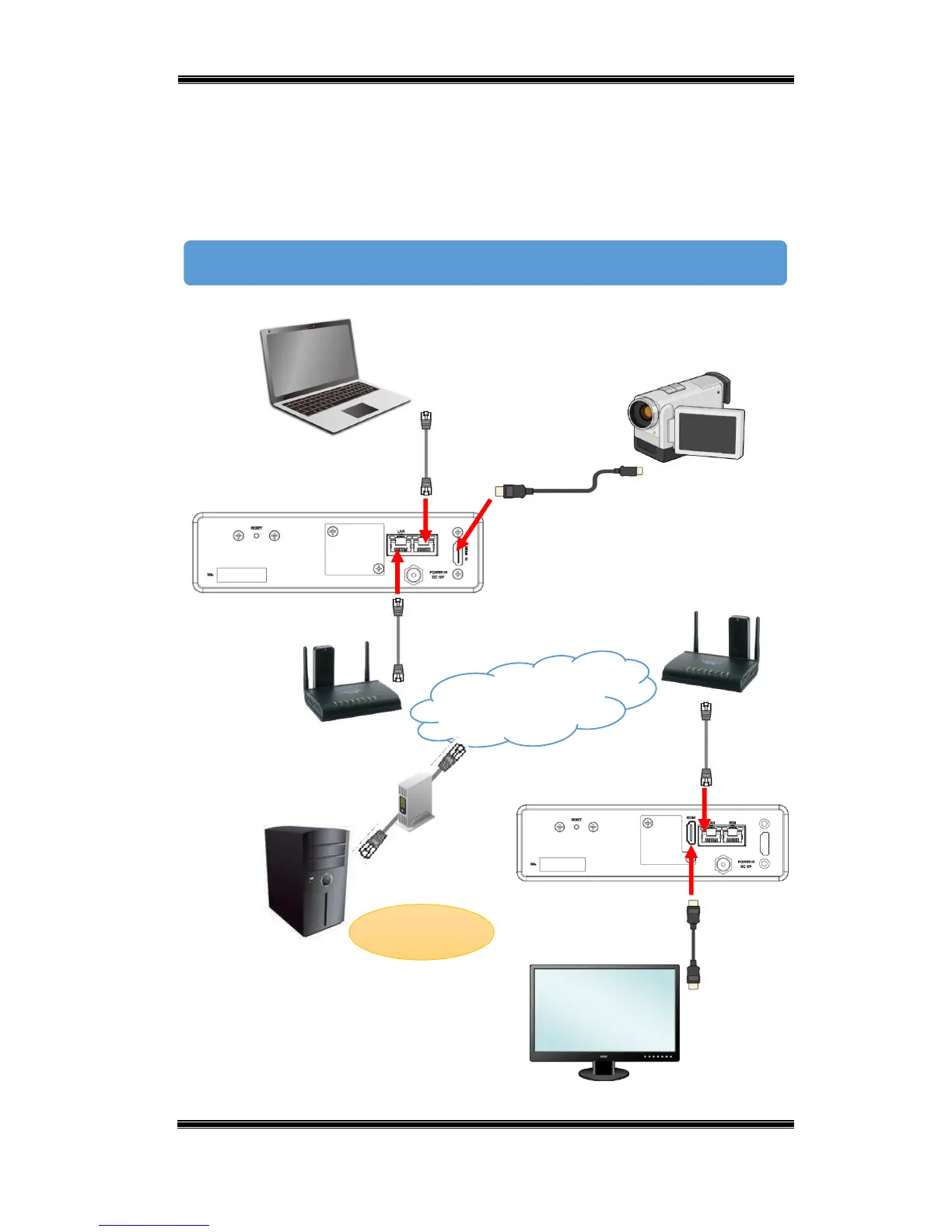

Connection Diagram
LAN cable
HDMI cable
Encoder
Decoder
Setup PC
Camera
Monitor
Camera cable
IP server
Static global
IP
Internet
MR-GM2 mobile data
communication card
MR-GM2 mobile data
communication card
35
37
