TMC TM7006E User Manual

Compact IP Codec User's Manual
40
Techno Mathematical Co., Ltd.
2140P

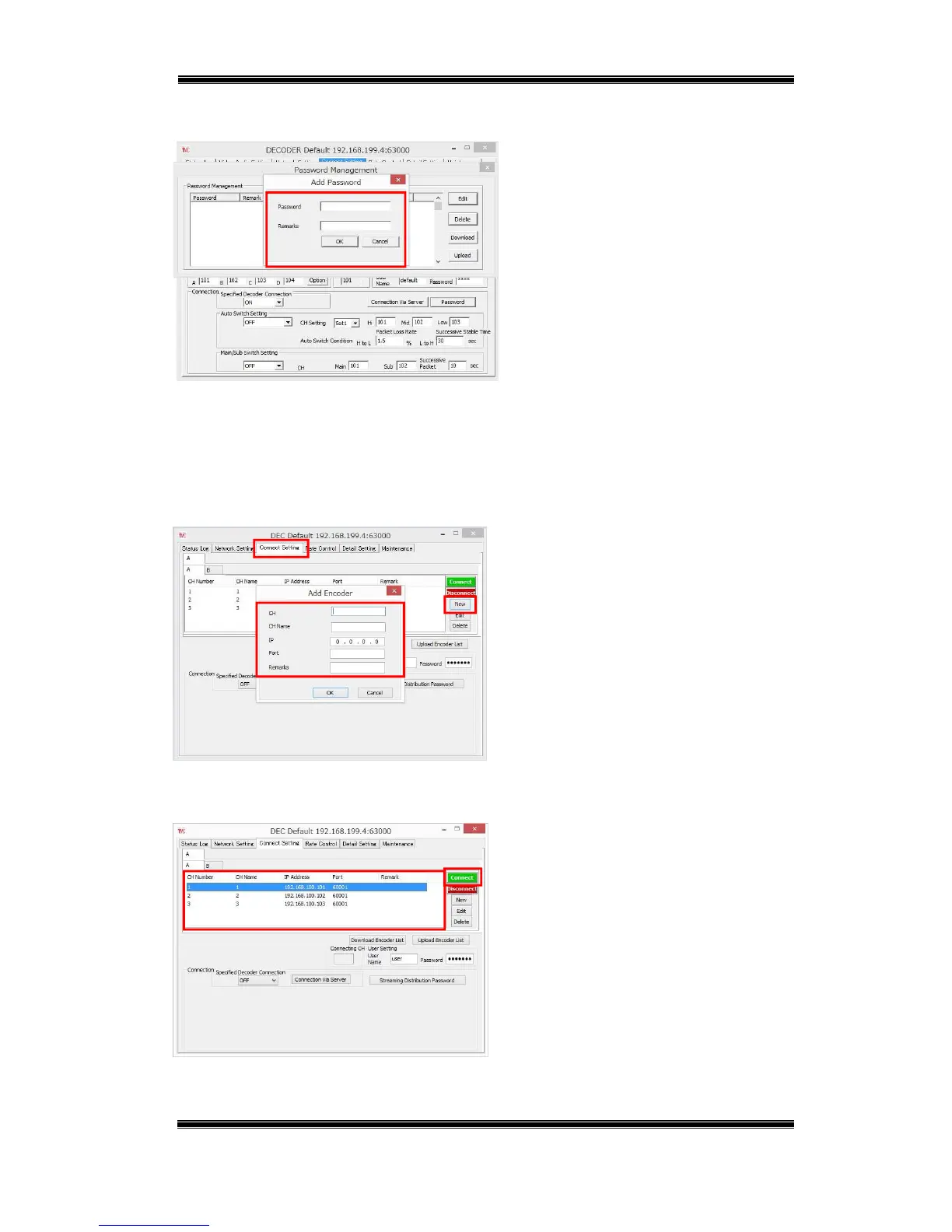

Figure 6-3 Decoder (parent) – Add Password
■ Enter the password of the decoder
(child) and then click [OK].
*Remarks can be left blank.
(2) Decoder (child) Setup
Connect the setup PC to the decoder (child) remote port and configure the settings
below.
Figure 6-4 Decoder (child) – Add Password
■ Start up DECODER.
■ On the Connect Setting tab, click
[New].
■ Enter the decoder (parent) information
and then click [OK].
*Remarks can be left blank.
Figure 6-5 Decoder (child) – Connect
■ Select the decoder (parent) you want to
connect and then click [Connect].
If the parent decoder and child decoder
passwords match, the stream will be
distributed from the parent to the child
decoders.
