Toa VX-2000 Series - Rack Mounting

Chapter 8: INSTALLATION AND SETTING PROCEDURES (HARDWARE)

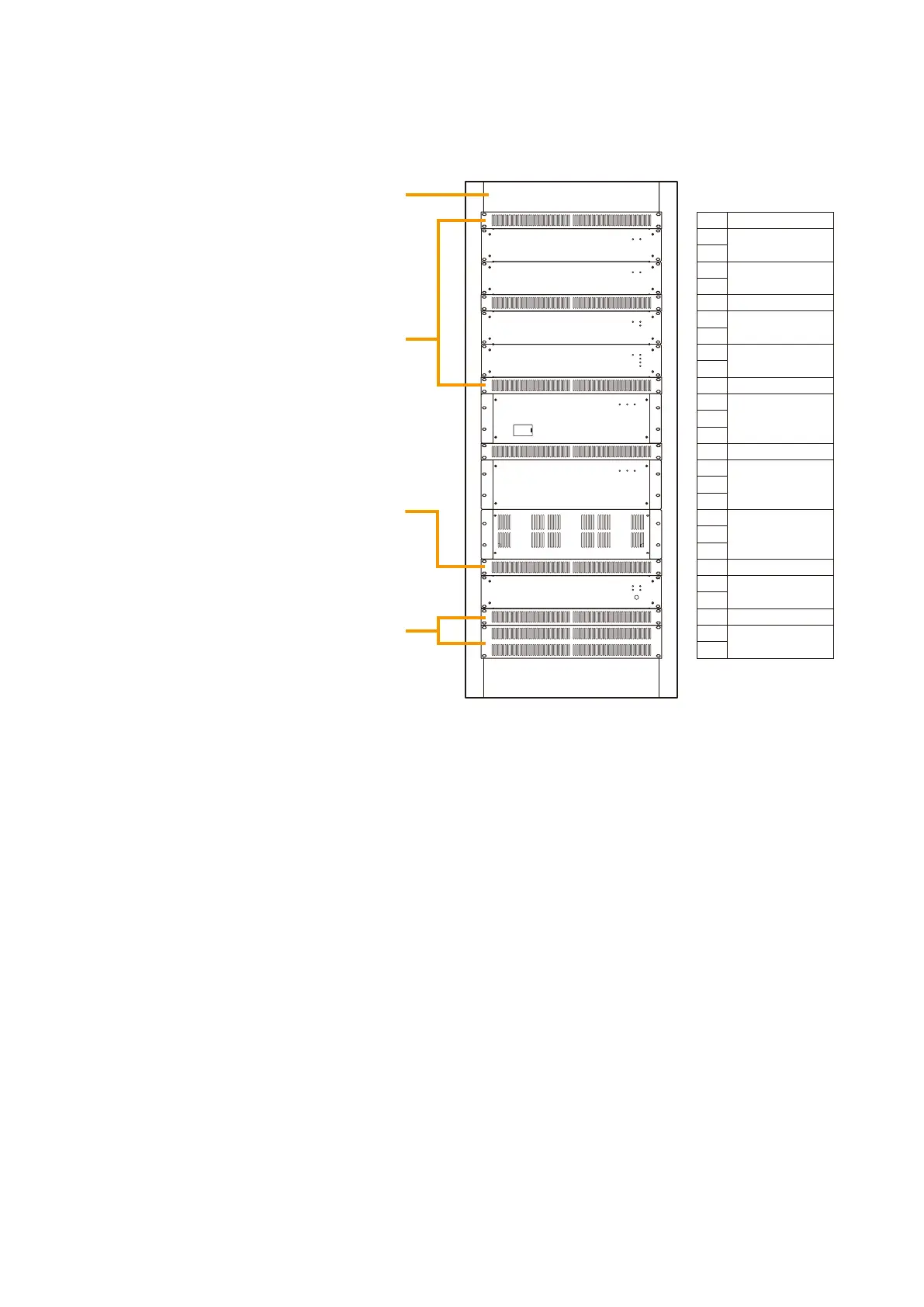

6. RACK MOUNTING
8-44
PF-013B
VX-2000
PF-013B
VX-2000SF
VP-2421
PF-013B
VP-2064
VP-2241
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
VX-2000PF
VX-2000DS
PF-013B
VP-2122
PF-013B
PF-013B
PF-023B
Rack
6. RACK MOUNTING
Observing the following precautions, mount the equipment in the rack.
• Mount the power amplifier as high as
possible in the rack.
• Mount at least 1 perforated panel (1 rack
unit size) above and below every 2 power
amplifier units.
•Mount a perforated panel above the
VX-2000DS to facilitate its internal
fuse replacement because fuse can be
accessed through the rear most section of
the top panel.
Notes
• When the amplifiers are installed, the supporting brackets shall be used in the rack to safely mount and
securely support the units.
• The perforated panel is recommended in place of space.
• TheVX-2000DS,VX-2000PF,andVX-200PSmustbeinstalledinthecabinetrackofCRseries(modelsCR-
15, CR-22, CR-27, CR-35, CR-40, and CR-44).
• TheVX-2000DSandVX-2000PFmustbesupportedbythesupportingbrackets.
• Whentherackisinstalledinenvironmentwithanambienttemperatureofmorethan30ºC,thenthe"FAN
KIT"mustbeinstalled.Itcanbecontrolledbyatemperaturesensorwhichshallactivatethefanat40ºCor
less.
• When batteries are installed in the rack,
place them directly below the VX-2000DS
so that they can perform temperature
compensation for the charging voltage.
In this case, use a perforated panel in front
of the rack to avoid excessive temperature
rise around the batteries. For installing
batteries, refer to
the Instruction Manual
attached to the VX-2000DS
.
• It is recommended that a blower unit be
installed at the uppermost position for
efficient exhaust of inner heated air.
