Chapter 9: CONNECTIONS
7. CABLE DISTANCE BETWEEN COMPONENTS
9-39
[Required parts for modification (prepare separately)]
VX-200XR
M3
M4
X1
R15
SJP1
SJP2

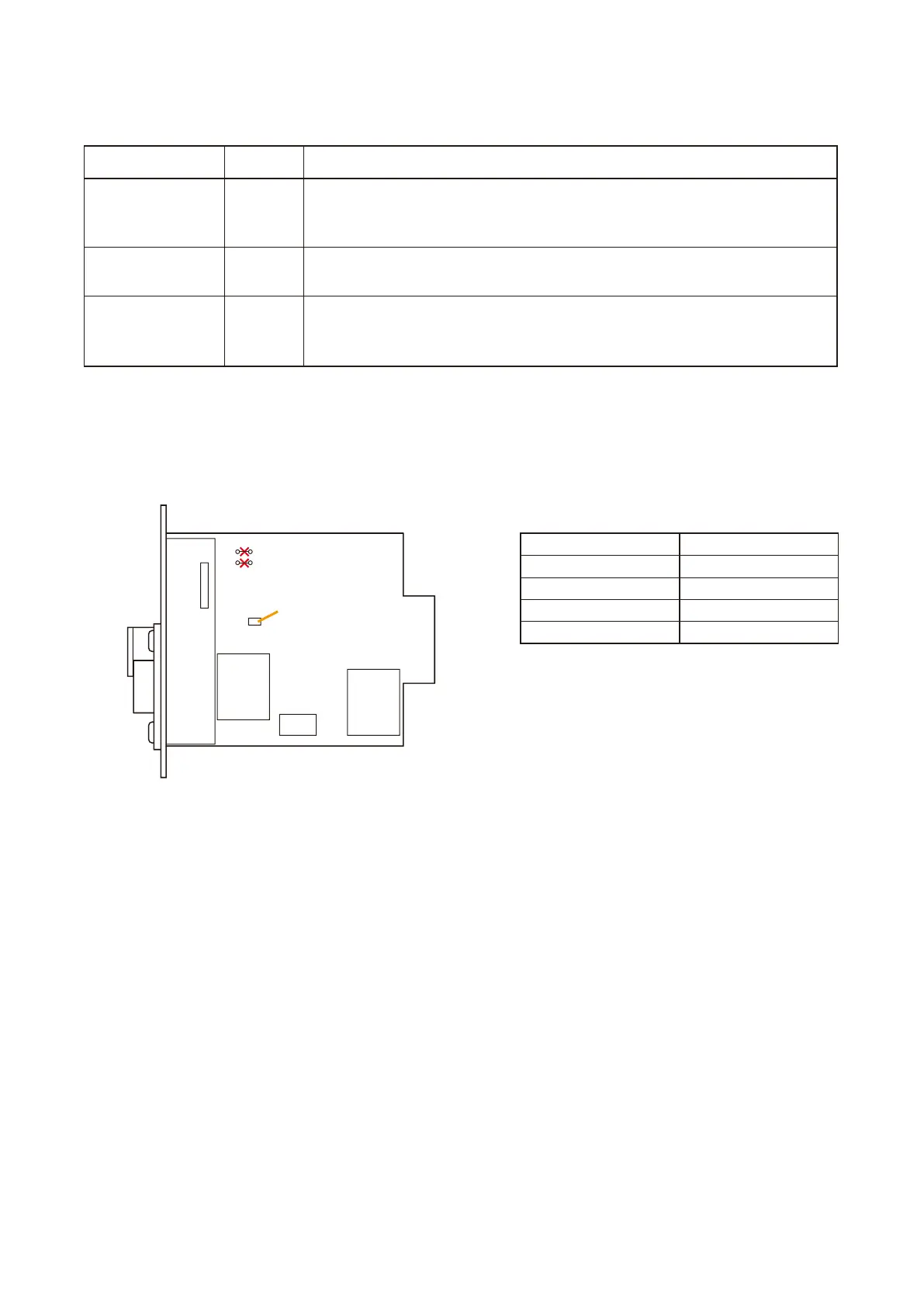

[Parts installation]
• Installthesepartsasillustratedbelow:
•ModifyingtheVX-200XR
• CutSJP1andSJP2withnippersorothercutters.
Parts Quantity Description
100Ωresistor 1 1/4W or 1/5W, 5 mm pitch
EquivalenttoTOApartcode:112-31-041-10(R25100Ω5%)
 orTOApartcode:112-71-025-70(R20100Ω5%)
FTT-10A 2 Twisted pair free topology transceiver
TOA part code: 111-31-281-60
Crystal oscillator 1 3 pins (1: Vcc, 2: GND, 3: OUT), 2.5 mm pitch
Equivalent to TOA part code: 115-46-055-50 (JXO-5 10.00 MHz)
A crystal oscillator of 5 MHz may be used.
Designator Description
R15 100Ωresistor
M3 FTT-10A
M4 FTT-10A
X1 Crystal oscillator
