13
DIGIT
AL TORQUE WRENCH TESTER DO
TE4-G
7-3.
Operation

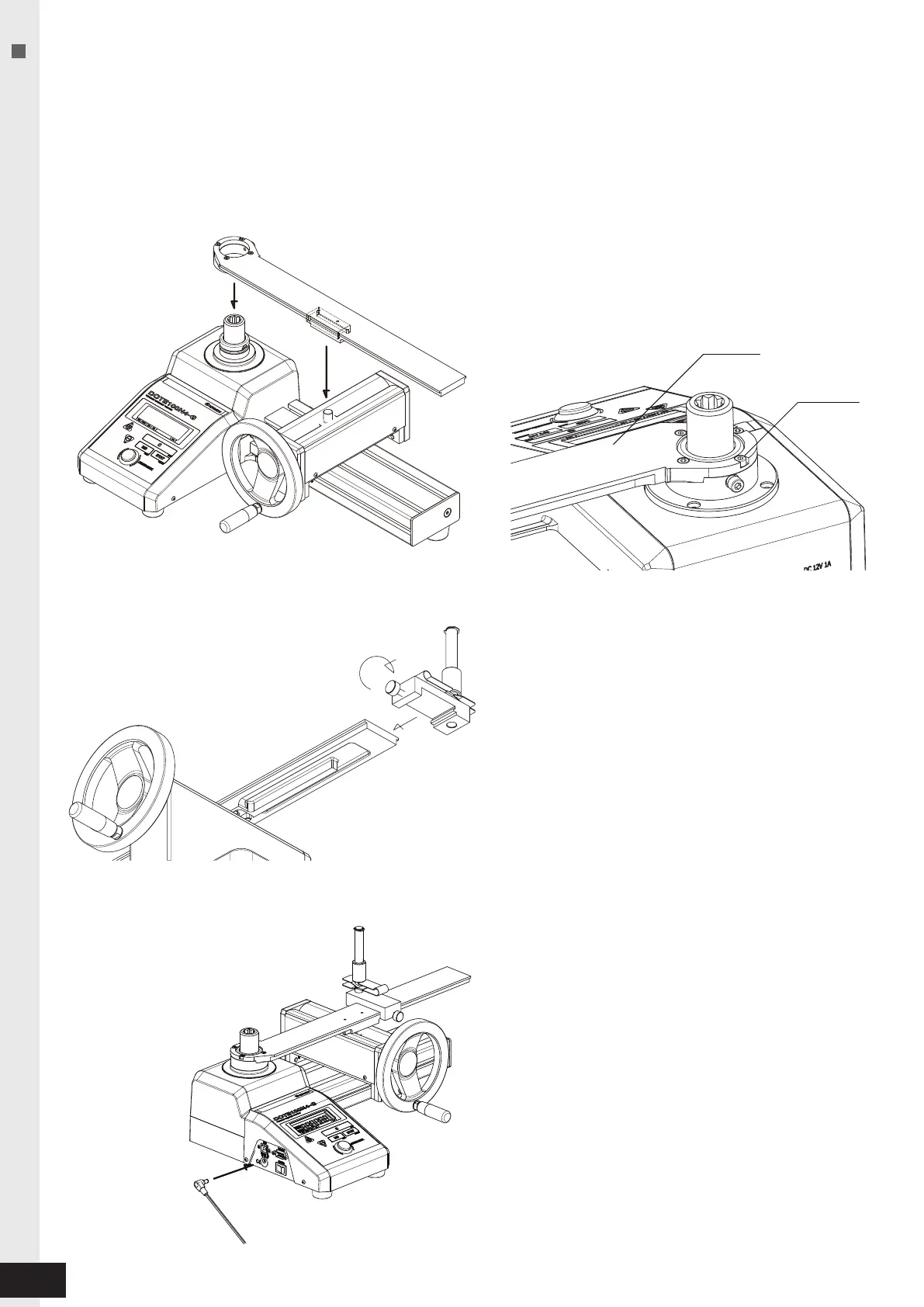

(1) Place DOTE4-G on a horizontal sturdy workbench.
(2) Put Operation Sticker on DOTE4-G.
(3) Put the Plate on to DOTE4-G and x the
Plate with the set screw on the side.
(4) Place the Pole Holder
Assembly on the Plate.
(5) Connect the attached
AC adapter to DOTE4-G and conrm that power switch is turned off.
Then, insert the plug of the power cable into an power supply receptacle.
SetScrew
Plate
15
17
