AL TORQUE WRENCH TESTER DO
TE4-G
(1
1) Conrm the calibration torque values of the torque wrench.

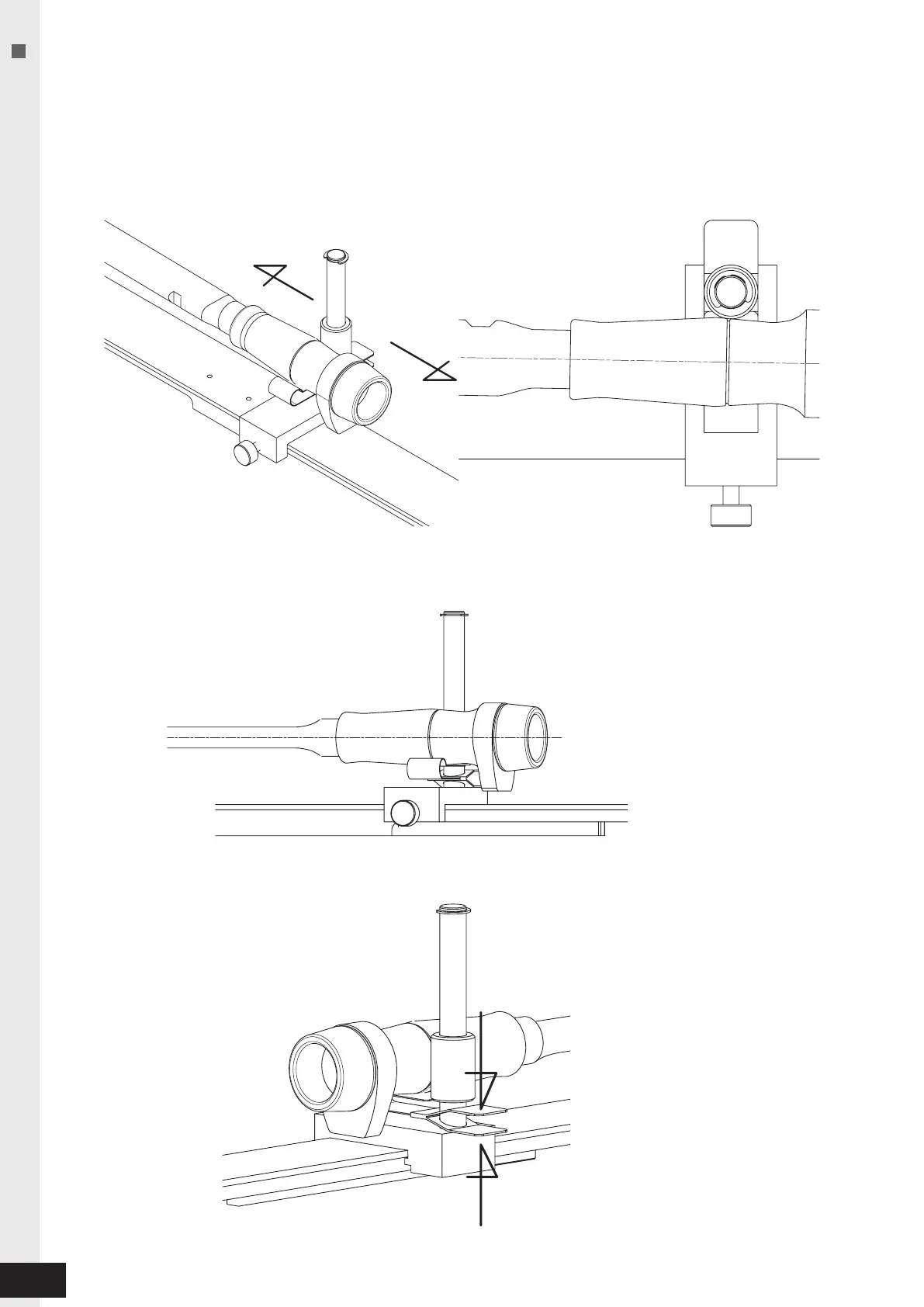

(12) Move the Pole Holder assembly to the effective length of the torque wrench and
adjust the height of the Pole Holder Plate to keep the torque wrench horizontal.
Conrm the measuring stroke of the torque wrench before calibration.
17
19
Table of Contents
Default Chapter
3
Table of Contents
3
1 Features
4
2 Components
4
3 Specifications
4
Common Specification
4
Dimensions
5
Torque Range and Accessories
6
4 External View
7
Display and Operation Keys
7
Power Source and Output
8
5 Function and Settings
9
RUN Mode, Continuous Value Display
9
PEAK Mode, Maximum Value Display
9
Upper/Lower Limit Value Selection
9
OK/NG Judgment and Data Memory
9
Auto Memory/Reset
9
Deletion of Data
9
Statistical Processing Function * Number of Samples, Max-MIX-Mean Value
10
Auto Zero Adjustment
10
Over-Torque Alarm
10
5-10. Error Display
10
6 Various Settings
11
Setting Items
11
Registration of Upper and Lower Limit Values
12
Parameter Settings
13
7 How to Calibrate Torque Wrenches
15
Calibration Conditions
15
Precaution in Calibration
15
Operation
20
8 External Output Function
20
8-1. Printer Output
20
PC Output
22
Operation with Communication Command
23
9 Optional Accessories
25
10 Error Message
26
