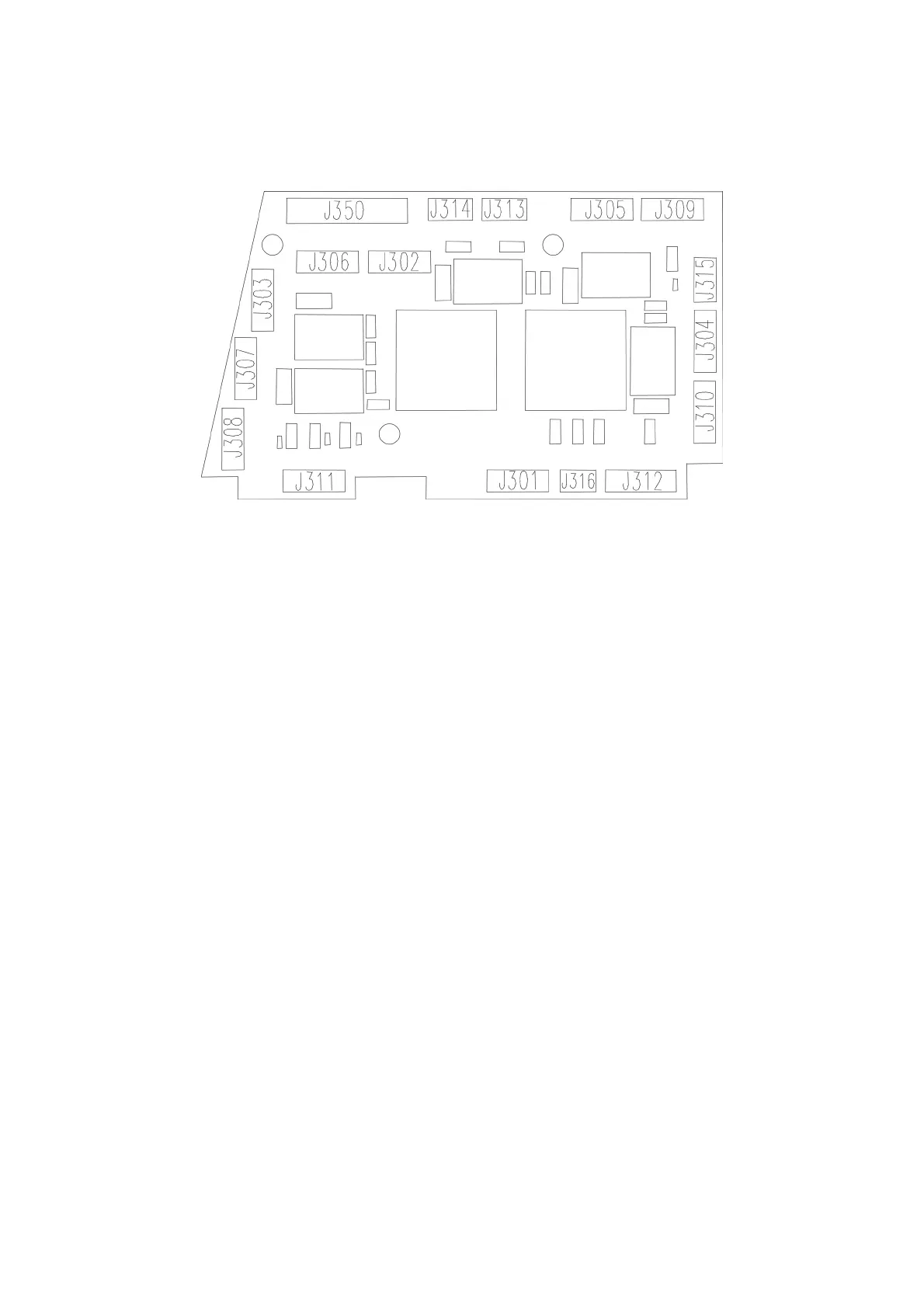

3-2-2 L PCB
J301 : The spherical motor No. 1 (S1) is connected.
J302 : The spherical motor No. 2 (S2) is connected.
J303 : The spherical motor No. 3 (S3) is connected.
J304 : The cylindrical motor No. 1 (C1) is connected.
J305 : The cylindrical motor No. 2 (C2) is connected.
J306 : The auxiliary lens motor (AX) is connected.
J307 : The rotary prism motor (RP) is connected.
J308 : The RPCC1 motor (RP1) is connected.
J309 : The RPCC2 motor (RP2) is connected.
J310 : The cylindrical axis motor (CA) is connected.
J311 : The spherical lens zero detection sensor is connected.
J312 : The cylindrical lens zero detection sensor is connected.
J313 : The RPCC1 zero detection sensor is connected.
J314 : The RPCC2 zero detection sensor is connected.
J315 : The cylindrical axis zero detection sensor is connected.
J316 : The cornea illumination LED is connected.
J350 : The left eye flexible cable is connected.
