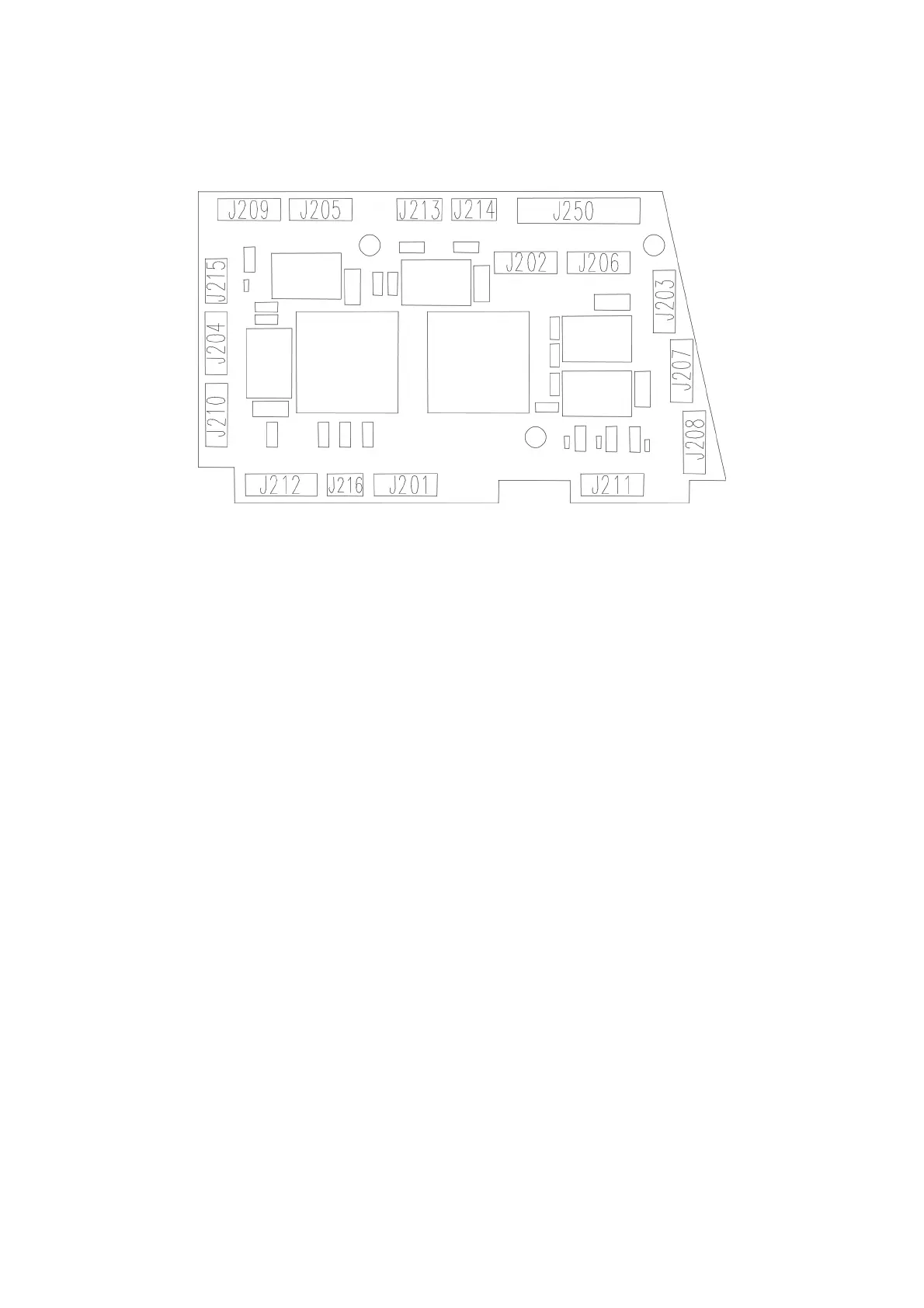

3-2-3 R PCB
J201 : The spherical motor No. 1 (S1) is connected.
J202 : The spherical motor No. 2 (S2) is connected.
J203 : The spherical motor No. 3 (S3) is connected.
J204 : The cylindrical motor No. 1 (C1) is connected.
J205 : The cylindrical motor No. 2 (C2) is connected.
J206 : The auxiliary lens motor (AX) is connected.
J207 : The rotary prism motor (RP) is connected.
J208 : The RPCC1 motor (RP1) is connected.
J209 : The RPCC2 motor (RP2) is connected.
J210 : The cylindrical axis motor (CA) is connected.
J211 : The spherical lens zero detection sensor is connected.
J212 : The cylindrical lens zero detection sensor is connected.
J213 : The RPCC1 zero detection sensor is connected.
J214 : The RPCC2 zero detection sensor is connected.
J215 : The cylindrical axis zero detection sensor is connected.
J216 : The cornea illumination LED is connected.
J250 : The left eye flexible cable is connected.
