44
Surveying

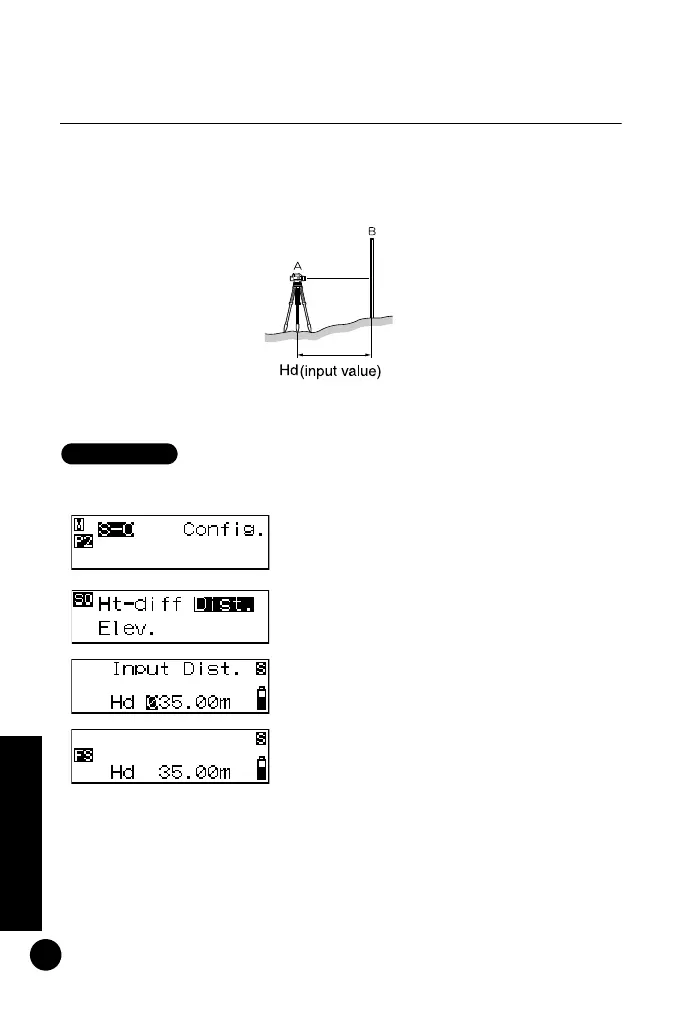

11.2 Setting Out Distance
By entering the distance (Hd) from a benchmark (point A),
you can find a ground point (point B) at a specified distance
from the benchmark.
The procedure below is for taking single measurements.
1 Set up the instrument at point A.
2 In menu mode, select "Set-out", then
select "Dist.".
3 Input the distance that you want to
stake out.
4 Measure the foresight.
The instrument calculates the differ-
ence between the measurement and
the input value, and displays the
result.
DL502-503.book 44 ページ ２０１０年４月５日 月曜日 午前９時４７分
To Next Page
