11
Introduction

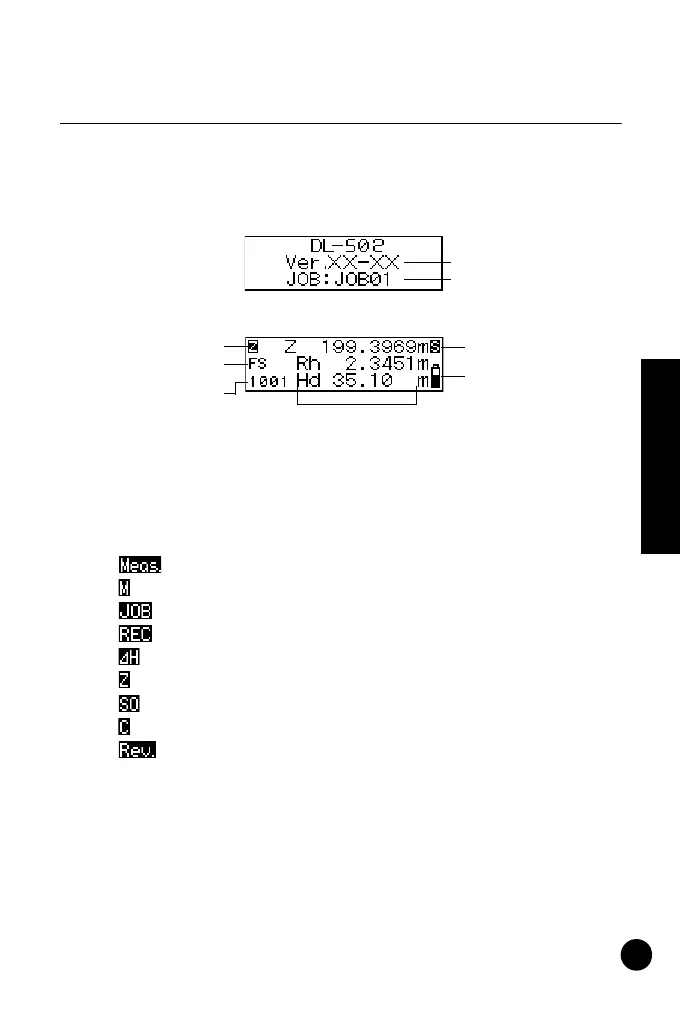

3.2 Display
The display includes the following marks which indicate the
operating status and current mode, and help the operator to
keep track of the measurement procedure.
• Point number display
The next point number to be recorded is displayed.
• Mode display
The displayed mark shows the current mode.
: Status mode or Measurement mode
: Menu mode
: JOB setting mode
: Record setting mode
: Height difference measurement mode
: Elevation measurement mode
: Setting out mode
: Configuration mode
: Data review menu
Version number
Currently selected
JOB
Measurement
Battery level
conditions
indicator
Mode indicator
Attribute•Measure-
Point number
ment step
Measurement values and other data
