2 FC-500 Handheld Field Controller Owner’s Manual
Getting Started
The FC-500 Handheld Field Controller™ from Topcon
Positioning Systems features Bluetooth and Wi-Fi. Standard
accessories include a lithium-ion battery pack, AC wall
charger, USB micro client sync cable, hand strap, and a
capacitive stylus and tether. A camera, GPS/GNSS, and
cellular data modem are options.

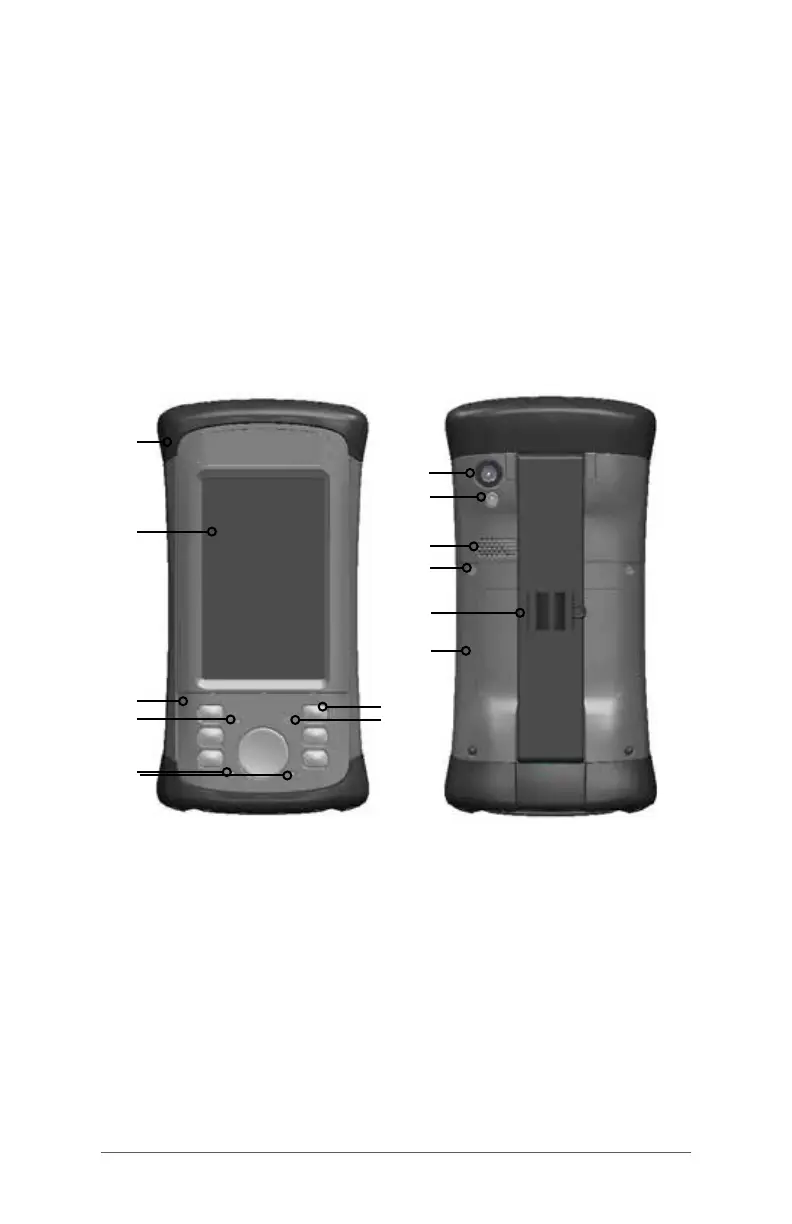

The Anatomy of the FC-500
Front and Back Features
1
5
2
4
6
7
1 Bumper, Top
2 Touchscreen
3 Keypad
4 Sensor (option)
5 Led Indicators (red
charging indicator on
the right, blue function
lock or green notication
indicator on the left)
6 Power Button
7 Microphone
8
9
10
11
13
12
3
8 Camera Window (option)
9 Camera Flash and Flashlight
Window (option)
10 Speaker
11 Screw Holding Battery Door
in Place (1 of 4 captive screws)
12 Hand Strap with Stylus
Holder and Tether Ring
13 Door to Battery
Compartment and Card Slots
