Data and Power Ports
The Net-G3A has ports on both the front and back panels.
The front panel has one port (Figure 1-3): Serial (7 pin ODU-MINI-
SNAP) – used for communication between the receiver and an
external device. This is the receiver’s serial port A.

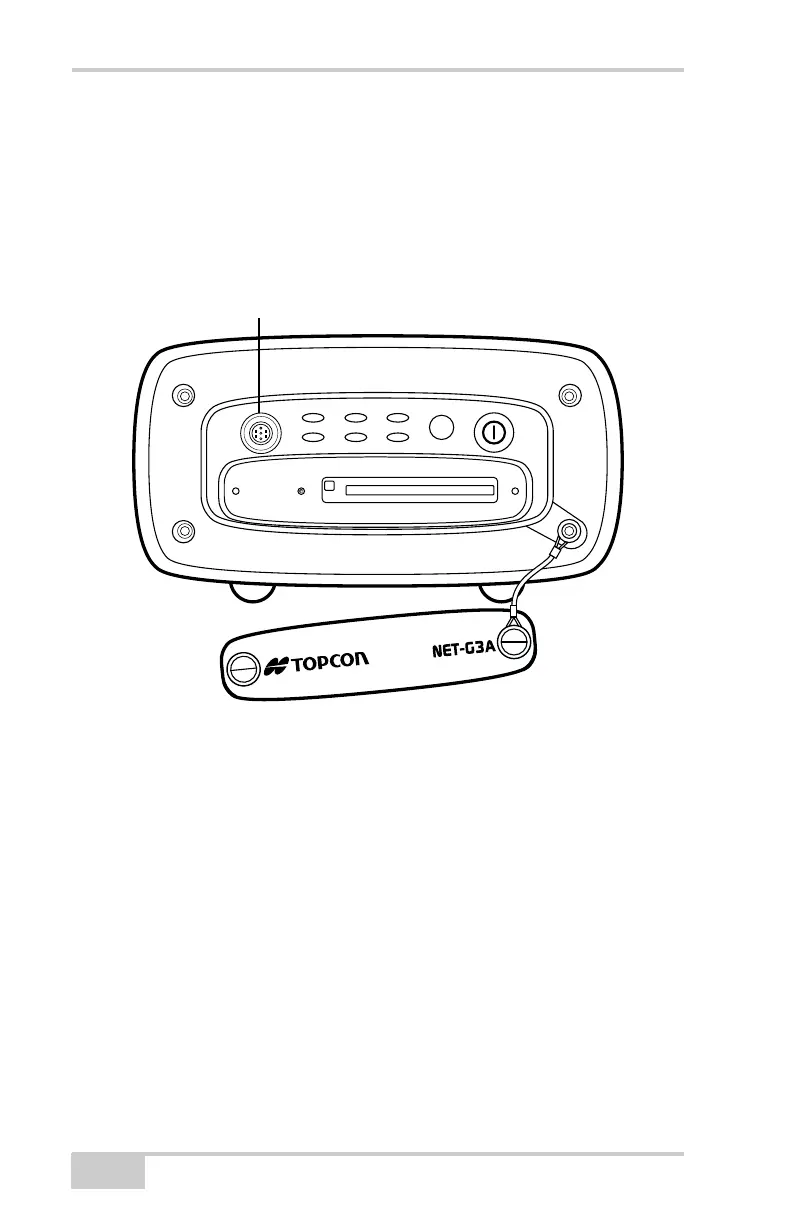

Figure 1-3. Net-G3A Front Panel Ports
The back panel has the following 10 ports (Figure 1-5 on
page 1-16):
• Serial ports (9 pin D-shell connector) – used for communication
between the receiver and an external device.
FN
STAT LINK PWR 1
REC RX/TX PWR 2
Serial Port
