4. ON-DEMAND REMOTE CONTROL FUNCTIONS
To perform Turning, follow the procedure below.
For measurement procedure, see "4.2 Measurement Flow"
1. Point the Remote Controller laser projection
port and prism in the direction of the total
station and instruct the instrument to start
Turning. A laser beam is emitted from the
projection port. At the same time, the
Bluetooth unit (COM 1) relays the instruction
to begin Turning.
2. The total station begins to rotate horizontally,
searching for the emitted laser beam. If it is
not detected by the end of the second rotation,
an error occurs.
3. Once the position of the horizontal direction
has been determined, the total station
telescope then begins to rotate along the
vertical axis searching for the position of the
prism.
4. Once the position of the vertical direction has
been determined an audio sounds and the
total station automatically sights the prism in
the field of view.
5. The total station tracks a sighted prism as it is
moved to the next measurement point when
Auto Tracking is set.

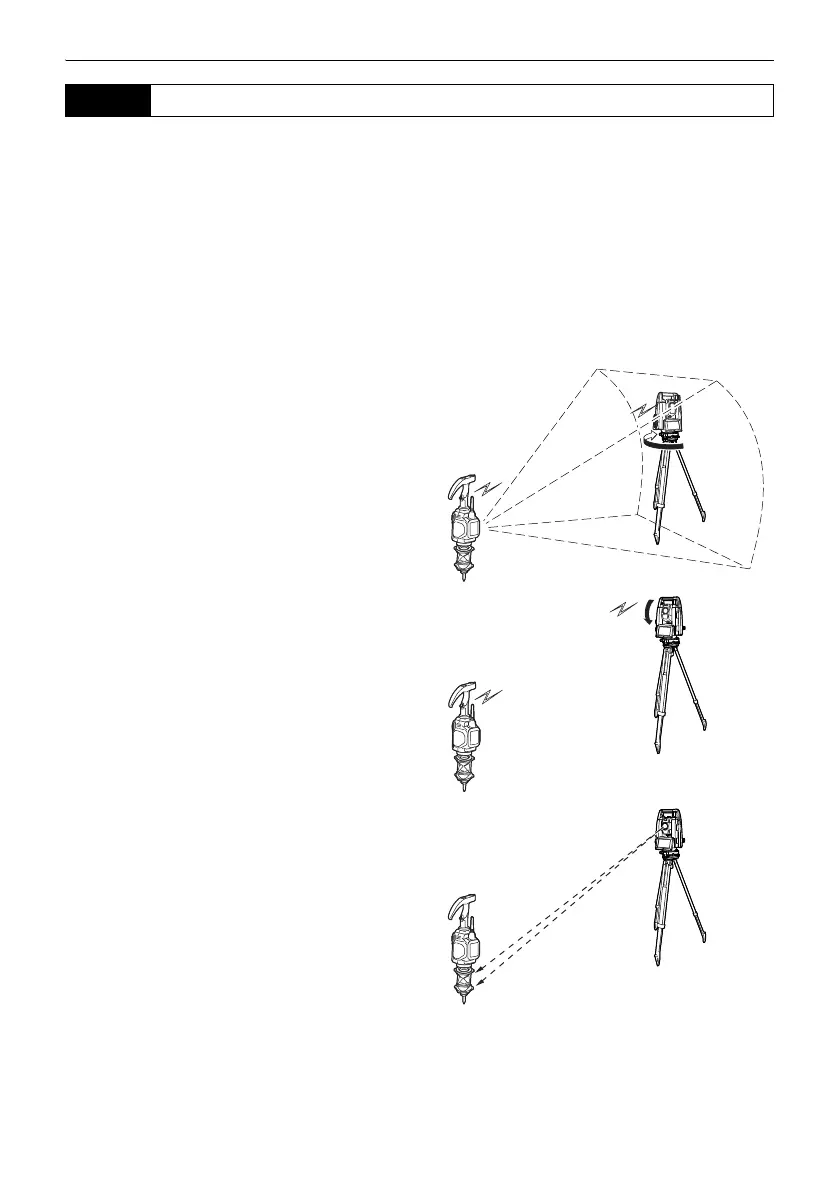

4.1 Turning Operation Flow
