12. EXPLANATION
Sighting can be more accurately performed by facing the 360° Prism toward the total station.
When using the ATP1, the 360° Prism should be set up so that a pair of diametrically-opposed
hexagonal points on its rubber flanges are aligned with the sighting direction of the total station (see
the diagram below).
When using the ATP1SII, the 360° Prism should be set up so that a pair of diametrically-opposed
marks on top of the prism are aligned with the sighting direction of the total station.
12.1 High Accuracy with the 360° Prism

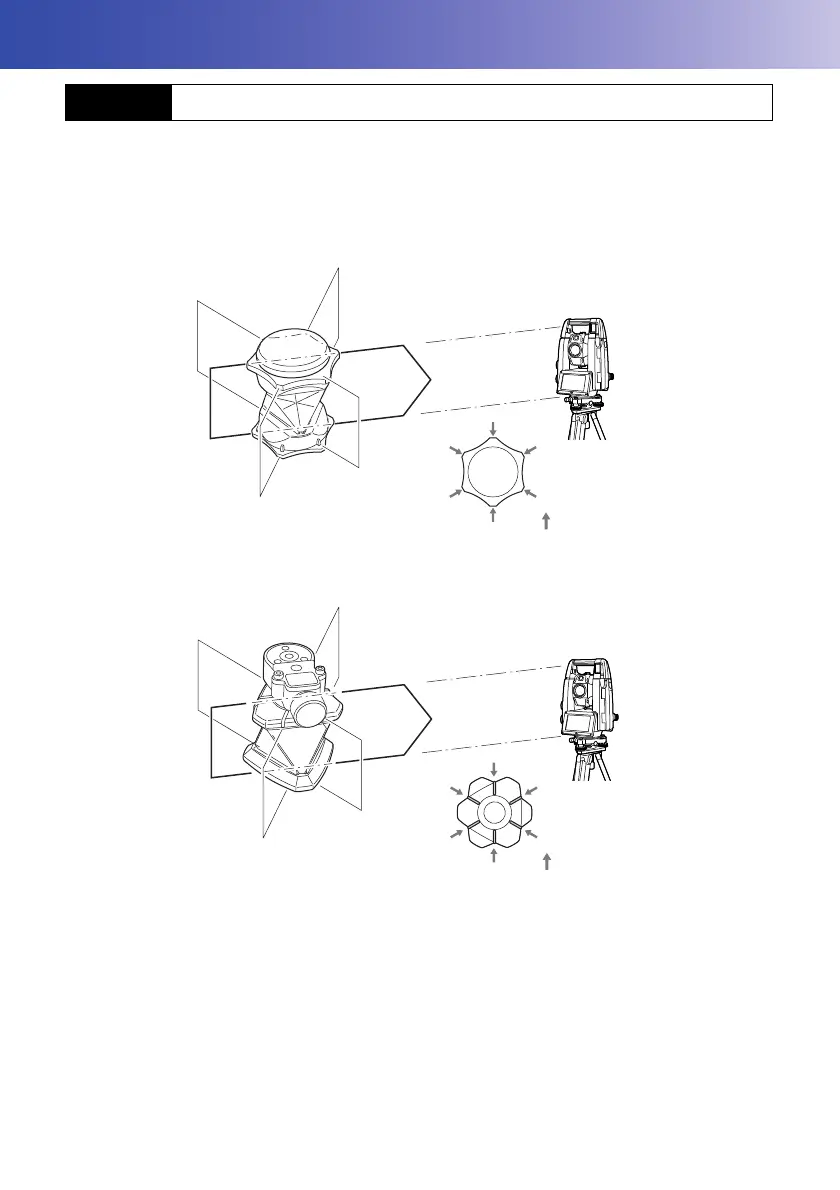

: Hexagonal points
Prism sighting direction
