5. SYSTEM CONFIGURATION
Use a total station that supports Remote Control System.
"HOW TO READ THIS MANUAL Notes regarding manual style"
●
Remote Controller (RC-5A)

• COM1 is for communication with the total station. COM2 is for communication with the data
collector.

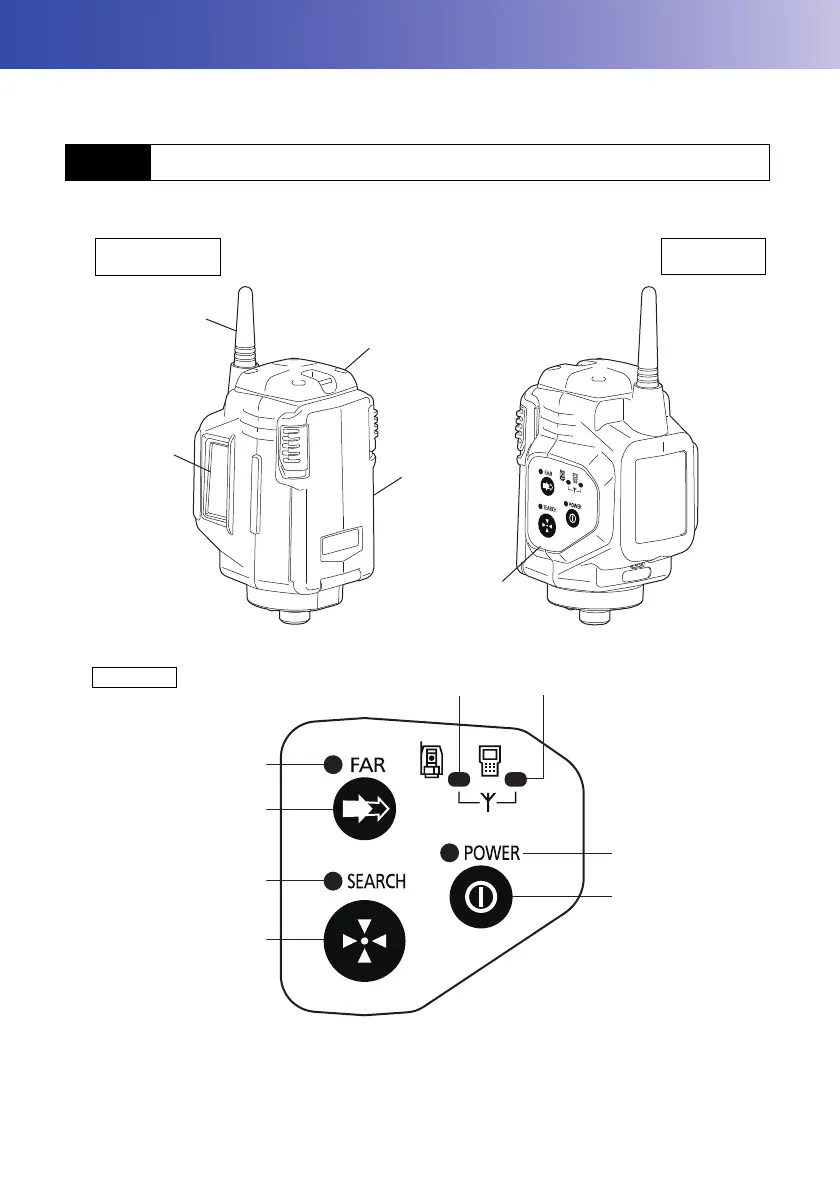

5.1 Parts of the Remote Controller
Control panel
Laser projection
Battery cover
Laser projection
Control panel
side
port
Bluetooth
antenna
Blind cap
port side
FAR button
SEARCH button
POWER button
● COM1 ● COM2
Control panel
● POWER
● SEARCH
● FAR
