Topcon RL-200 2S User Manual

18

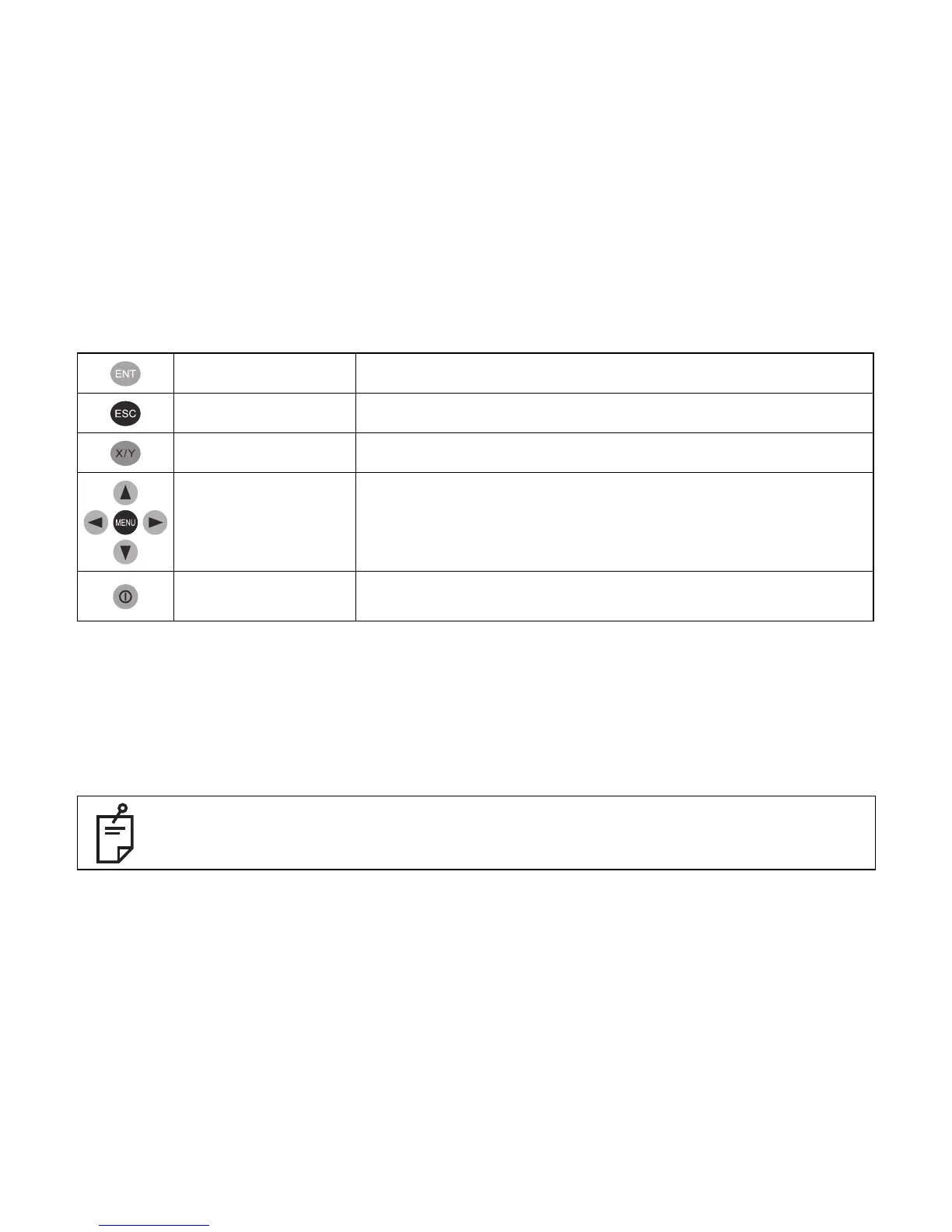

Key Functions
RL-200 2S LED Display
There is an LED that signals auto-leveling of the control panel screen of the main instrument.
Flashing : Auto-leveling or grade setting is in process.
The rotary head is not rotating.
ON solid : Auto-leveling grade setting is complete.
The rotary head is active and emits the laser beam.
Enter key End Operation of Data Input and Sends data to the instrument.
Escape key Cancels input or escape to previous status.
X/Y key Sets each grade axis.
Menu and arrow keys Selects menu items.
Inputs the grades of X Y axis.
Sets the masking direction.
Power switch On/Off of the RL-200 2S and RC-400.
(RC-400 has auto-cut off 60 seconds function)
You can stop the auto-levelling function. Refer to “4) Sensitivity Level” on page 34 to
stop the function.

Topcon RL-200 2S Specifications

General

Brand	Topcon
Model	RL-200 2S
Category	Laser Level
Language	English
